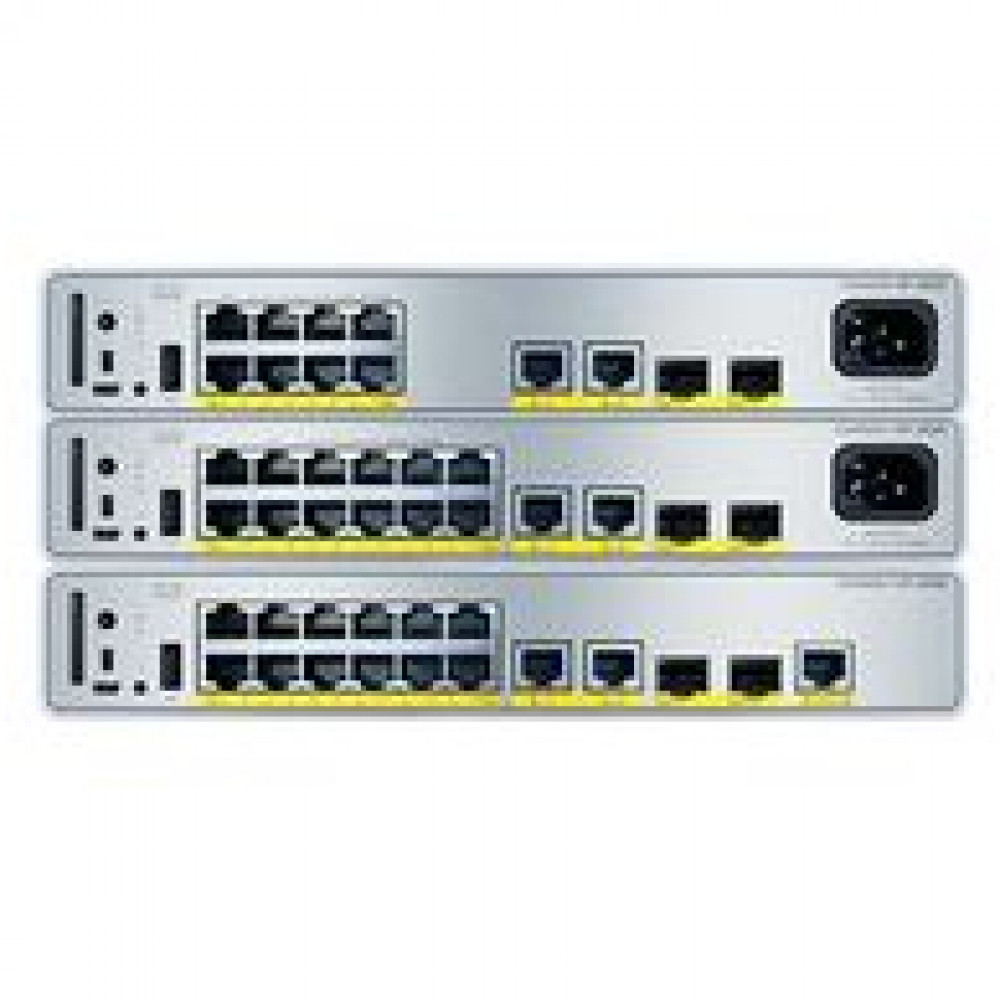

Cisco C9200CX-12P-2X2G-E
Catalyst 9000 Compact Switch 12-Port PoE+, 240W, Essentials
Product Highlights
Deploying enterprise-grade networking in space-constrained locations — retail floors, dormitories, open offices, or branch closets — has traditionally meant compromising on features or tolerating noisy, oversized hardware. The Cisco C9200CX-12P-2X2G-E eliminates that trade-off.
Part of the Cisco Catalyst 9200CX compact series, this fanless, rack-mountable switch delivers 12 Gigabit Ethernet PoE+ ports with a 240W power budget, plus 2x 10G SFP+ and 2x 1G copper fixed uplinks — all in a compact chassis that mounts on a wall, under a desk, or in a shallow rack. It runs Cisco IOS XE with a Network Essentials license, providing Layer 3 routing (OSPF, EIGRP, RIP), advanced QoS, and robust security including AES-256 MACsec encryption.
Powered by the Cisco UADP 2.0 Mini ASIC, the C9200CX-12P-2X2G-E brings the same programmable data plane, streaming telemetry, and Cisco DNA Center integration found across the Catalyst 9000 family. Whether you're powering wireless access points in a university dormitory, connecting point-of-sale terminals in a retail store, or extending your campus network into a small branch office, this compact PoE+ switch delivers enterprise reliability without the noise, bulk, or complexity.
Features & Benefits
Full PoE+ with 240W Budget
All 12 downlink ports support IEEE 802.3at PoE+ at up to 30W per port, with a total switch PoE budget of 240W. This lets you power IP phones, wireless access points, surveillance cameras, and IoT sensors directly from the switch — eliminating the need for separate power adapters and reducing cabling costs.
High-Speed 10G SFP+ Uplinks
Two fixed 10G SFP+ uplink ports provide high-bandwidth fiber connectivity to your distribution or core switches. Combined with two additional 1G copper uplinks, you get flexible, resilient upstream connectivity that can scale with your network demands.
Compact & Fanless Form Factor
The C9200CX-12P-2X2G-E operates silently with zero fan noise, making it ideal for noise-sensitive environments like open offices, classrooms, hospital rooms, and retail counters. Its compact chassis supports wall, ceiling, desk, and rack mounting for maximum deployment flexibility.
Enterprise Security & MACsec
Built-in AES-256 MACsec encryption secures data at the link layer, while Cisco TrustWorthy Solutions protect the integrity of the hardware and software supply chain. Combined with 802.1X authentication, ACLs, and policy-based segmentation, this switch delivers defense-in-depth at the access edge.
Layer 3 Routing & IOS XE
Running Cisco IOS XE with Network Essentials licensing, the switch supports Layer 3 routing protocols including OSPF, EIGRP, and RIP. Model-driven programmability via NETCONF/RESTCONF and YANG data models enables automation at scale, while Cisco DNA Center provides centralized management and assurance.
UADP 2.0 Mini ASIC
Cisco's Unified Access Data Plane 2.0 Mini ASIC delivers a programmable forwarding pipeline with integrated support for Flexible NetFlow, QoS, and streaming telemetry. This future-proofs your investment by enabling new features through software updates without hardware replacement.
Deployment Scenarios
Retail & Point-of-Sale Environments
Deploy the C9200CX-12P-2X2G-E behind checkout counters or in back-of-house areas to power and connect POS terminals, barcode scanners, wireless APs, and security cameras. The fanless design ensures silent operation on the sales floor, while PoE+ eliminates the need for power outlets at each device.
University Dormitories & Classrooms
Provide wired Ethernet connectivity and power to wireless access points in dormitory hallways, classrooms, and common areas. The compact form factor allows wall or ceiling mounting in spaces without traditional wiring closets, and 10G uplinks ensure adequate bandwidth for high-density student traffic.
Small Branch Office / SOHO
Serve as the primary access-layer switch in a small branch or home office, powering IP phones and APs while providing Layer 3 routing to segment traffic. Cisco DNA Center integration enables centralized management from headquarters, reducing the need for on-site IT staff.
Healthcare & Hospitality
Install in patient rooms, nursing stations, or hotel corridors where noise-free operation is essential. PoE+ powers bedside IP phones, nurse-call devices, or guest-room APs, while MACsec encryption protects sensitive patient or guest data traversing the network.
General
Ports & Interfaces
Performance
Power
Physical
Security
Management
Compliance & Warranty
Compatibility Notes
- SFP+ Uplinks: Compatible with Cisco 10G SFP+ transceivers (e.g., SFP-10G-SR, SFP-10G-LR, SFP-10G-LRM) and 1G SFP modules in the SFP+ slots.
- Management: Supports Cisco DNA Center for centralized management and assurance; also manageable via CLI, SNMP, and web GUI.
- Operating System: Ships with Cisco IOS XE. Network Essentials license is included.
- Mounting: Supports rack, wall, ceiling, and desk mounting with appropriate mounting hardware.
- Power: Internal 315W AC power supply. No external power adapter required for AC deployments.
- Note: The C9200CX compact models do not support StackWise stacking. For stacking requirements, consider the standard Cisco Catalyst C9200 or C9200L models.
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| C9200CX-12P-2X2G-A | Catalyst 9200CX 12-Port PoE+ (Network Advantage) | Same hardware; ships with Network Advantage license for advanced features like EIGRP stub, PBR, OSPF multi-area, and full Cisco DNA Advantage capabilities. |
| C9200CX-8P-2X2G-E | Catalyst 9200CX 8-Port PoE+ (Network Essentials) | 8-port PoE+ variant with the same 240W budget and uplink configuration — ideal when fewer access ports are needed. |
| C9200CX-12T-2X2G-E | Catalyst 9200CX 12-Port Data-Only (Network Essentials) | Data-only (non-PoE) version of the same 12-port compact chassis — lower cost when PoE is not required. |
| C9200CX-12P-2XGH-E | Catalyst 9200CX 12-Port PoE+ HVDC (Network Essentials) | HVDC/AC dual-input power supply variant for data center or DC micro-grid deployments requiring high-voltage DC power. |
