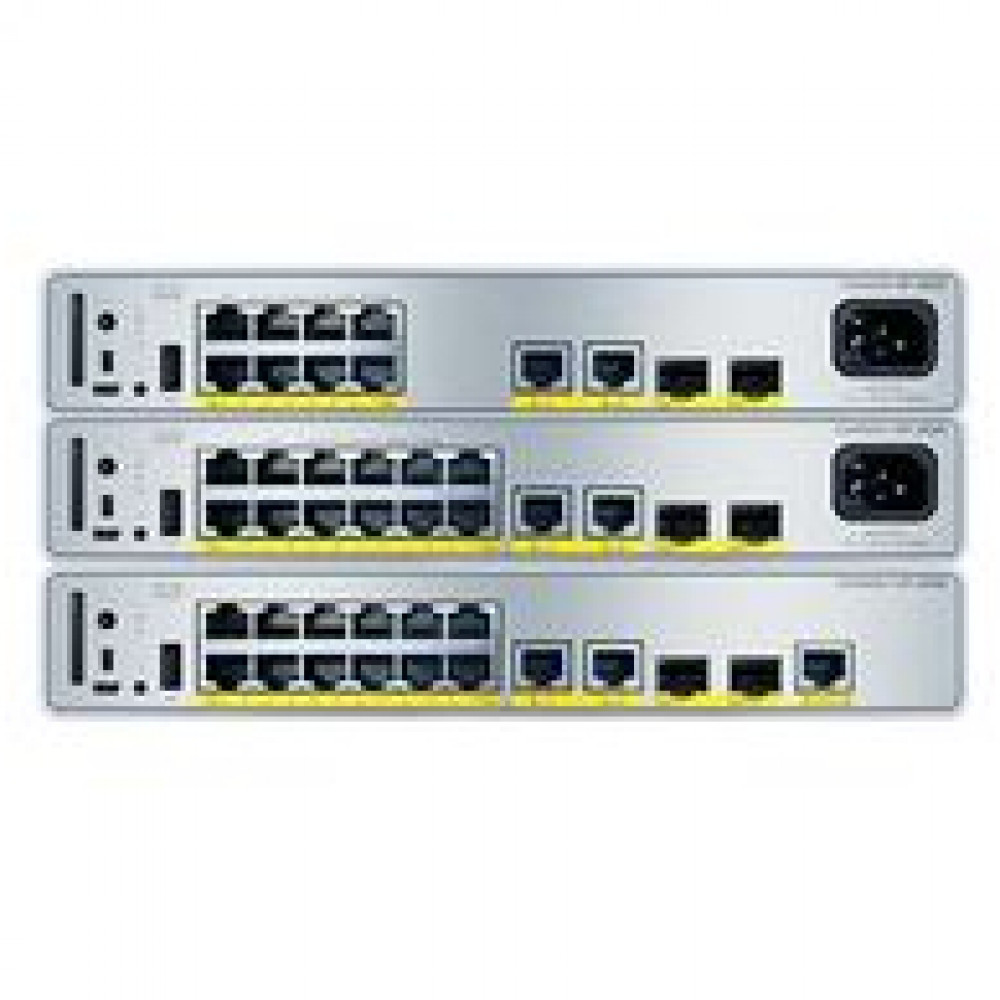

Cisco C9200CX-12P-2XGH-E
Catalyst 9000 Compact Switch 12-Port PoE+, 240W,HVDC,Ess
Product Highlights
Deploying enterprise-grade networking in space-constrained or noise-sensitive environments has always meant compromise — until now. The Cisco C9200CX-12P-2XGH-E is a compact, fanless Catalyst 9200CX Series switch purpose-built for edge locations where traditional rack-mount hardware simply won't fit.
This model delivers 12 Gigabit Ethernet PoE+ downlink ports with a 240W PoE budget, enough to power a full complement of IP phones, wireless access points, security cameras, and IoT sensors at up to 30W per port. Two 10G SFP+ uplinks and two 1G copper uplinks provide high-bandwidth connectivity back to the distribution or core layer, all operating simultaneously.
What sets the C9200CX-12P-2XGH-E apart is its HVDC/AC internal power supply, supporting both 380 VDC high-voltage direct current and standard 100–277 VAC input. This makes it an ideal fit for modern DC microgrid-powered facilities seeking higher energy efficiency by eliminating redundant AC-DC conversions. Running Cisco IOS XE with Network Essentials licensing, the switch supports advanced Layer 3 routing protocols including OSPF, EIGRP, IS-IS, and basic BGP, along with Cisco SD-Access integration, MACsec encryption, and Cisco DNA Center management — delivering full Catalyst 9000 family capabilities in a silent, mountable package.
Features & Benefits
Compact Fanless Design
The C9200CX-12P-2XGH-E features a compact, fanless chassis that operates silently — ideal for open offices, retail counters, hotel rooms, classrooms, and medical workstations. It can be wall-mounted, desk-mounted, ceiling-mounted, or DIN-rail-mounted, eliminating the need for a dedicated IDF closet at remote locations.
Full PoE+ with 240W Budget
All 12 downlink ports support IEEE 802.3at PoE+ at up to 30W per port, backed by a 240W total PoE budget from the internal 315W power supply. This is sufficient to power a full load of access points, IP phones, and surveillance cameras without external power injectors — reducing cabling cost and installation complexity.
HVDC & AC Flexible Power Input
The HVDC-capable internal power supply accepts both 380 VDC and 100–277 VAC, providing investment protection for facilities transitioning to DC microgrid architectures powered by renewable energy. By avoiding multiple AC-DC power conversions, HVDC operation delivers higher energy efficiency and lower operational costs.
10G SFP+ Uplinks
Two fixed 10G SFP+ uplink ports and two 1G copper uplink ports operate simultaneously, providing ample upstream bandwidth for aggregating traffic from all 12 access ports. The SFP+ slots support both 10G SFP+ and 1G SFP optics, offering flexibility as bandwidth requirements evolve.
Layer 3 Routing & SD-Access
With the Network Essentials license, the switch supports OSPF, EIGRP, IS-IS, RIP, and routed access — plus basic BGP from IOS-XE 17.13.1. Cisco SD-Access integration enables policy-based segmentation and automation from edge to cloud, while Cisco DNA Center provides centralized management and assurance.
Enterprise Security
Built on Cisco's Trustworthy Systems architecture, the switch includes Secure Boot, Image Signing, and 128-bit MACsec encryption to protect hardware integrity and encrypt data in transit. Policy-based segmentation and comprehensive ACL support ensure granular access control at the network edge.
Deployment Scenarios
Retail & Hospitality Edge Access
Deploy behind counters, in hotel rooms, or at point-of-sale stations where noise and space are critical constraints. The fanless design and compact form factor deliver enterprise networking without disrupting the customer experience, while PoE+ powers registers, APs, and digital signage.
Smart Building & IoT Infrastructure
Power and connect IoT sensors, IP cameras, LED lighting controllers, and building automation endpoints directly at the edge. The 240W PoE budget and HVDC support align with modern smart building DC microgrid architectures for maximum energy efficiency.
Branch Office & Remote Site
Provide full Catalyst 9000 capabilities at small branches without a dedicated wiring closet. Wall or ceiling mounting, Layer 3 routing, and Cisco Plug and Play (PnP) zero-touch provisioning simplify deployment for lean IT teams managing distributed locations.
Education & Healthcare
Ideal for dormitory rooms, classrooms, patient rooms, and nursing stations where silent operation is essential. PoE+ powers wireless APs and VoIP phones, while MACsec encryption and SD-Access segmentation protect sensitive student and patient data.
General
Interfaces
Performance
Power
Memory
Physical
Environmental
Stacking
Compatibility Notes
Optics Compatibility: The 2x 10G SFP+ uplink slots support Cisco 10G SFP+ and 1G SFP modules. Both SFP+ and copper uplink ports can operate simultaneously.
Software: Runs Cisco IOS XE with Network Essentials license. Basic BGP support requires IOS-XE 17.13.1 or later. SD-Access fabric edge with 25 Access Tunnels requires IOS-XE 17.9.5 or later.
Power Input: Internal 315W HVDC/AC power supply supports 380 VDC and 100–277 VAC (50/60 Hz). For HVDC deployments, the customer or system integrator is responsible for the power cable, as HVDC installations typically use customized cables and connectors.
Stacking: Stacking is not available on C9200CX models. For stacking requirements, consider the C9200 or C9200L series.
Mounting: Compatible with Cisco C9200CX mounting accessories including wall-mount, ceiling-mount, desk-mount, and DIN-rail-mount kits (ordered separately).
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| C9200CX-12P-2X2G-E | Catalyst 9200CX 12-Port PoE+ (AC, Network Essentials) | Same port configuration with standard AC-only internal PSU — choose this if HVDC is not required |
| C9200CX-12P-2XGH-A | Catalyst 9200CX 12-Port PoE+ (HVDC, Network Advantage) | HVDC variant with Network Advantage license — adds full BGP, EIGRP stub, PBR, and advanced features |
| C9200CX-8P-2XGH-E | Catalyst 9200CX 8-Port PoE+ (HVDC, Network Essentials) | 8-port HVDC model — lower port density for smaller deployments at a reduced cost |
| C9200CX-8UXG-2XH-E | Catalyst 9200CX 8-Port UPOE mGig (HVDC, Network Essentials) | 8-port UPOE with 4 mGig ports (up to 10G) — ideal for Wi-Fi 6/6E APs requiring higher power and bandwidth |
