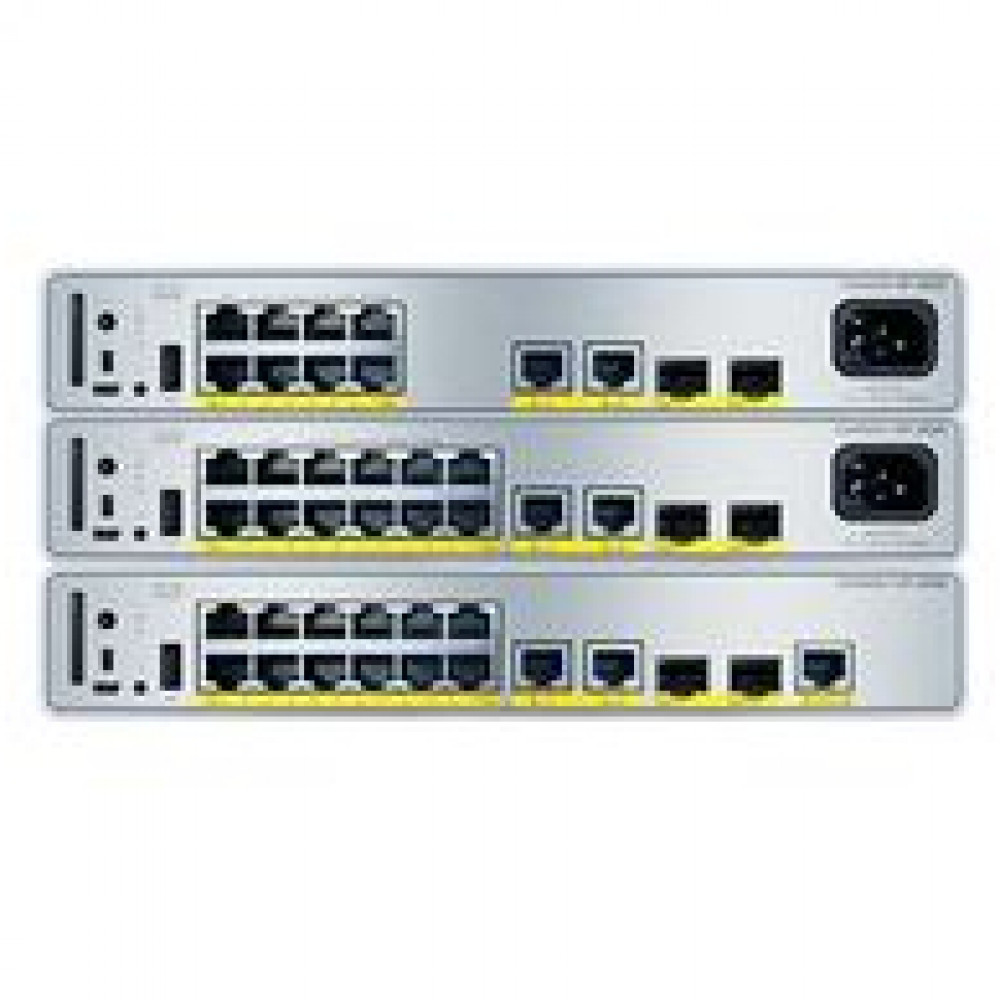

Cisco C9200CX-8P-2X2G-E
Catalyst 9000 Compact Switch 8 port PoE+, 240W, Essentials
Product Highlights
Branch offices, retail locations, and distributed campus environments demand enterprise-grade networking in spaces where a traditional rack-mount switch simply won't fit. The Cisco C9200CX-8P-2X2G-E solves that challenge — delivering the full Catalyst 9000 feature set in a compact, fanless form factor that mounts on a wall, under a desk, or in a ceiling plenum.
This managed Layer 3 switch provides 8 Gigabit Ethernet PoE+ downlink ports backed by a generous 240W PoE budget, making it ideal for powering IP phones, wireless access points, surveillance cameras, and IoT sensors. Upstream connectivity is handled by 2x 10G SFP+ and 2x 1G copper uplinks, all operating simultaneously for high-bandwidth, resilient links back to the distribution or core layer.
Built on Cisco's UADP 2.0 mini ASIC architecture and running Cisco IOS XE Lite, the C9200CX-8P-2X2G-E supports model-driven programmability, advanced security with MACsec encryption, and centralized management through Cisco DNA Center or Meraki cloud monitoring. The included Network Essentials license provides static routing, ACLs, and foundational network services — everything a lean IT team needs to deploy secure, always-on connectivity at the edge without compromise.
Features & Benefits
Compact, Fanless Form Factor
The C9200CX-8P-2X2G-E operates silently with no moving parts, making it ideal for noise-sensitive environments like open offices, classrooms, hospital rooms, and retail floors. Multiple mounting options — wall, ceiling, desk, and rack — give you deployment flexibility that traditional switches cannot match.
Full PoE+ with 240W Budget
All eight 1G downlink ports support IEEE 802.3at PoE+ at up to 30W per port, powered by a 315W internal AC power supply that delivers a 240W available PoE budget. This eliminates the need for separate power injectors or external power adapters when deploying access points, IP phones, and cameras.
High-Speed 10G Uplinks
Two fixed 10G SFP+ uplink ports and two 1G copper uplink ports operate simultaneously, providing ample upstream bandwidth and link redundancy. SFP+ slots accept both 10G SFP+ and 1G SFP optics, giving you flexibility to match your current infrastructure and upgrade path.
Enterprise Security & Trust
Cisco Trustworthy Solutions with Secure Boot, hardware Trust Anchor, and MACsec (802.1AE) encryption protect the integrity of the switch hardware, software image, and all data traversing the network. Advanced segmentation capabilities help enforce zero-trust policies at the access edge.
Programmability & Management
Running Cisco IOS XE Lite, this switch supports NETCONF/RESTCONF, YANG models, and streaming telemetry for modern NetDevOps workflows. Manage it through Cisco DNA Center for intent-based automation, the Meraki cloud dashboard for simplified visibility, or traditional CLI and web GUI.
Network Essentials License
Ships with the Cisco Network Essentials license tier, providing Layer 3 static routing, standard ACLs, QoS, and essential network services. This perpetual license covers the foundational features most branch and edge deployments require, with an optional upgrade path to Network Advantage for advanced routing protocols.
Deployment Scenarios
Branch Office & Small Business Access
Deploy the C9200CX-8P-2X2G-E in branch offices or small business locations where a handful of PoE endpoints — IP phones, a wireless AP, and a security camera — need enterprise-grade connectivity. The compact, fanless design fits in a wall cabinet or under a desk, and 10G uplinks ensure the branch isn't a bandwidth bottleneck.
Retail & Point-of-Sale Environments
Mount the switch behind a checkout counter or in a back-office closet to power PoE-enabled POS terminals, barcode scanners, and in-store Wi-Fi access points. Silent operation and a small footprint make it unobtrusive in customer-facing spaces.
University Dormitories & Classrooms
Provide wired Ethernet drops and PoE-powered wireless APs in dormitory rooms, lecture halls, or study areas. The fanless design eliminates noise complaints, and the 240W PoE budget supports multiple access points and IP devices per switch.
Healthcare & Clinical Spaces
Place the switch in patient rooms, nursing stations, or mobile clinics where silence is critical and PoE powers medical devices, nurse-call systems, and bedside IP phones. MACsec encryption helps protect sensitive patient data at the access edge.
General
Ports & Interfaces
Power over Ethernet
Performance
Capacity
Power Supply
Security
Other Features
Compatibility Notes
Uplink Optics: The 2x 10G SFP+ uplink slots support Cisco 10G SFP+ and 1G SFP transceiver modules. Common compatible optics include SFP-10G-SR, SFP-10G-LR, SFP-10G-LRM, GLC-LH-SMD, and GLC-SX-MMD. Verify optic compatibility with the Cisco Transceiver Compatibility Matrix for the Catalyst 9200 Series.
Software: Runs Cisco IOS XE Lite. Consult Cisco's release notes for the recommended software version for your deployment.
Licensing: Ships with Network Essentials (perpetual). Upgradeable to Network Advantage via Cisco Smart Licensing for advanced Layer 3 routing features (OSPF, EIGRP, IS-IS, PBR, etc.).
Mounting: Supports wall mount, ceiling mount, desk mount, and rack mount (with appropriate mounting kit). Confirm mounting accessories are included or ordered separately.
Stacking: Stacking is not available on C9200CX compact models.
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| C9200CX-8P-2X2G-A | Catalyst 9200CX 8-Port PoE+ (Network Advantage) | Same hardware; Network Advantage license adds OSPF, EIGRP, IS-IS, PBR, and advanced Layer 3 routing features. |
| C9200CX-12P-2X2G-E | Catalyst 9200CX 12-Port PoE+ (Network Essentials) | Adds 4 more 1G PoE+ downlink ports (12 total) with the same 240W PoE budget and uplink configuration. |
| C9200CX-8P-2XGH-E | Catalyst 9200CX 8-Port PoE+ HVDC (Network Essentials) | Identical networking capabilities but supports High Voltage DC power input in addition to AC, for DC microgrid deployments. |
| C9200L-24P-4X-E | Catalyst 9200L 24-Port PoE+ (Network Essentials) | Traditional rack-mount form factor with 24 PoE+ ports and 4x 10G uplinks; choose when port density exceeds 12 endpoints. |
