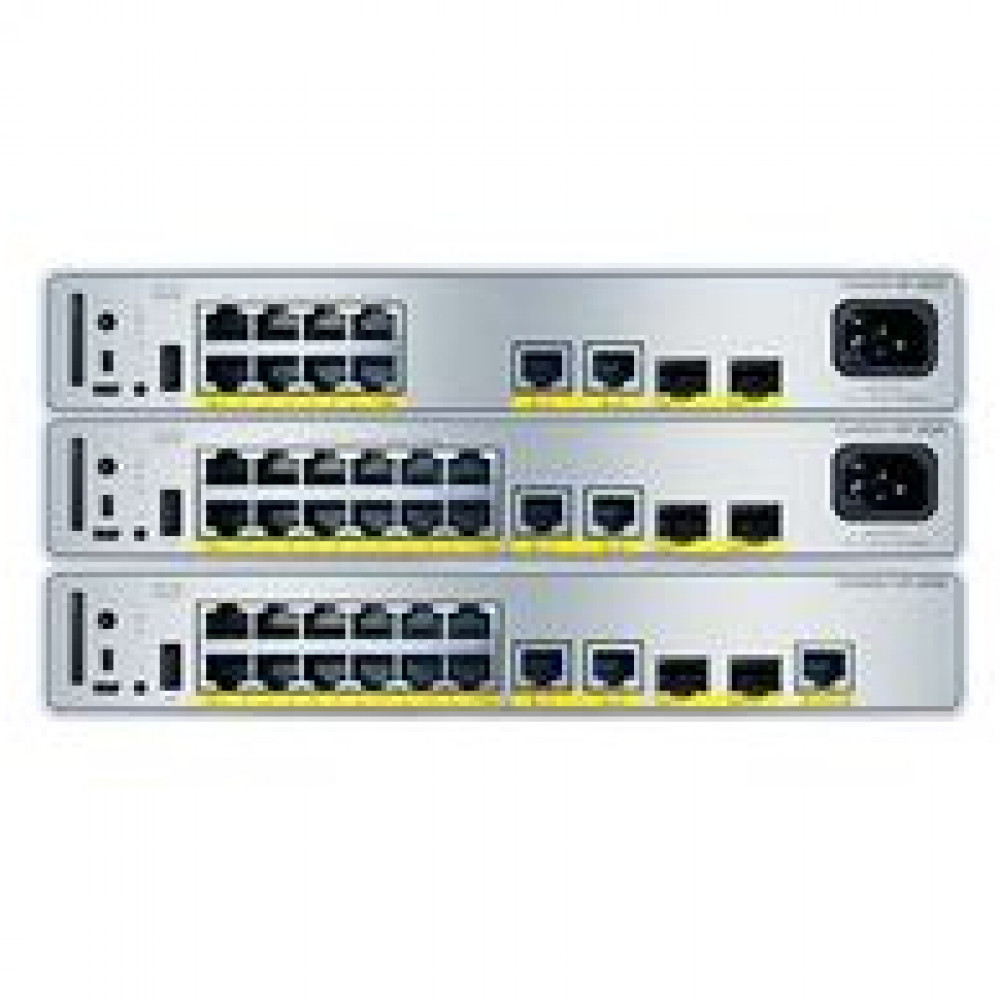

Cisco C9200CX-12P-2X2G-A
Catalyst 9000 Compact Switch 12 port PoE+, 240W, Adv
Product Highlights
When your deployment demands enterprise-class networking in a space where a traditional rack-mount switch simply won't fit, the Cisco C9200CX-12P-2X2G-A delivers the answer. This compact, fanless Catalyst 9200CX switch provides 12 Gigabit Ethernet PoE+ access ports, two 10G SFP+ uplinks, and two 1G copper uplinks — all in a form factor small enough to mount on a wall, tuck under a desk, or place on a retail counter.
With a 240W PoE budget, the C9200CX-12P-2X2G-A powers wireless access points, IP phones, IP cameras, and IoT sensors without external power injectors. Its fanless, zero-noise design makes it ideal for open offices, classrooms, hospital rooms, and point-of-sale environments where acoustic comfort matters. The 315W internal AC power supply keeps the deployment clean — no external power brick required.
Shipping with the Cisco Network Advantage perpetual license, this switch unlocks advanced Layer 3 routing capabilities including BGP — a feature unique to the C9200CX within the Catalyst 9200 family. Built on the UADP 2.0 Mini ASIC and running Cisco IOS XE, it supports model-driven programmability, streaming telemetry, and management through Cisco Catalyst Center or Meraki cloud monitoring. Whether you're extending intent-based networking to a branch office, refreshing a campus access layer, or deploying IoT infrastructure, the C9200CX-12P-2X2G-A provides enterprise security, automation, and performance in a compact package.
Features & Benefits
Compact Fanless Design
The C9200CX-12P-2X2G-A operates silently with no moving parts, dissipating heat through a built-in heat sink. This makes it perfect for noise-sensitive environments such as open-plan offices, classrooms, retail counters, and hospital rooms where traditional rack-mount switches are impractical.
Full PoE+ with 240W Budget
All 12 access ports support IEEE 802.3at PoE+ at up to 30W per port, sharing a 240W total PoE budget. Power wireless access points, VoIP phones, surveillance cameras, and IoT devices without running separate power cables — reducing installation cost and complexity.
High-Speed 10G SFP+ Uplinks
Two fixed 10G SFP+ uplink ports provide high-bandwidth connections to your distribution or core layer, supporting both 1G SFP and 10G SFP+ optics. Combined with two additional 1G copper uplinks, the switch offers flexible and redundant upstream connectivity.
Network Advantage License
The "-A" SKU ships with Cisco's perpetual Network Advantage license, unlocking advanced Layer 3 routing features including BGP, OSPF, EIGRP, and policy-based segmentation. On the C9200CX platform, Network Advantage uniquely includes BGP — unavailable on other Catalyst 9200 models.
Enterprise-Grade Security
Built-in Cisco TrustWorthy technology with hardware Trust Anchor ensures the integrity of the switch hardware and software. AES-256 MACsec encryption protects data in transit on the wire, while features like DHCP snooping, dynamic ARP inspection, and ACLs provide comprehensive threat defense at the access layer.
Programmability & Automation
Running Cisco IOS XE on the UADP 2.0 Mini ASIC, the switch supports model-driven programmability via NETCONF/RESTCONF, streaming telemetry, and zero-touch provisioning. Manage it through Cisco Catalyst Center, Meraki cloud monitoring, or traditional CLI — giving your operations team full flexibility.
Deployment Scenarios
Branch Office & Remote Site Access
Deploy the C9200CX-12P-2X2G-A at small branch offices or remote sites where space is limited and IT staff are not on-site. Its compact form factor, fanless operation, and 10G uplinks provide enterprise-grade connectivity, while Cisco Catalyst Center or Meraki cloud monitoring enables centralized management from headquarters.
Open Workspace & Classroom
Mount the switch under a desk or on a wall in open offices, classrooms, or conference rooms where silence is essential. PoE+ powers wireless access points and IP phones directly, eliminating cable clutter and external power adapters while maintaining a professional, quiet environment.
Retail & Hospitality Point-of-Sale
Place the switch behind a checkout counter or in a retail back room to power PoE-enabled POS terminals, IP cameras, and Wi-Fi access points. The compact, fanless design fits discreetly into customer-facing spaces, and the Network Advantage license provides the segmentation needed to isolate PCI-sensitive traffic.
IoT & Smart Building Edge
Use the C9200CX-12P-2X2G-A as an IoT edge switch to connect and power sensors, smart lighting controllers, and building automation endpoints. Its PoE+ budget handles diverse IoT power requirements, while Layer 3 routing and segmentation keep IoT traffic isolated from the corporate network.
General
Ports & Interfaces
Performance
Power over Ethernet
Power Supply
Physical
Environmental
Stacking
Compatibility Notes
Uplink Optics: The two 10G SFP+ ports accept both 1G SFP and 10G SFP+ transceivers. Verify specific transceiver compatibility at Cisco's Transceiver Compatibility Matrix. Transceivers are sold separately.
Stacking: The C9200CX compact models do not support StackWise stacking. Each unit operates as a standalone switch. If stacking is required, consider the Cisco Catalyst C9200L or C9200 modular series.
Management: Compatible with Cisco Catalyst Center (formerly DNA Center) and Meraki cloud monitoring for centralized management and automation.
Operating System: Ships with Cisco IOS XE.
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| C9200CX-12P-2X2G-E | Catalyst 9200CX 12-Port PoE+ (Network Essentials) | Same hardware but ships with Network Essentials license — lacks BGP and advanced Layer 3 routing features included in the -A SKU. |
| C9200CX-8P-2X2G-A | Catalyst 9200CX 8-Port PoE+ (Network Advantage) | Same uplinks, PoE budget, and license tier but with 8 PoE+ access ports instead of 12 — suited for smaller port-count deployments. |
| C9200CX-12P-2XGH-A | Catalyst 9200CX 12-Port PoE+ HVDC (Network Advantage) | Same port configuration and license but with HVDC/AC power supply — designed for deployments requiring high-voltage DC input. |
| C9200L-24P-4G-A | Catalyst 9200L 24-Port PoE+ (Network Advantage) | Full 1U rack-mount switch with 24 PoE+ ports and StackWise-160 support — choose this when you need higher port density and stacking. |
