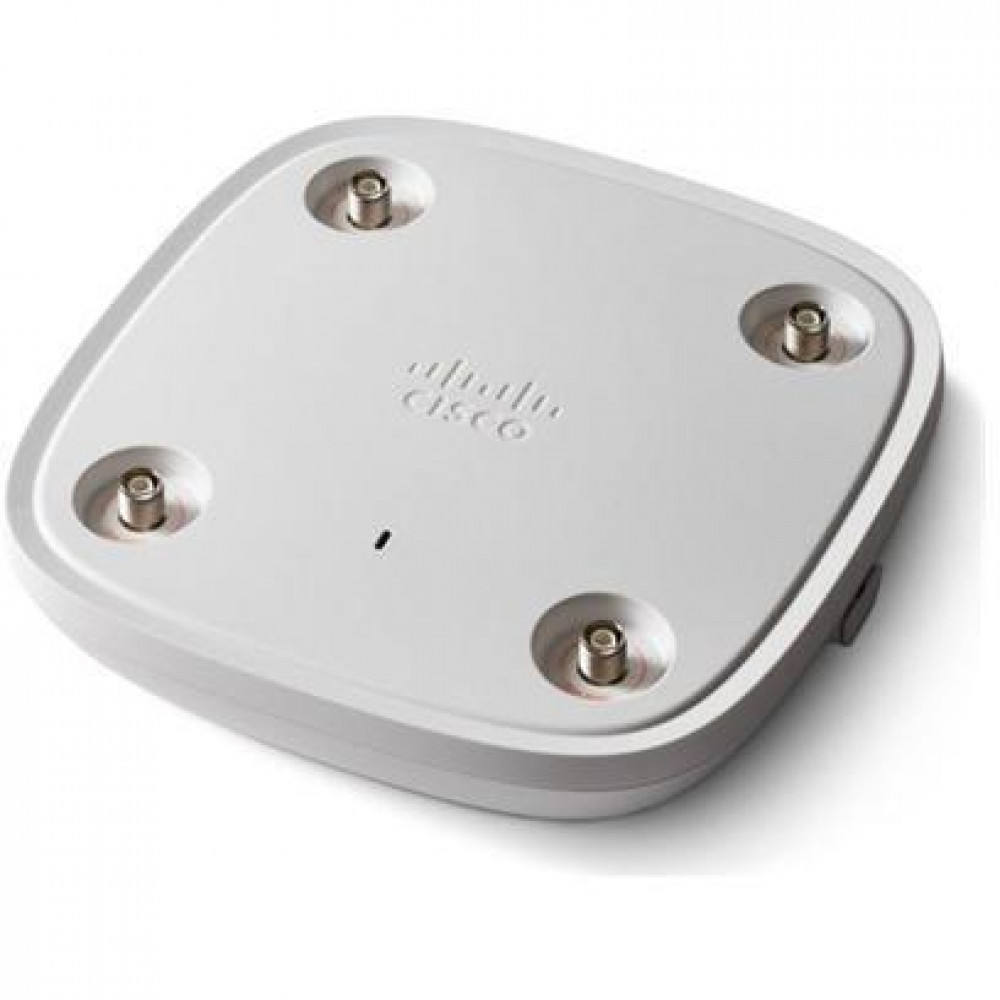

Cisco C9120AXE-B
C9120AX External 802.11ax 4x4:4 MIMO;IOT;BT5;mGig;USB;RHL
Product Highlights
What's Included
*Power Adapter not included
As wireless device density continues to climb, enterprise networks need access points that can keep pace without compromising security or manageability. The Cisco C9120AXE-B Catalyst 9120AX Series Access Point delivers Wi-Fi 6 (802.11ax) performance with external antennas, giving network architects full control over RF coverage in challenging indoor environments.
Built around a 4x4:4 MU-MIMO architecture with OFDMA scheduling, the C9120AXE-B supports aggregate PHY data rates up to 5.38 Gbps and features a Multigigabit Ethernet uplink (100M/1G/2.5G) to prevent wired-side bottlenecks. Its Flexible Radio Assignment allows dual 5 GHz operation or dedicated wireless security monitoring, while an integrated Bluetooth 5.0 radio and USB port extend the platform into IoT and edge-compute use cases.
The C9120AXE-B is the external-antenna variant in the B regulatory domain, designed for deployments where directional, omnidirectional, or specialty antennas are needed to shape coverage precisely. It supports Cisco's Smart Antenna (DART) connector and Self-Identifying Antennas (SIA) for simplified provisioning. Paired with Cisco DNA Software and managed by the Cisco Catalyst 9800 Series Wireless Controllers, this access point delivers real-time analytics, automated policy enforcement, and SD-Access fabric integration — making it an ideal building block for intent-based wireless networks of any scale.
Features & Benefits
Wi-Fi 6 Performance
The C9120AXE-B leverages 802.11ax with uplink and downlink OFDMA, MU-MIMO, BSS coloring, and Target Wake Time to deliver higher throughput and lower latency in dense client environments. With four spatial streams and up to 160 MHz channel width on 5 GHz, it achieves aggregate PHY rates up to 5.38 Gbps — ensuring bandwidth-hungry applications like 4K/8K video and real-time collaboration perform flawlessly.
External Antenna Flexibility
Unlike internal-antenna models, the C9120AXE-B features a 4-port Smart Antenna (DART) connector that supports Cisco's Self-Identifying Antennas (SIA) as well as traditional RP-TNC antennas via the AIR-CAB002-DART-R= adapter cable. This gives RF engineers the freedom to select antenna patterns — omnidirectional, directional, or patch — tailored to each deployment zone. The C9120AXE is certified for use with antenna gains up to 6 dBi on both 2.4 GHz and 5 GHz bands.
Flexible Radio Assignment
The Cisco RF ASIC enables Flexible Radio Assignment, allowing the XOR radio to operate on either 2.4 GHz or 5 GHz. This means you can run dual 5 GHz serving radios for maximum client capacity, or dedicate a radio to Wireless Intrusion Prevention System (wIPS) monitoring and spectrum analysis — adapting to your security and performance priorities without additional hardware.
IoT & Edge Compute Ready
With integrated Bluetooth 5.0, a USB port, and container support for edge applications, the C9120AXE-B extends beyond traditional Wi-Fi. Deploy location-aware services, asset tracking, and IoT sensor connectivity directly from the access point. The USB interface enables edge computing capabilities for IoT applications hosted on the AP itself.
Cisco DNA & SD-Access Integration
Paired with Cisco DNA Software, the C9120AXE-B unlocks real-time network analytics, Intelligent Capture for troubleshooting, and automated policy enforcement through SD-Access. This transforms the AP from a simple radio into a sensor-rich node in your intent-based network, reducing mean time to resolution and simplifying Day-2 operations.
Enterprise-Grade Security
Cisco Trust Anchor Technologies provide hardware authenticity assurance with image signing, Secure Boot, and a dedicated Trust Anchor module. Combined with WPA3 support, encrypted traffic analytics, and Cisco Identity Services Engine (ISE) integration, the C9120AXE-B delivers a zero-trust security posture from the wireless edge.
Deployment Scenarios
High-Density Enterprise Campus
Deploy the C9120AXE-B in open-plan offices, conference centers, or lecture halls where hundreds of concurrent clients demand reliable, low-latency connectivity. External antennas allow precise RF tuning to minimize co-channel interference across dense AP deployments.
Warehouse & Industrial Environments
The external antenna design makes the C9120AXE-B ideal for warehouses, manufacturing floors, and logistics hubs where high ceilings and metal structures require directional or high-gain antennas. Integrated IoT radios support barcode scanners, asset tags, and BLE beacons on the same infrastructure.
Healthcare Facilities
Hospitals and clinics benefit from the C9120AXE-B's ability to support mission-critical medical devices, real-time location services (RTLS) via Bluetooth 5, and secure guest access — all managed through a single Cisco DNA dashboard with granular policy control.
Education & Large Venues
Universities and event venues can leverage Wi-Fi 6's OFDMA and Target Wake Time to efficiently serve thousands of devices simultaneously while preserving battery life on student and attendee devices. Flexible Radio Assignment enables dual 5 GHz operation for maximum capacity during peak usage.
General
Wireless
Networking
IoT & Connectivity
Security
Memory
Physical
Environmental
Software & Management
Compatibility Notes
Supported Wireless LAN Controllers:
- Cisco Catalyst 9800 Series Wireless Controllers
- Cisco 3500, 5520, and 8540 Series Wireless Controllers
- Cisco Virtual Wireless Controller
Software Requirements:
- Cisco IOS XE Software Release 16.11 with AP Device Pack, or later
- Cisco Unified Wireless Network Software Release 8.9.x or later (for legacy controllers)
External Antennas:
- Supports Cisco Self-Identifying Antennas (SIA) via 4-port DART connector
- Requires AIR-CAB002-DART-R= (sold separately) when using antennas with RP-TNC connectors
- Certified for antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
Power:
- 802.3at (PoE+), 802.3bt (Cisco UPOE / UPOE+)
- Cisco Power Injector AIR-PWRINJ5= (sold separately, supports 802.3af only)
- Power adapter not included
Regulatory Domain: B domain — verify country-specific approval before deployment.
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| C9120AXI-B | Catalyst 9120AXI (Internal Antenna, B Domain) | Internal antenna variant — ideal for standard office environments where external antenna customization is not required. |
| C9120AXP-B | Catalyst 9120AXP (Professional External Antenna, B Domain) | Professional-install external antenna model certified for higher antenna gains up to 13 dBi — suited for specialized high-gain deployments. |
| C9130AXE-B | Catalyst 9130AX (External Antenna, B Domain) | Next-generation Catalyst 9130 with Wi-Fi 6 tri-radio architecture and enhanced capacity — consider for new deployments requiring the latest platform. |
| C9115AXE-B | Catalyst 9115AXE (External Antenna, B Domain) | Lower-cost Wi-Fi 6 AP with 2x2:2 MIMO — suitable for lower-density areas where 4x4 MIMO is not required. |
