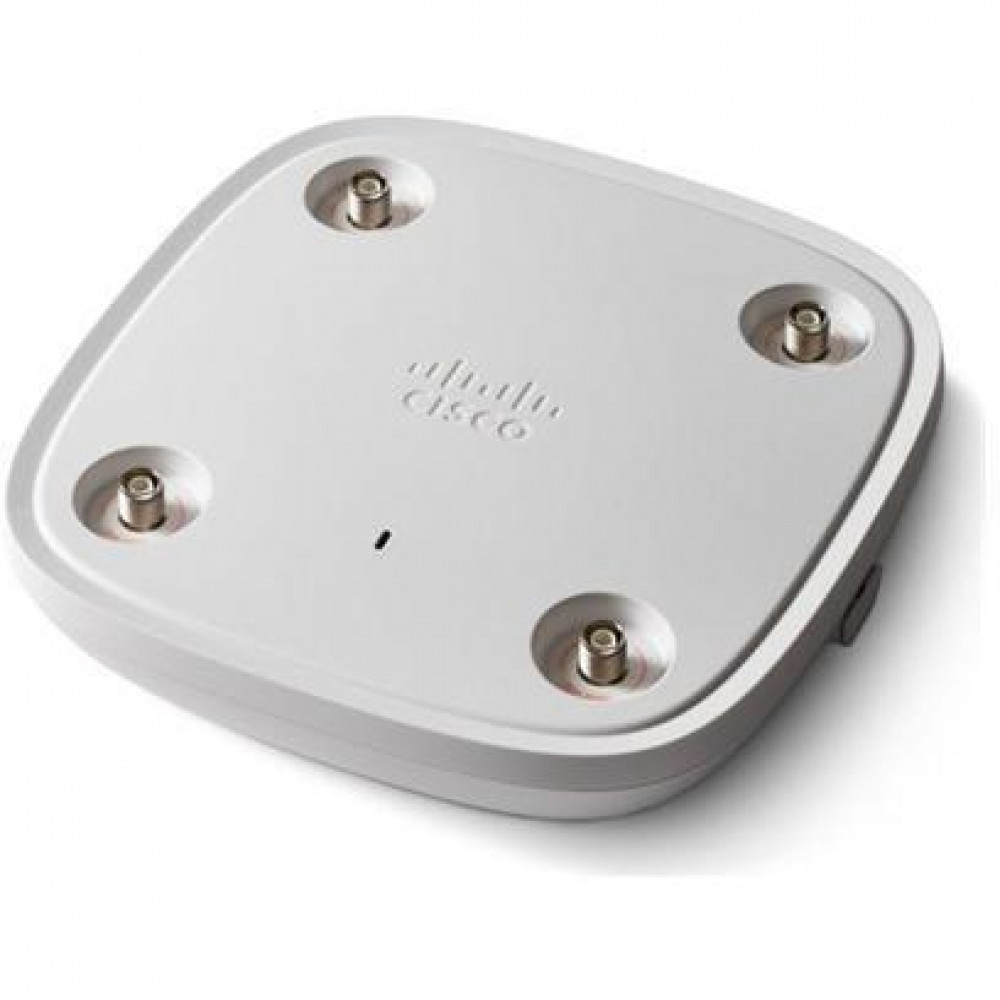

Cisco C9130AXE-B
Cisco Catalyst 9130AX Series
Product Highlights
What's Included
*Power Adapter not included
As wireless networks become the backbone of modern enterprise operations, deploying access points that can handle surging device density and bandwidth-hungry applications is no longer optional — it's critical.
The Cisco C9130AXE-B is part of the Cisco Catalyst 9130AX Series, a next-generation enterprise Wi-Fi 6 (802.11ax) access point built for high-density indoor environments. Featuring external antennas and 4x4:4 MU-MIMO, this model provides the flexibility to tailor RF coverage for challenging spaces such as warehouses, auditoriums, convention centers, and industrial facilities. The "-B" suffix designates the USA regulatory domain, ensuring out-of-the-box compliance for North American deployments.
The C9130AXE-B supports up to four Wi-Fi radios — including a 5 GHz flexible radio that can operate as a single 8x8 or dual 4x4 configuration — alongside a dedicated 2.4 GHz radio and the Cisco RF ASIC for advanced spectrum intelligence. OFDMA and MU-MIMO technologies work together to serve large numbers of clients simultaneously with reduced latency. A Multigigabit Ethernet uplink (up to 5 Gbps) ensures the wired backhaul keeps pace with wireless throughput.
Managed by Cisco Catalyst 9800 Series Wireless Controllers and integrated with Cisco DNA Software for analytics, automation, and security, the C9130AXE-B is an ideal choice for organizations seeking a resilient, intelligent, and scalable wireless infrastructure.
Features & Benefits
Wi-Fi 6 (802.11ax) Performance
The C9130AXE-B is Wi-Fi 6 certified, supporting 802.11ax on both 2.4 GHz and 5 GHz bands. OFDMA and MU-MIMO enable efficient, simultaneous communication with many clients — reducing latency and boosting aggregate throughput in crowded environments.
Flexible Radio Assignment (FRA)
The 5 GHz flexible radio can operate as a single 8x8 radio for maximum per-client throughput or split into dual 4x4 radios for expanded coverage. This adaptability lets the AP dynamically respond to RF conditions and traffic demands without manual intervention.
External Antenna Flexibility
Unlike the internal-antenna C9130AXI model, the C9130AXE-B uses external antennas via a Smart antenna connector with an 8-DART interface. This allows IT teams to select directional, omnidirectional, or specialty antennas to precisely shape coverage for unique environments such as warehouses, stadiums, or industrial facilities.
Cisco RF ASIC & CleanAir
The integrated Cisco RF ASIC is a fully software-defined radio that delivers advanced spectrum analysis. CleanAir technology identifies and classifies over 20 types of RF interference, while the built-in Wireless Intrusion Prevention System (WIPS) provides proactive threat detection.
Multigigabit Ethernet Uplink
The AP features a Multigigabit Ethernet (RJ-45) uplink supporting 100 Mbps, 1 Gbps, 2.5 Gbps, and 5 Gbps speeds. This ensures the wired backhaul can keep pace with the high wireless throughput delivered by Wi-Fi 6, even over existing Category 5e cabling at 2.5 Gbps.
IoT & Location Services Ready
An embedded Bluetooth Low Energy (BLE) radio supports IoT use cases including asset tracking, wayfinding, and proximity-based services. Combined with the Cisco RF ASIC and USB 2.0 port, the C9130AXE-B serves as a converged wireless and IoT platform.
Deployment Scenarios
High-Density Venues & Large Open Areas
Auditoriums, convention centers, cafeterias, and arenas demand access points that can serve hundreds of concurrent clients without degradation. The C9130AXE-B's OFDMA, MU-MIMO, and flexible radio architecture deliver consistent performance under heavy load, while external antennas allow precise coverage shaping for large open spaces.
Warehouse & Industrial Environments
Facilities with high ceilings, metal racking, and challenging RF conditions benefit from the C9130AXE-B's external antenna design. IT teams can select antennas optimized for directional or long-range coverage, and the extended operating temperature range (-20°C to 50°C) supports deployment in non-climate-controlled spaces.
Enterprise Campus Access Layer
As part of a Cisco Software-Defined Access (SD-Access) architecture managed by Catalyst 9800 Series controllers, the C9130AXE-B provides secure, policy-driven wireless connectivity across campus buildings. Cisco DNA integration enables centralized analytics, assurance, and automated troubleshooting.
Healthcare & Education Facilities
Hospitals and university campuses with diverse device populations — from laptops and tablets to medical IoT sensors — require reliable, low-latency wireless. The C9130AXE-B's Wi-Fi 6 efficiency features like Target Wake Time (TWT) extend battery life on connected devices while maintaining responsive connectivity.
General
Radio & Wireless
Interfaces
Power
Software
Physical
Environmental
Compatibility Notes
Wireless LAN Controllers:
- Cisco Catalyst 9800 Series Wireless Controllers (recommended)
- Cisco 3504, 5520, and 8540 Wireless Controllers
- Cisco Virtual Wireless Controller
Minimum Software:
- Cisco Unified Wireless Network Software Release 8.10MR1 or later
- Cisco IOS XE Software Release 17.1.1s or later
Power Requirements:
- 802.3at (PoE+) — full feature operation (recommended)
- 802.3af — reduced radio mode (1x1 on both bands, Ethernet downgraded to 1 GbE, USB disabled)
- Cisco Universal PoE (UPOE)
- Compatible power injectors: AIR-PWRINJ6= (802.3at) or AIR-PWRINJ5= (802.3af)
- Power adapter is NOT included
External Antennas (sold separately):
- Requires external antennas connected via Smart antenna connector (8-DART interface)
- Use AIR-CAB002-D8-R= adapter cable for antennas with RP-TNC connectors
- Use AIR-CAB003-D8-N= for the AIR-ANT2513P4M-N= antenna
Important: Always connect antennas before powering on the AP. Enabling radios without antennas connected can result in damage to the access point.
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| C9130AXI-B | Cisco Catalyst 9130AX (Internal Antenna, B Domain) | Same platform with integrated internal antennas — ideal for standard office environments where external antenna customization is not required. |
| C9130AXE-H | Cisco Catalyst 9130AX (External Antenna, H Domain) | Identical hardware to the C9130AXE-B but configured for the H regulatory domain — select based on your country's regulatory requirements. |
| C9120AXI-B | Cisco Catalyst 9120AX (Internal Antenna, B Domain) | Lower-tier Wi-Fi 6 AP in the Catalyst 9100 family — fewer spatial streams and no flexible radio, suited for standard-density deployments at a lower cost. |
| C9136I-B | Cisco Catalyst 9136I (Internal Antenna, B Domain) | Next-generation Wi-Fi 6E AP with tri-band support (2.4/5/6 GHz) — the upgrade path for organizations ready to leverage the 6 GHz spectrum. |
