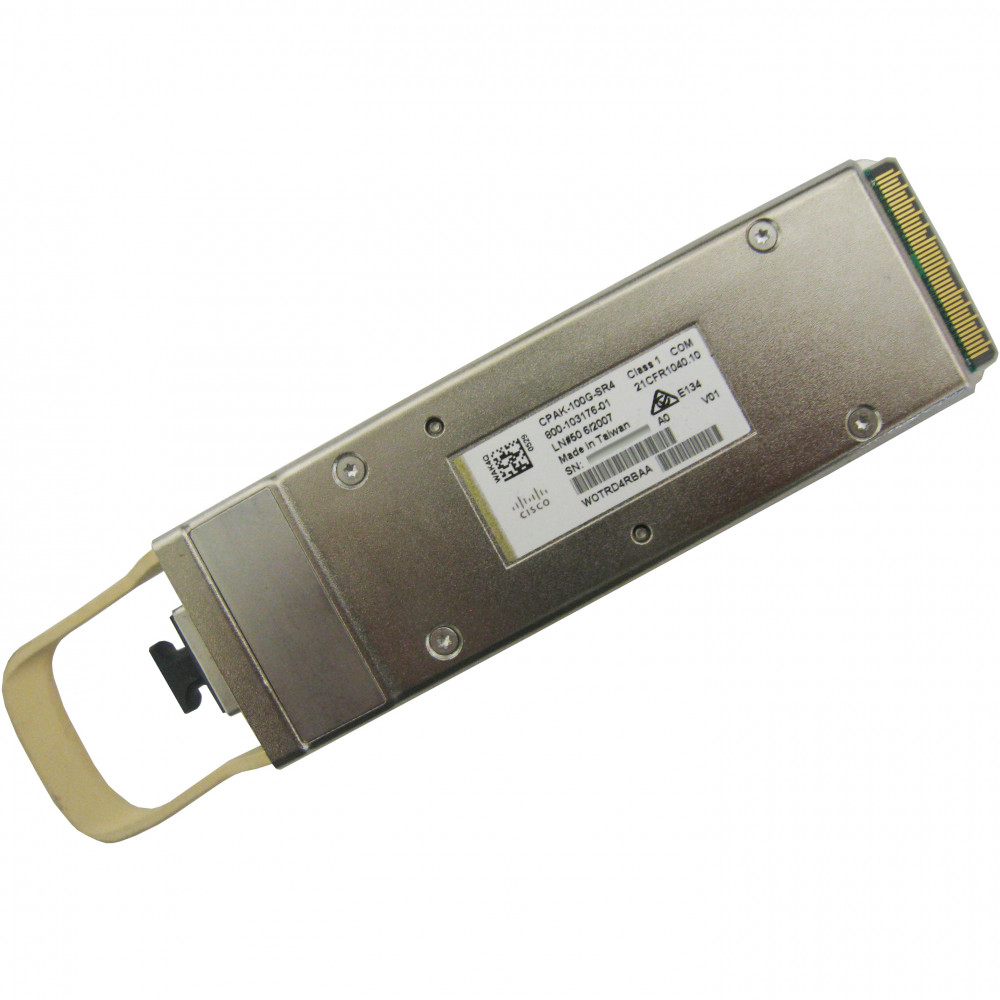

Cisco CPAK-100G-SR4

CPAK optical transceiver module. 100GBASE-SR4. 100m OM4, Original Cisco

In Stock
US $1,350.00
Add to cart Make offer
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The Cisco CPAK-100G-SR4 is a high-speed optical transceiver module designed for use in Cisco networking equipment. It is specifically designed to provide 100 Gigabit Ethernet connectivity over multimode fiber optic cables. The "SR4" in the name stands for "short reach," indicating that it is optimized for short-distance transmission within a data center or campus network environment. The CPAK-100G-SR4 module supports a maximum link length of 100 meters using OM3 or OM4 multimode fiber. It utilizes four parallel fibers for transmitting and receiving data, with each fiber operating at a rate of 25 Gbps.

Specifications

Duplex
Full
Data Rate
100 Gbps
Fiber Type
Multimode
Wavelength
850 nm
Form Factor
CPAK
Max Distance
100 meters
Hot Swappable
Yes
Connector Type
MPO-12
Supported Protocols
  • Ethernet
  • Fibre Channel
  • InfiniBand
Supported Standards
  • IEEE 802.3ba
  • IEEE 802.3bm
  • FC-PI-5
  • IBTA 1.3
Digital Optical Monitoring (DOM) Support
Yes
