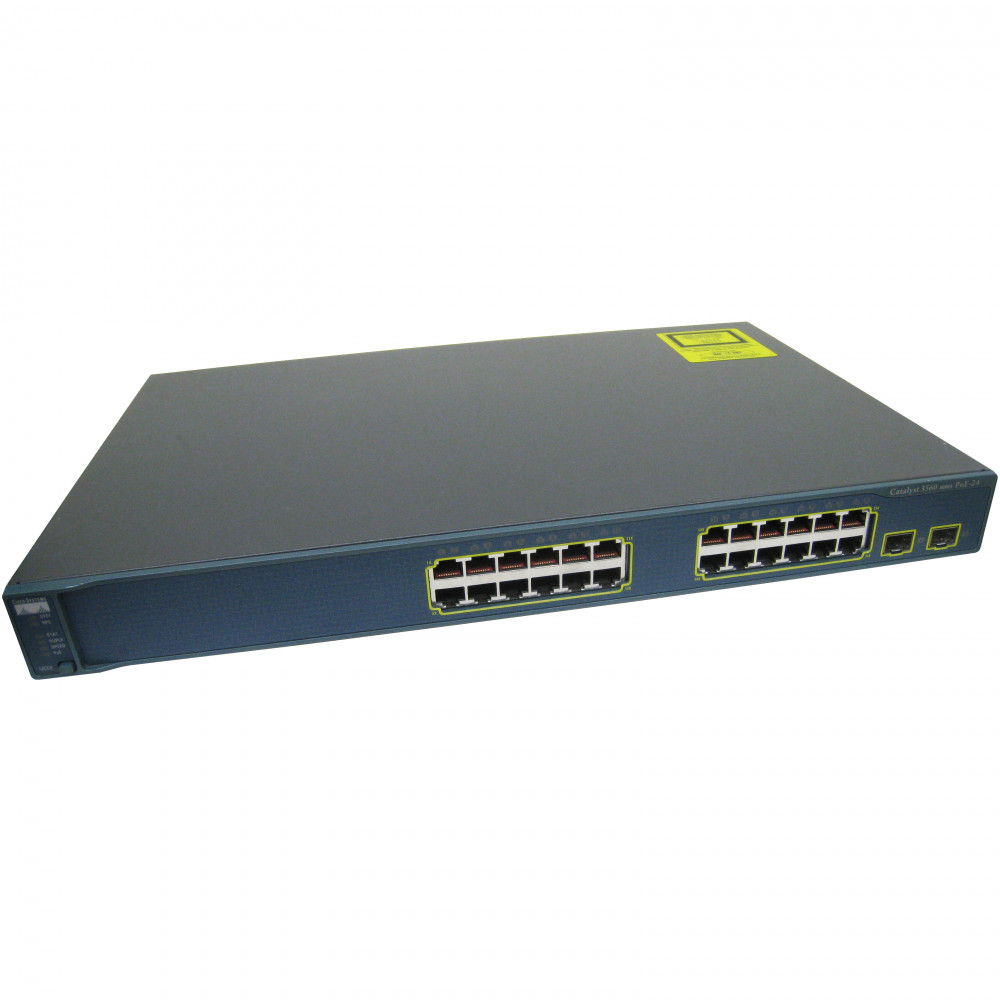

Cisco WS-C3560-24TS-E
Catalyst 3560 24 10/100 + 2 SFP + IPS Image
Product Highlights
What's Included
(1) Rackmount Kit (RCKMNT-1RU)
Maintaining reliable, high-performance connectivity at the network edge shouldn't require a forklift upgrade every budget cycle. The Cisco WS-C3560-24TS-E is a fixed-configuration, multilayer Catalyst 3560 switch purpose-built for enterprise access-layer deployments where advanced Layer 3 routing and intelligent services are essential.
Equipped with 24 Fast Ethernet 10/100 ports and 2 SFP-based Gigabit Ethernet uplinks, this managed switch delivers enterprise-class switching with the flexibility of fiber or copper uplink connectivity. The pre-installed IP Services (IPS) software image unlocks advanced hardware-based IP routing — including OSPF, EIGRP, BGP, PBR, and full IPv6 dynamic routing — making it ideal for environments that demand more than basic static routing.
The Catalyst 3560-24TS-E supports robust QoS, comprehensive security with 802.1X and ACLs, and Cisco Cluster Management Suite (CMS) for simplified multi-switch administration via a web browser. Its 1RU rack-mountable chassis fits neatly into standard 19-inch racks, and with a power consumption of just 45W, it keeps operating costs low.
Note: This product is End-of-Life (EOL). It remains a cost-effective option for maintaining existing Cisco Catalyst 3560 environments, lab use, or budget-conscious deployments where the latest hardware generation is not required. The recommended Cisco migration path is the Catalyst 3560-V2 series.
Features & Benefits
Advanced IP Services Routing
The IP Services (IPS) image provides a full suite of enterprise routing protocols including OSPF, EIGRP, BGP, PBR, and IPv6 dynamic routing. This eliminates the need for a separate router at the access layer and enables efficient, hardware-based inter-VLAN routing at wire speed.
Flexible Gigabit SFP Uplinks
Two SFP-based Gigabit Ethernet uplink slots accept a wide range of Cisco SFP transceivers — including 1000BASE-SX, 1000BASE-LX, and 1000BASE-T modules. This gives network architects the flexibility to connect over multimode fiber, single-mode fiber, or copper depending on distance and infrastructure requirements.
Enterprise Security & Access Control
IEEE 802.1X port-based authentication, DHCP snooping, dynamic ARP inspection, and comprehensive ACL support help protect the network edge from unauthorized access and common Layer 2 attacks. These features are critical for environments handling sensitive data or subject to compliance requirements.
Intelligent QoS for Converged Networks
Advanced QoS capabilities including per-port rate limiting, traffic classification, and priority queuing ensure that voice, video, and mission-critical data receive appropriate bandwidth and latency treatment. This makes the switch well-suited for converged network environments.
Simplified Management
Cisco Cluster Management Suite (CMS) enables web-based configuration and troubleshooting of multiple Catalyst desktop switches from a single browser session. Combined with SNMP v1/v2c/v3, RMON I/II, and SSH support, the WS-C3560-24TS-E integrates seamlessly into existing network management workflows.
Deployment Scenarios
Small/Medium Office Access Layer
Deploy the WS-C3560-24TS-E as an access-layer switch in branch offices or SMB environments where 24 Fast Ethernet ports provide ample desktop connectivity and the SFP uplinks connect back to a distribution switch or router over fiber. The IP Services image enables local inter-VLAN routing without a dedicated router.
Network Lab & Training Environment
As an EOL product available at significant discounts, the Catalyst 3560-24TS-E is an excellent choice for CCNA/CCNP lab environments. Its full IP Services feature set provides hands-on experience with enterprise routing protocols, QoS, and security features in a real Cisco IOS environment.
Legacy Network Maintenance & Sparing
Organizations still running Catalyst 3560 infrastructure can use the WS-C3560-24TS-E as a drop-in replacement or cold spare to maintain uptime without redesigning the network. Identical hardware ensures configuration compatibility and seamless failover.
General
Interfaces
Performance
Memory
Power
Physical
Environmental
Standards & Protocols
Compatibility Notes
SFP Compatibility: The 2 SFP uplink slots support Cisco GLC-series SFP transceivers including GLC-SX-MMD (1000BASE-SX), GLC-LH-SMD (1000BASE-LX/LH), GLC-T (1000BASE-T copper), and various CWDM SFP modules.
Redundant Power Supply: Compatible with the Cisco RPS 675 (PWR-RPS-675=) for power redundancy.
Replacement Model: Cisco recommends the WS-C3560V2-24TS-E as the direct replacement for this EOL product.
Software: Ships with IP Services (IPS / formerly EMI) image. Upgradeable via Cisco IOS Software for the Catalyst 3560 platform.
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| WS-C3560-24TS-S | Catalyst 3560-24TS-S | Same hardware but ships with IP Base (IPB) image — basic static/RIP routing only; lower cost if advanced routing is not needed. |
| WS-C3560V2-24TS-E | Catalyst 3560V2-24TS-E | Direct Cisco-recommended replacement; adds EnergyWise support and lower power consumption with the same port configuration and IPS image. |
| WS-C3560G-24TS-E | Catalyst 3560G-24TS-E | Gigabit variant with 24 x 10/100/1000 ports and 4 SFP uplinks; choose this when Gigabit to the desktop is required. |
| WS-C3560-48TS-E | Catalyst 3560-48TS-E | Same series with 48 x 10/100 ports and 4 SFP uplinks for higher-density access-layer deployments. |
