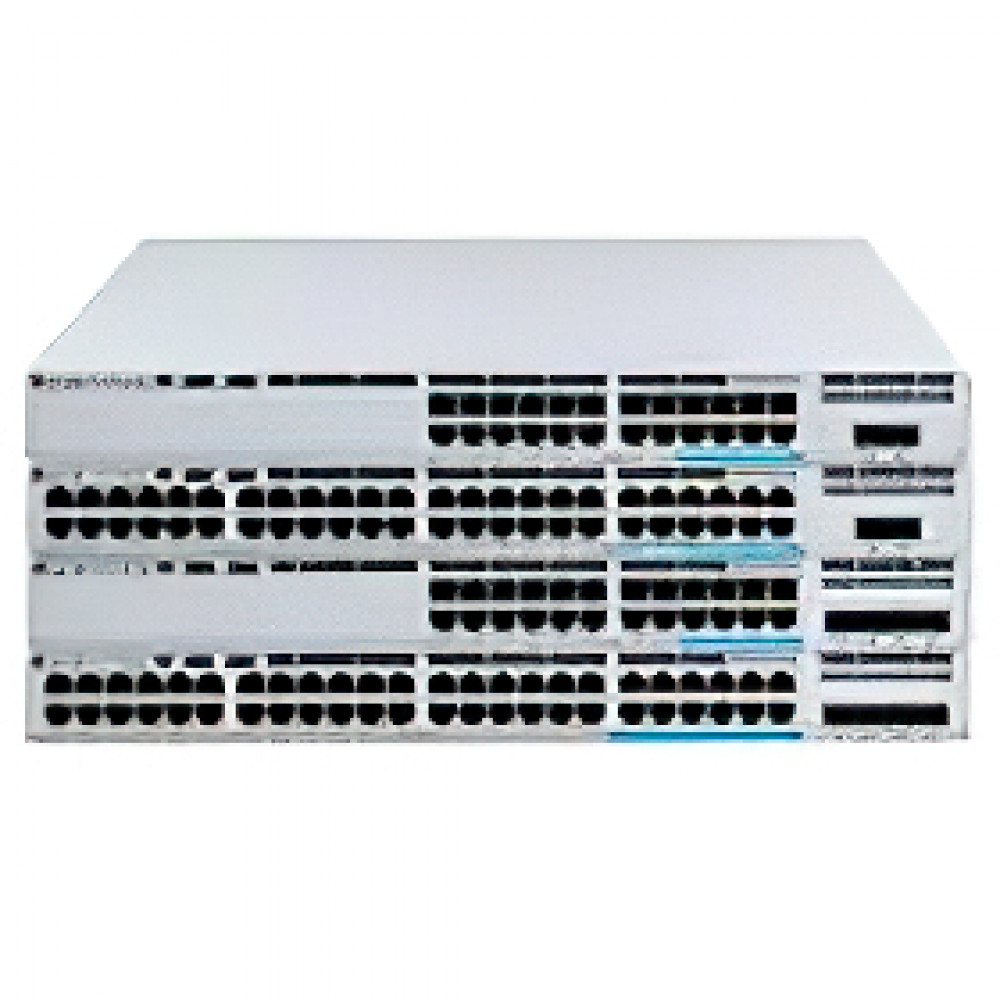

Cisco C9200-24PXG-E
Catalyst 9200 24-port 8xmGig PoE+, Network Essentials
Product Highlights
Modern enterprise access layers face relentless bandwidth pressure from Wi-Fi 6/6E access points, IP surveillance cameras, and IoT endpoints — all demanding multi-gigabit speeds and inline power. The Cisco Catalyst C9200-24PXG-E is purpose-built to meet these demands head-on.
This 24-port PoE+ managed switch delivers 8 multigigabit ports supporting speeds up to 10G alongside 16 standard 1G ports, all with full PoE+ capability. A modular uplink slot accepts field-replaceable network modules (4x10G SFP+, 2x25G SFP28, or 2x40G QSFP+), providing a clear upgrade path as your backbone evolves. With the Network Essentials license, you get enterprise-grade Layer 2 switching and foundational Layer 3 routing, plus Cisco DNA Center integration for intent-based automation.
Designed for branch offices, campus access closets, and SMB core deployments, the C9200-24PXG-E combines StackWise-160 stacking (up to 8 units), FRU-redundant power supplies and fans, and MACsec encryption into a compact 1RU form factor. It runs Cisco IOS XE on the same UADP 2.0 Mini ASIC platform shared across the Catalyst 9200 family — delivering consistent policy enforcement, programmability, and operational simplicity across your entire access network.
Features & Benefits
Multigigabit & PoE+ Connectivity
Eight mGig ports support 100M/1G/2.5G/5G/10G speeds, enabling high-throughput connections to Wi-Fi 6/6E access points and advanced endpoints over existing Cat5e/Cat6 cabling. All 24 ports deliver PoE+ (IEEE 802.3at) with a budget up to 740W when a secondary power supply is installed, eliminating the need for separate power infrastructure for connected devices.
Modular Uplink Flexibility
The rear-panel modular uplink slot accepts hot-swappable network modules — choose from the C9200-NM-4G (4x1G SFP), C9200-NM-4X (4x10G SFP+), C9200-NM-2Y (2x25G SFP28), or C9200-NM-2Q (2x40G QSFP+). This field-replaceable design protects your investment by allowing non-disruptive bandwidth upgrades as your distribution or core layer evolves.
StackWise-160 High-Availability Stacking
Stack up to 8 C9200 switches into a single logical unit with 160 Gbps of stacking bandwidth using the optional C9200-STACK-KIT. A unified management and control plane simplifies operations, and the stack provides automatic failover for uninterrupted network access across up to 384 ports.
Enterprise-Grade Security
Built-in AES-128 MACsec encryption secures data in transit at line rate. Cisco Trustworthy Solutions — including secure boot, hardware root-of-trust, and runtime defenses — protect the integrity of the switch hardware and software. Policy-based segmentation with Security Group Tags (SGT) enables zero-trust access control.
Simplified Management & Automation
Cisco IOS XE provides model-driven programmability via NETCONF/YANG and REST APIs. Manage the switch through CLI, web GUI, or Cisco Catalyst Center (formerly DNA Center) for intent-based automation, assurance, and analytics. The Network Essentials license includes essential automation features out of the box.
Resilient, Field-Serviceable Design
Dual field-replaceable power supplies and FRU fan modules ensure high availability and simplify maintenance without taking the switch offline. The default PWR-C6-600WAC power supply provides 370W of PoE; adding a second PSU doubles the PoE budget to 740W and adds power redundancy.
Deployment Scenarios
Enterprise Campus Access Layer
Deploy the C9200-24PXG-E in campus wiring closets to connect Wi-Fi 6/6E access points via mGig ports and power IP phones and cameras on the 1G PoE+ ports. StackWise-160 stacking unifies management across floors, while modular 10G/25G uplinks provide high-speed connectivity to the distribution layer.
Branch Office Core/Access Switch
Serve as the primary switch in small-to-medium branch offices where a single device must handle both access and uplink aggregation. The 740W PoE budget powers all connected endpoints, and the Network Essentials license provides the Layer 3 routing needed for inter-VLAN traffic without a separate router.
High-Density IoT & Surveillance Deployments
Support bandwidth-intensive IP cameras, digital signage, and IoT sensors that require multi-gigabit throughput and reliable PoE+. The 8 mGig ports handle high-resolution video streams while the remaining 16 ports serve standard 1G devices, all managed through a single pane of glass via Cisco Catalyst Center.
General
Ports & Interfaces
Power
Stacking
Memory
Fans & Cooling
Physical
Compliance
Compatibility Notes
Uplink Network Modules (ordered separately):
- C9200-NM-4G — 4x 1G SFP
- C9200-NM-4X — 4x 10G SFP+
- C9200-NM-2Y — 2x 25G SFP28 (supported on mGig models)
- C9200-NM-2Q — 2x 40G QSFP+
Stacking:
- C9200-STACK-KIT= — StackWise-160 kit (2 adapters + cable)
- Stacking cables: STACK-T4-50CM, STACK-T4-1M, STACK-T4-3M
- C9200 modular models cannot be stacked with C9200L fixed models or other Catalyst families
Power Supplies:
- Default: PWR-C6-600WAC (370W PoE)
- Secondary PSU adds redundancy and increases PoE budget to 740W
Software: Cisco IOS XE — Network Essentials license included. Upgradeable to Network Advantage.
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| C9200-24P-E | Catalyst 9200 24-Port PoE+ (All 1G) | All 24 ports are 1G — no mGig. Lower cost option when multi-gigabit is not required. |
| C9200L-24PXG-4X-E | Catalyst 9200L 24-Port mGig PoE+ (Fixed 4x10G) | Fixed 4x10G SFP+ uplinks instead of modular slot. Lower cost but no uplink upgrade path. |
| C9200-48PXG-E | Catalyst 9200 48-Port mGig PoE+ | 48-port model with 8 mGig + 40x1G. Choose this when higher port density is needed. |
| C9200-24PXG-A | Catalyst 9200 24-Port mGig PoE+ (Network Advantage) | Same hardware with Network Advantage license — adds full Layer 3 routing (OSPF, EIGRP, BGP stub, PBR, VRF-Lite). |
