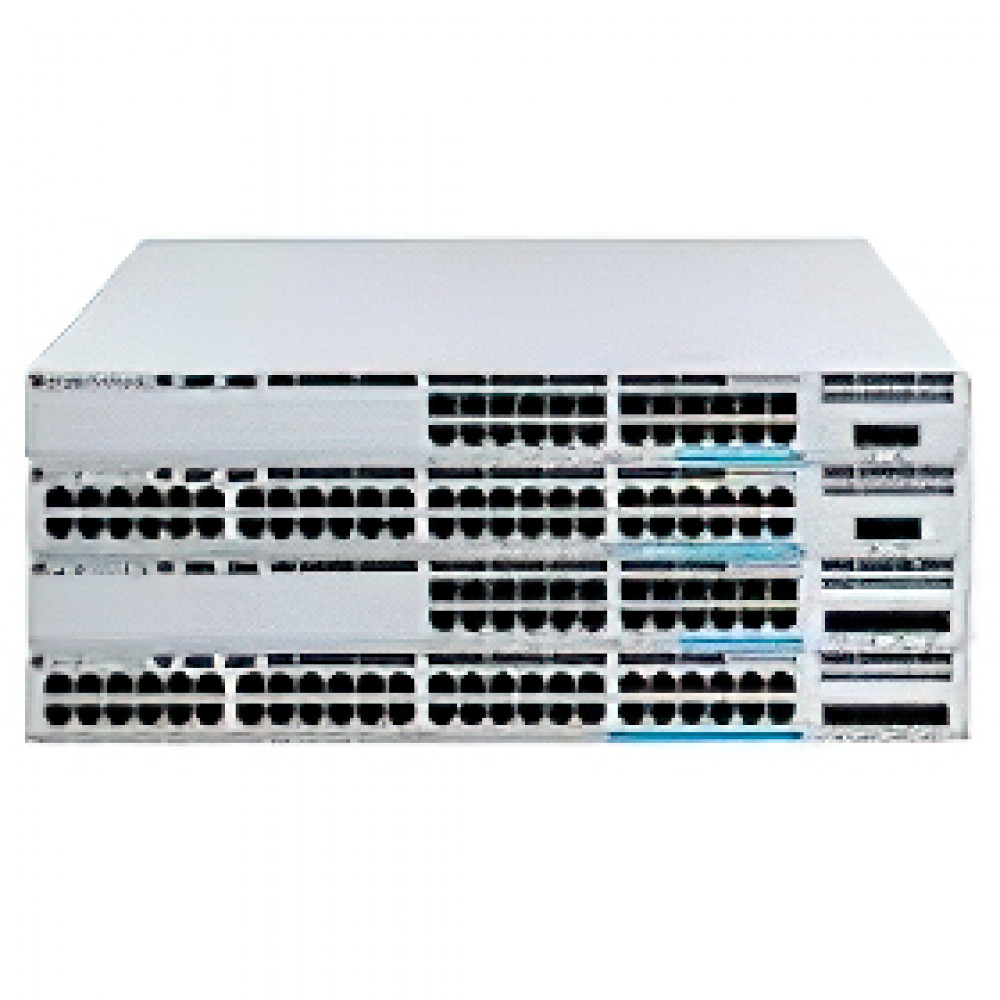

Cisco C9200L-24PXG-4X-E
C9200L 24-p 8xmGig, 16x1G, 4x10G, PoE+, Network Essentials
Product Highlights
Family
Switches
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Contact Us for Availability
The Cisco C9200L-24PXG-4X-E is a member of the Cisco Catalyst 9200 Series of switches. It is a fixed-configuration, stackable switch designed for small to medium-sized businesses and branch offices.
The "24PXG" in the model number indicates that it has 24 ports, with "PX" referring to Power over Ethernet (PoE) capabilities. This switch provides PoE+ support, which means it can deliver power to connected devices such as IP phones, wireless access points, and surveillance cameras.
The "4X" in the model number indicates that it has four 10 Gigabit Ethernet uplink ports, allowing for high-speed connectivity to other switches or network devices.
The "E" in the model number signifies that it is an enhanced version of the switch, offering advanced features and capabilities compared to the base model.
Overall, the Cisco C9200L-24PXG-4X-E is a versatile and powerful switch that provides PoE support, high-speed uplink connectivity, and advanced features for network management and security.
Ports
24
Modular
No
Stackable
Yes
PoE Budget
740W
Forwarding Rate
130.95 Mpps
VLANs Supported
4,094
MACsec Encryption
Yes
Uplink Interfaces
4x 10G SFP+
Hot Swappable Fans
Yes
Stacking Bandwidth
160 Gbps
Switching Capacity
176 Gbps
IPv4 Routing Entries
16,000
IPv6 Routing Entries
9,000
Flexible NetFlow (FNF)
Yes
MAC Address Table Size
32,000 entries
Power over Ethernet (PoE)
Yes
Energy Efficient Ethernet (EEE)
Yes
Redundant Power Supply (RPS) Support
Yes
