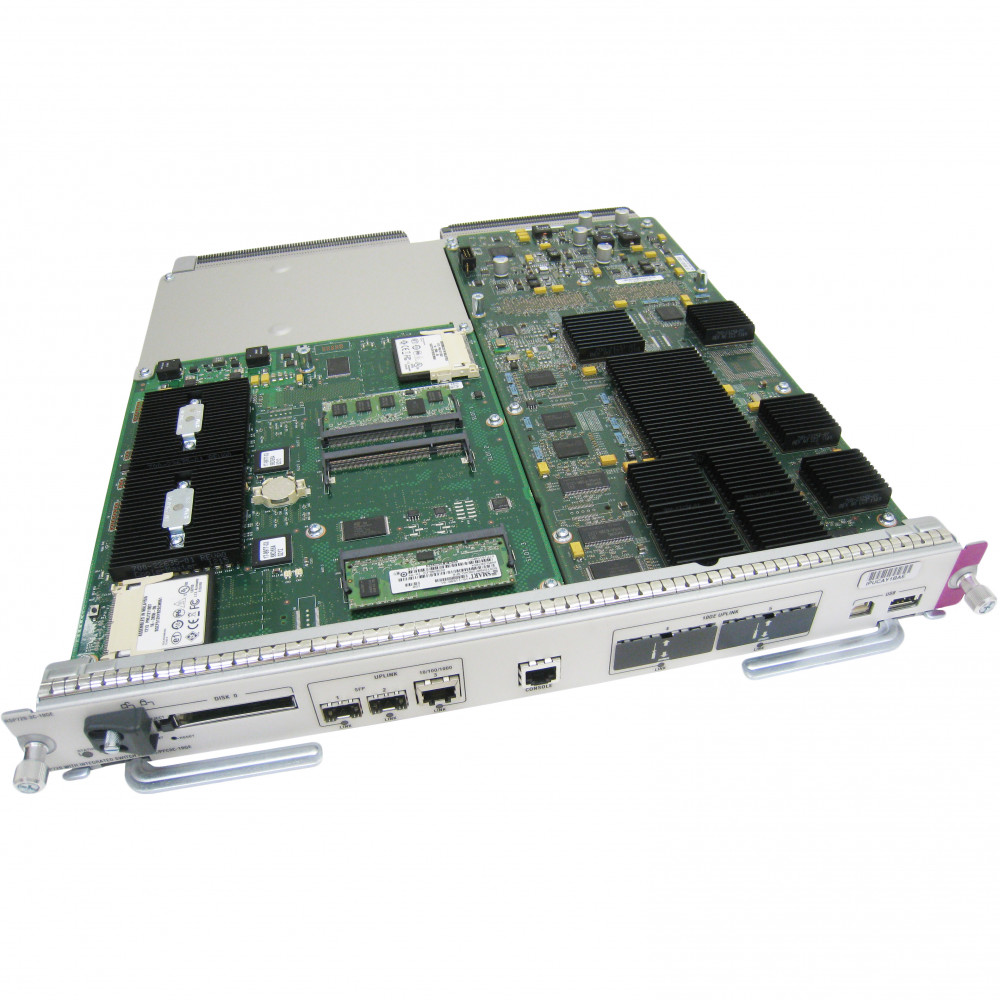

Cisco RSP720-3CXL-10GE

Cisco 7600 Route Switch Processor 720Gbps, PFC3CXL, 10G

In Stock
US $2,250.00
Add to cart Make offer
Product Highlights
Family
Routers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
What's Included
2GB DRAM Route Processor (2x MEM-RSP720-1G)
1GB DRAM Switch Processor (1x MEM-RSP720-SP1G)
512MB Flash Route Processor (1x MEM-RSP720-CF512M)
512MB Flash Switch Processor (1x MEM-RSP720-CF512M)


Twitter Reddit Facebook

Information

The Cisco RSP720-3CXL-10GE is a high-performance routing and switching engine module designed for Cisco Catalyst 6500 Series switches. It is part of the Cisco Supervisor Engine 720 family and provides advanced features and capabilities for enterprise and service provider networks. The RSP720-3CXL-10GE offers three key components: the Route Switch Processor (RSP), the Multilayer Switch Feature Card (MSFC), and the Policy Feature Card (PFC). These components work together to deliver high-speed forwarding, advanced routing protocols, and comprehensive security features. Key features of the Cisco RSP720-3CXL-10GE include: 1. High-performance forwarding: It supports up to 400 million packets per second (Mpps) forwarding rate and up to 720 Gbps switching capacity, making it suitable for high-bandwidth and high-density environments. 2. Advanced routing protocols: It supports a wide range of routing protocols, including Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), and Enhanced Interior Gateway Routing Protocol (EIGRP), enabling efficient and scalable network routing. 3. Comprehensive security: It provides hardware-based encryption and authentication features, including IPsec VPN, Secure Sockets Layer (SSL) VPN, and Network Admission Control (NAC), ensuring secure communication and access control. 4. High-density connectivity: It offers up to 10 Gigabit Ethernet (10GE) ports, allowing for high-speed connectivity to servers, storage devices, and other network devices. 5. Redundancy and high availability: It supports redundant supervisor engine configurations, enabling seamless failover and ensuring network uptime. Overall, the Cisco RSP720-3CXL-10GE is a powerful and feature-rich module that enhances the performance, scalability, and security of Cisco Catalyst 6500 Series switches.

Specifications

Ports
10
Memory
1 GB
Weight
17.6 lbs
Modular
Yes
Ethernet
Yes
Stackable
No
Dimensions
  • Depth
    • 17.3 inches
  • Width
    • 16.9 inches
  • Height
    • 1.7 inches
Flash Memory
256 MB
IPv6 Support
Yes
Hot Swappable
Yes
Forwarding Rate
400 Mpps
Layer 2 Support
Yes
Layer 3 Support
Yes
Routing Table Size
128,000 entries
Switching Capacity
720 Gbps
10 Gigabit Ethernet
Yes
Jumbo Frames Support
Yes
MAC Address Table Size
32,000 entries
Redundant Power Supply
Yes
Quality of Service (QoS)
Yes
Power over Ethernet (PoE)
No
Virtual LAN (VLAN) Support
Yes
Spanning Tree Protocol (STP)
Yes
Rapid Spanning Tree Protocol (RSTP)
Yes
Multiple Spanning Tree Protocol (MSTP)
Yes
Link Aggregation Control Protocol (LACP)
Yes
