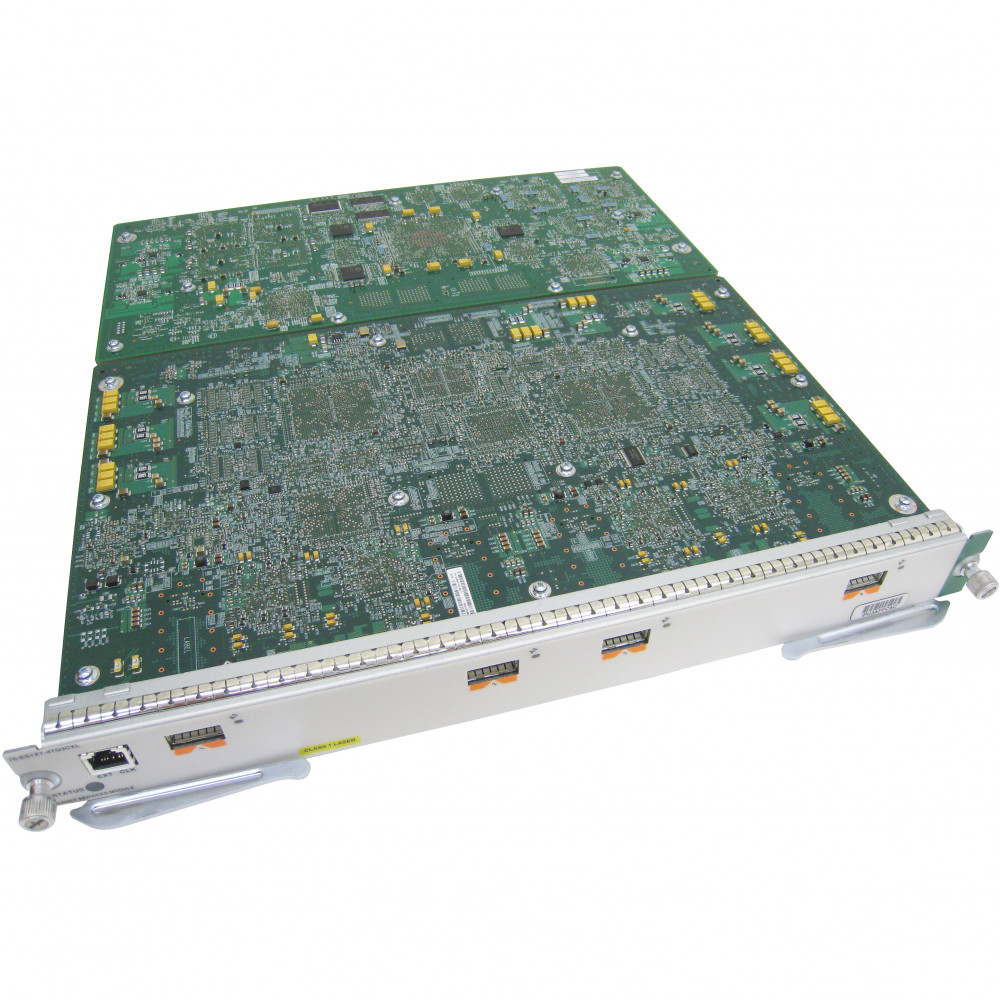

Cisco 76-ES+T-4TG

ES+ Low Queue 4 port 10GE - 3CXL

In Stock
US $1,850.00
Add to cart Make offer
Product Highlights
Family
Routers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days

As service provider and enterprise WAN environments scale, the demand for high-density 10 Gigabit Ethernet connectivity with advanced service intelligence becomes critical. The Cisco 76-ES+T-4TG is an Ethernet Services Plus (ES+) Transport line card designed for the Cisco 7600 Series Router platform, delivering four ports of 10 Gigabit Ethernet via XFP optics with an integrated DFC 3CXL distributed forwarding card.

This low-queue variant of the ES+ Transport family provides up to 40 Gbps of aggregate throughput with line-rate forwarding performance and services enabled. It supports LAN/WAN PHY and OTN/G.709 for flexible deployment across Carrier Ethernet, IP/MPLS provider edge, and WAN/MAN applications. With hierarchical QoS supporting 16 queues per physical port, 512 MB of packet memory for deep buffering, and up to 96,000 MAC addresses, the 76-ES+T-4TG is built for environments where traffic engineering and service differentiation are essential.

The card combines both Layer 2 and Layer 3 services on a single module, reducing the need for additional hardware while supporting up to 16,000 VLAN IDs per line card. It occupies a single slot in any Cisco 7600 Series chassis (except the 7603) and supports online insertion and removal for non-disruptive maintenance. Note: The Cisco 7600 Series platform has reached End-of-Life status. This line card is available as a pre-owned or refurbished unit, ideal for sustaining existing 7600 deployments.

Features & Benefits
High-Density 10 Gigabit Ethernet

The 76-ES+T-4TG provides four 10GE ports using industry-standard XFP optics, supporting up to 40 Gbps of aggregate bandwidth. This density allows operators to consolidate uplinks and reduce the number of line cards required per chassis, lowering both capital and operational costs.

Distributed Forwarding with DFC 3CXL

The integrated DFC 3CXL offloads packet forwarding decisions from the central supervisor engine, enabling line-rate performance even under heavy load. This distributed architecture is critical in multi-slot chassis deployments where centralized forwarding would create bottlenecks.

OTN/G.709 Optical Transport Support

With LAN/WAN PHY and OTN/G.709 support, this line card bridges traditional Ethernet and optical transport domains. Service providers can integrate IP-over-DWDM architectures directly at the line card level, eliminating the need for external transponders and simplifying the optical network edge.

Advanced QoS and Deep Buffering

Hierarchical QoS with 16 hardware queues per physical port enables granular traffic classification and scheduling for converged services. Combined with 512 MB of packet memory providing up to 200 ms of round-trip buffering, the card handles bursty traffic and long-distance WAN links without packet loss.

Layer 2 + Layer 3 Service Convergence

The 76-ES+T-4TG uniquely combines Layer 2 switching and Layer 3 routing services on a single line card. With support for up to 16,000 VLAN IDs and 96,000 MAC addresses, it scales to meet the demands of large Carrier Ethernet and enterprise campus deployments.

Hot-Swappable Design

Online Insertion and Removal (OIR) support allows the line card to be added, replaced, or removed without powering down the chassis or disrupting traffic on other slots. This minimizes maintenance windows and improves overall network availability.

Deployment Scenarios
Service Provider WAN/MAN Aggregation

Deploy the 76-ES+T-4TG in Cisco 7600 routers at the provider edge to aggregate multiple 10GE uplinks from access rings. OTN/G.709 support enables direct integration with DWDM optical transport, reducing equipment and simplifying the network architecture.

IP/MPLS Provider Edge

Use the card's 4x 10GE ports as PE-facing interfaces in MPLS networks. The DFC 3CXL provides the forwarding performance needed for label switching at scale, while hierarchical QoS ensures SLA compliance across multiple customer VPNs.

Enterprise Data Center or Campus Core Interconnect

In large enterprise environments with existing Cisco 7600 infrastructure, the 76-ES+T-4TG provides high-bandwidth interconnects between campus core routers or data center aggregation points. Deep buffering handles bursty server-to-server traffic effectively.

Sustaining Legacy 7600 Deployments

For organizations maintaining Cisco 7600 routers beyond their End-of-Life date, the 76-ES+T-4TG is a critical spare. Pre-owned units allow network teams to replace failed cards or expand capacity without a full platform migration.

4 Ports of 10 Gigabit Ethernet (XFP) — Delivers up to 40 Gbps aggregate bandwidth for high-demand WAN/MAN links
Integrated DFC 3CXL — Distributed forwarding offloads the supervisor engine for enhanced packet processing
LAN/WAN PHY with OTN/G.709 Support — Flexible deployment across LAN, WAN, and optical transport networks
Hierarchical QoS with 16 Queues Per Port — Granular traffic management for converged data, voice, and video
512 MB Packet Memory — Provides up to 200 ms of combined bidirectional buffering at 10 Gbps
Up to 96,000 MAC Addresses — Scales to support large Layer 2 environments without table exhaustion
Online Insertion and Removal (OIR) — Hot-swap the line card without disrupting other slots in the chassis
Layer 2 and Layer 3 on One Card — Combine switching and routing services to simplify network design
General
Manufacturer
Cisco Systems
Part Number
76-ES+T-4TG
Product Line
Cisco 7600 Series ES Plus Transport Line Cards
Card Type
Line Card (Low Queue)
Form Factor
Single-slot plug-in module
Distributed Forwarding Card
DFC 3CXL (integrated)
End-of-Life Status
Yes — Cisco 7600 Series EOL announced November 2016
Interfaces
10GE Ports
4
Optics Type
XFP (sold separately)
PHY Support
LAN/WAN PHY
OTN Support
G.709 (requires 76-ES+OTN-LIC)
Link Encapsulations
Ethernet II, IEEE 802.1q
Performance
Aggregate Bandwidth
Up to 40 Gbps (4x 10GE)
Forwarding Performance
Line rate with services enabled
Switch Fabric Connectivity
Two 20-Gbps fabric channels
Packet Memory
512 MB
Buffering
Up to 200 ms combined bidirectional (100 ms ingress, 100 ms egress) at 10 Gbps
MAC Addresses
Up to 96,000 per line card
VLAN IDs
Up to 16,000 per line card
QoS
Hardware Queues
16 queues per physical port
Hierarchical QoS
Supported
Layer 2 Services
Supported
Layer 3 Services
Supported
Software
Minimum IOS Release
Cisco IOS 12.2(33)SRD4
Central Forwarding Engine
Supervisor Engine 720-3B/3BXL or RSP720
Physical
Dimensions (H x W x D)
1.75 x 15.375 x 16 in
Weight
12.4 lbs
Slots Occupied
1
Hot-Swappable (OIR)
Yes
Power & Environmental
Maximum Power Consumption
406W
Compatibility
Supported Chassis
All Cisco 7600 Series routers except Cisco 7603
Max Cards Per Chassis
Up to 8 ES Plus line cards in Cisco 7609/7609-S
Compatibility Notes

Chassis Compatibility

  • Compatible with all Cisco 7600 Series routers except the Cisco 7603
  • Up to 8 ES Plus line cards (any type) can be installed in a Cisco 7609 or 7609-S 9-slot chassis
  • Requires dual-channel switch-fabric connectivity (slots must support two 20-Gbps fabric channels)

Supervisor Engine Requirements

  • Cisco Supervisor Engine 720-3B or 720-3BXL
  • Cisco Route Switch Processor 720 (RSP720) 3C/3CXL or RSP720-10GE

Software Requirements

  • Minimum: Cisco IOS Release 12.2(33)SRD4 or later

Optics

  • Accepts standard Cisco XFP modules (10GE)
  • XFP modules are sold separately

Licensing

  • 76-ES+BASIC-LIC — ES Plus Basic IP License (includes IPv6)
  • 76-ES+ADVIP-LIC — ES Plus Advanced IP License
  • 76-ES+OTN-LIC — ES Plus OTN PHY (G.709/FEC/EFEC) License (required for OTN features)
Downloads & Resources
ES+ Line Cards Hardware Installation Guide (PDF) (cisco.com — search for 'Cisco 7600 Series Ethernet Services Plus Line Card Hardware Installation Guide')
Frequently Asked Questions

No. XFP transceiver modules are sold separately. The line card has four XFP slots that accept standard Cisco 10GE XFP modules, including LAN-PHY, WAN-PHY, and DWDM variants.

The 76-ES+T-4TG is the ES+ Transport variant, which adds LAN/WAN PHY flexibility and OTN/G.709 optical transport support. The 7600-ES+4TG3CXL is the standard ES+ line card without Transport/OTN features. Both provide 4x 10GE with DFC 3CXL.

Yes. Cisco announced End-of-Life for the 7600 Series Routers in November 2016. The last date of support was February 28, 2022. Pre-owned and refurbished line cards like the 76-ES+T-4TG remain available for sustaining existing deployments.

The 76-ES+T-4TG is compatible with all Cisco 7600 Series routers except the Cisco 7603. It requires dual-channel switch-fabric connectivity and a Supervisor Engine 720-3B/3BXL or RSP720.

The minimum supported software is Cisco IOS Release 12.2(33)SRD4 or later. Ensure your supervisor engine is running a compatible IOS image before installing the card.
Part Number Product Key Difference
7600-ES+4TG3CXL Cisco 7600 ES+ 40G Line Card, 4x10GE XFP, DFC-3CXL Standard ES+ (non-Transport) variant — lacks LAN/WAN PHY and OTN/G.709 support but offers the same 4x10GE density with DFC 3CXL
76-ES+T-2TG Cisco 7600 ES+ Transport, 2x10GE XFP 2-port variant of the ES+ Transport family — lower density (20 Gbps) at a lower cost for smaller deployments
