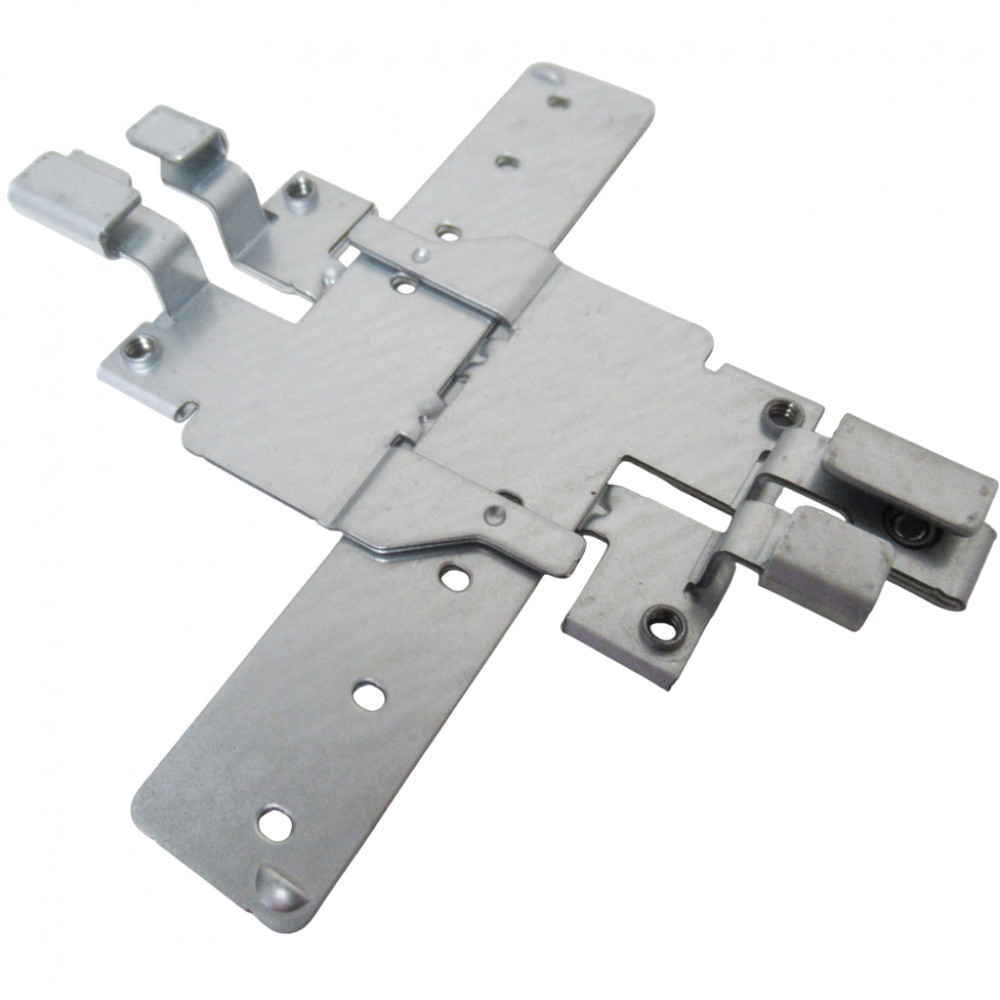

Cisco AIR-AP-T-RAIL-R
Ceiling Grid Clip for Aironet APs - Recessed Mount (Default)
Product Highlights
Deploying wireless access points on a suspended ceiling shouldn't mean wrestling with incompatible hardware or unsightly installations. The Cisco AIR-AP-T-RAIL-R is the official recessed ceiling grid clip designed to securely fasten Cisco Aironet access point mounting brackets to standard T-rail suspended ceiling systems.
This clip is purpose-built for environments where ceiling tiles hang below the ceiling grid (recessed tile configuration), providing the best fit between the access point and the ceiling surface. It features three adjustable detent positions (A, B, and C) to accommodate varying T-rail widths, and includes locking screws that prevent the clip from shifting once installed. The recessed clip can also be used in flush ceiling tile installations — the resulting ¼" gap does not affect the safety or security of the mount.
The AIR-AP-T-RAIL-R is compatible with a wide range of Cisco Aironet access point platforms and must be paired with either the AIR-AP-BRACKET-1 (low-profile) or AIR-AP-BRACKET-2 (universal) mounting bracket. For ceiling environments using channel rails or beam rails instead of standard T-rails, the optional AIR-CHNL-ADAPTER is required. Whether you're outfitting a new office campus or refreshing mounting hardware during an AP migration, this clip delivers a clean, professional, and secure ceiling installation.
Features & Benefits
Recessed Ceiling Tile Compatibility
Specifically designed for suspended ceilings where tiles sit below the grid rail. The recessed profile ensures a proper fit and clean appearance, keeping the access point snug against the ceiling without unsightly gaps or instability.
Adjustable T-Rail Width Detents
Three detent positions (A, B, and C) allow the clip to accommodate different standard T-rail widths. This flexibility means a single clip SKU works across a variety of ceiling grid systems, reducing the need to stock multiple mounting accessories.
Secure Locking Mechanism
Two integrated locking screws prevent the clip from sliding along the T-rail after installation. This ensures the access point stays precisely where it was placed, maintaining optimal wireless coverage and eliminating the risk of drift over time.
Broad Access Point Compatibility
Compatible with Cisco Aironet AP3700, 3600, AP2600, AP1600, AP1040, AP1140, AP1260, AP3500, and AP702i Series access points. This wide compatibility makes it an excellent spare to keep on hand for multi-generation AP deployments.
Quick, Tool-Minimal Installation
Installation requires only a standard screwdriver. Open the clip, place it over the T-rail, close to the correct detent, tighten the locking screws, and attach the mounting bracket with four 6-32 x ¼" screws. The entire process takes just minutes per access point.
Deployment Scenarios
Enterprise Office Ceiling Deployments
In corporate offices with standard suspended ceilings and recessed tiles, the AIR-AP-T-RAIL-R provides a clean, professional mount for Cisco Aironet access points. Ceiling-mounted APs deliver superior wireless coverage compared to wall or desk placements, and the recessed clip keeps the installation visually unobtrusive.
Education & Healthcare Facilities
Schools, universities, and hospitals frequently use suspended ceiling grids and require secure AP mounting to prevent tampering or accidental displacement. The locking screws on this clip ensure the AP stays in place, and the recessed design integrates neatly into environments where aesthetics and safety matter.
Large-Scale AP Refresh or Migration Projects
When upgrading from one generation of Cisco Aironet APs to another, existing ceiling grid clips can often be reused. Keeping spare AIR-AP-T-RAIL-R clips on hand ensures installers can quickly replace any damaged or missing clips without delaying the rollout.
General
Compatibility
Physical
Installation
Compatibility Notes
Compatible Access Point Platforms:
- Cisco Aironet AP3700 Series
- Cisco Aironet AP3600 Series
- Cisco Aironet AP3500 Series (3500i, 3500e)
- Cisco Aironet AP2600 Series
- Cisco Aironet AP1600 Series
- Cisco Aironet AP1260 Series
- Cisco Aironet AP1140 Series
- Cisco Aironet AP1040 Series
- Cisco Aironet AP702i Series
- Cisco Aironet AP700 Series
Required Mounting Bracket (sold separately if not included with AP):
- AIR-AP-BRACKET-1 (Low-Profile Bracket) — recommended for standard ceiling grid mounting
- AIR-AP-BRACKET-2 (Universal Bracket) — recommended for electrical box, wall, or NEMA enclosure mounting
Optional Accessories:
- AIR-CHNL-ADAPTER — Required (2 per AP) when mounting to channel rails or beam rails instead of standard T-rails
Note: The AIR-AP-T-RAIL-R does not function as a standalone mount — it must be used with a compatible mounting bracket.
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| AIR-AP-T-RAIL-F | Cisco Flush Ceiling Grid Clip | Designed for flush ceiling tiles (tiles level with the grid) — provides a snug, zero-gap fit vs. the recessed clip's design for tiles that hang below the grid. |
| AIR-AP-BRACKET-1 | Cisco Low-Profile AP Mounting Bracket | The mounting bracket that attaches to the AP itself — pairs with the AIR-AP-T-RAIL-R clip for a complete ceiling mount solution. |
| AIR-AP-BRACKET-2 | Cisco Universal AP Mounting Bracket | Universal bracket with extra clearance for wiring and electrical boxes — recommended for wall, NEMA enclosure, or above-ceiling installations. |
| AIR-CHNL-ADAPTER | Cisco Channel Rail Adapter Clip | Required adapter (2 per AP) when mounting to channel or beam ceiling rails instead of standard T-rails. |
