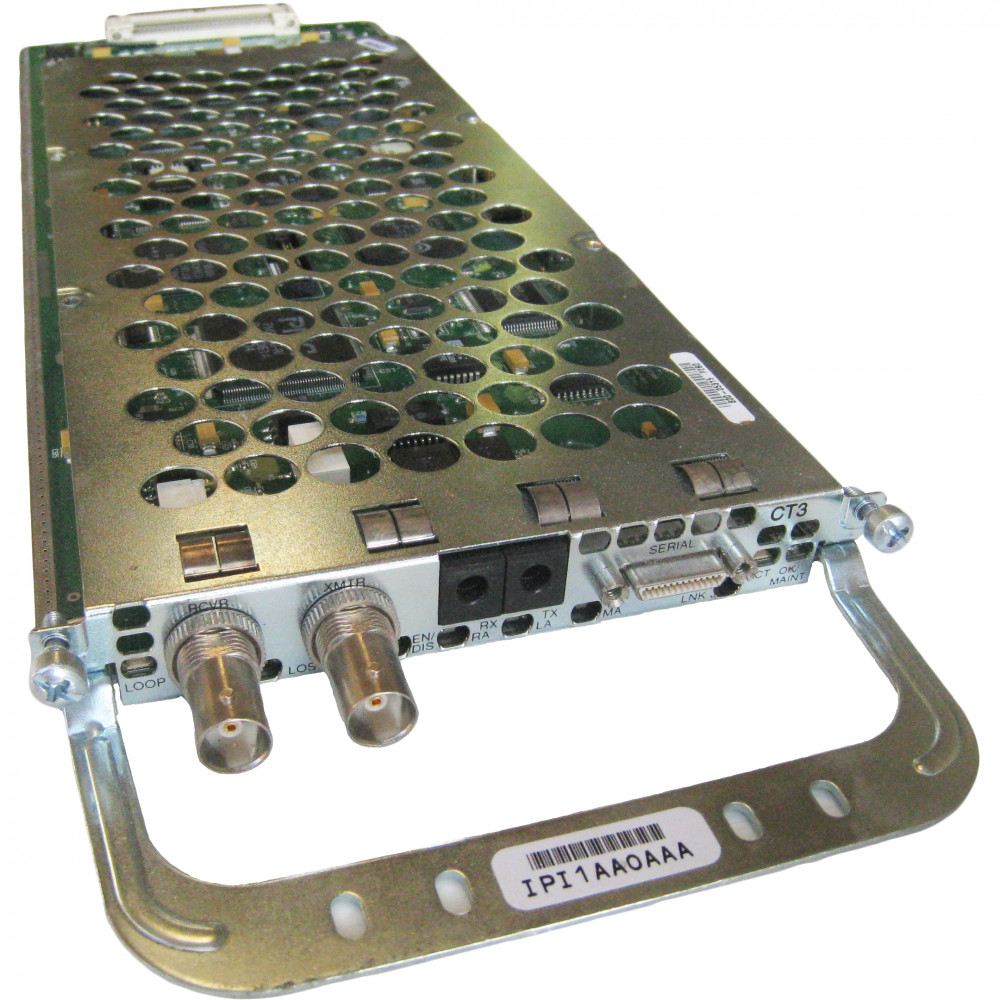

Cisco AS535-DFC-CT3A

AS5350 CT3A DFC card

In Stock
US $2,500.00
Add to cart Make offer
Product Highlights
Family
Voice Gateways
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 1-2 Days

Managing high-density voice and data trunking in a compact gateway footprint demands purpose-built hardware that can keep pace with carrier-grade traffic volumes. The Cisco AS535-DFC-CT3A is a Channelized T3 (CT3) Dial Feature Card designed for the Cisco AS5350 series universal gateways.

This DFC trunk card provides physical-line termination for a CT3 ingress trunk line, using an onboard multiplexer to consolidate 28 CT1 lines into a single CT3 interface. It includes a built-in CSU for direct connection to the telco network and supports CAS, PRI, and IMT trunk signaling types. The card installs into any of the three available DFC slots on the AS5350 chassis, enabling flexible deployment configurations.

The AS535-DFC-CT3A is ideal for service providers and enterprises that require high-capacity voice, fax, and data services delivered through a single rack-unit gateway. It is also compatible with the AS5350XM and AS5400XM universal gateway platforms. Note that the Cisco AS5350 platform has reached End-of-Life status, making pre-owned and refurbished modules the primary sourcing option for organizations maintaining existing deployments.

Features & Benefits
Channelized T3 Trunk Termination

The AS535-DFC-CT3A provides physical-line termination for a CT3 ingress trunk line. Its onboard multiplexer consolidates 28 CT1 lines into a single CT3 connection, dramatically reducing cabling complexity and simplifying point-of-presence (POP) deployments.

Integrated CSU for Direct Telco Connection

The card includes a built-in Channel Service Unit (CSU) that connects directly to the telco network. This eliminates the need for external CSU hardware, reducing rack space requirements and potential points of failure in the trunk path.

Flexible DFC Slot Installation

The CT3 DFC card can be installed in any of the three DFC feature card slots on the AS5350 chassis. This modular architecture allows network engineers to mix trunk cards and universal port cards to match exact capacity requirements.

Multi-Trunk Signaling Support

Supports CAS (Channel Associated Signaling), PRI (Primary Rate Interface), and IMT (Inter-Machine Trunk) signaling types. This versatility enables deployment across diverse telephony environments and service provider networks.

Deployment Scenarios
Service Provider Voice POP

Service providers can deploy the AS535-DFC-CT3A in an AS5350XM gateway to terminate a full CT3 trunk from the PSTN, delivering high-density VoIP and fax services from a single 1RU platform. The consolidated T3 interface simplifies interconnection with the carrier network.

Enterprise High-Density Voice Gateway

Large enterprises with significant voice traffic volumes can use the CT3 DFC card to aggregate 28 T1 lines into a single trunk connection. This reduces physical cabling and patch panel requirements while maintaining full channelized access to each DS0.

Legacy Gateway Maintenance & Sparing

Organizations maintaining existing Cisco AS5350 or AS5350XM deployments can source the AS535-DFC-CT3A as a replacement or spare CT3 trunk card. Keeping critical spares on hand minimizes downtime risk for production voice gateways that remain in service.

Channelized T3 Trunk Termination — Consolidate up to 28 T1 lines into a single CT3 interface for simplified cabling
Dial Feature Card (DFC) Architecture — Plug-in module installs into any of the three DFC slots on the AS5350 chassis
High-Density Voice & Data — Enables large-scale VoIP, fax, and dial-access deployments over T3 trunks
Compatible with AS5350XM & AS5400XM — Versatile CT3 trunk card works across multiple Cisco universal gateway platforms
Built-In CSU — Connects directly to the telco network without requiring external channel service units
Onboard Multiplexer — Multiplexes 28 CT1 lines into a single CT3 line on the card itself
CAS, PRI & IMT Trunk Support — Provides physical termination for multiple trunk signaling types
General
Manufacturer
Cisco Systems
Part Number
AS535-DFC-CT3A
Product Type
Dial Feature Card (DFC) — Trunk Card
Form Factor
Plug-in Module
Product Family
Voice Gateways
Description
AS5350 CT3A DFC card
Interface
Trunk Interface
Channelized T3 (CT3)
Multiplexing
28 CT1 lines into 1 CT3 line (onboard multiplexer)
Built-In CSU
Yes
Supported Signaling
CAS, PRI, IMT
Compatibility
Compatible Platforms
Cisco AS5350, AS5350XM, AS5400XM
Chassis Slot Type
DFC Feature Card Slot (3 slots available per chassis)
Alternate Part Number
AS54-DFC-CT3A (AS5400 series designation)
Lifecycle
Product Status
End-of-Life (EOL)
Platform EOL (AS5350XM)
February 21, 2013
Platform EOSL (AS5350XM)
February 28, 2018
Compatibility Notes

Compatible Platforms:

  • Cisco AS5350 Universal Gateway
  • Cisco AS5350XM Universal Gateway
  • Cisco AS5400XM Universal Gateway (also referenced as AS54-DFC-CT3A)

Chassis Slot Requirement: Installs into any of the three DFC feature card slots on the AS5350/AS5350XM chassis.

Platform Status: The Cisco AS5350 platform has reached End-of-Life (EOL). The AS5350XM reached End-of-Sale on May 1, 2005, with End-of-Life on February 21, 2013, and End-of-Service-Life on February 28, 2018. Cisco TAC support is no longer available for these platforms.

Downloads & Resources
AS5350XM Universal Gateway Datasheet (PDF) (cisco.com — search for 'Cisco AS5350XM Universal Gateway Data Sheet' or reference archived Cisco product documentation)
Frequently Asked Questions

The AS535-DFC-CT3A is compatible with the Cisco AS5350, AS5350XM, and AS5400XM universal gateway chassis. It installs into any of the three DFC feature card slots on the AS5350/AS5350XM.

These are cross-compatible CT3 DFC cards. The AS535-DFC-CT3A is designated for the AS5350 platform and the AS54-DFC-CT3A for the AS5400 platform, but both are compatible with the AS5350XM and AS5400XM chassis.

No. The AS5350 and AS5350XM platforms have reached End-of-Life. The AS5350XM reached End-of-Service-Life on February 28, 2018. Cisco TAC support is no longer available, but pre-owned modules remain available through secondary market vendors.

The AS535-DFC-CT3A uses an onboard multiplexer to consolidate 28 CT1 (channelized T1) lines into a single CT3 (channelized T3) trunk interface.

No. The CT3 DFC card includes a built-in CSU (Channel Service Unit) that connects directly to the telco network, eliminating the need for external CSU equipment.
Part Number Product Key Difference
AS535-DFC-8CT1 AS5350 Octal T1/PRI DFC Card Provides 8 individual T1/PRI interfaces instead of a single consolidated CT3 trunk — suited for deployments with separate T1 circuits.
AS535-DFC-4CT1 AS5350 Quad T1/PRI DFC Card Offers 4 T1/PRI interfaces for mid-density deployments that don't require full CT3 capacity.
AS535-DFC-2CT1 AS5350 Dual T1/PRI DFC Card Entry-level trunk card with 2 T1/PRI interfaces — lowest density option for small-scale voice gateway deployments.
AS54-DFC-CT3A AS5400 CT3A DFC Card Functionally equivalent CT3 DFC card designated for the AS5400/AS5400XM platform — cross-compatible with AS535-DFC-CT3A.
