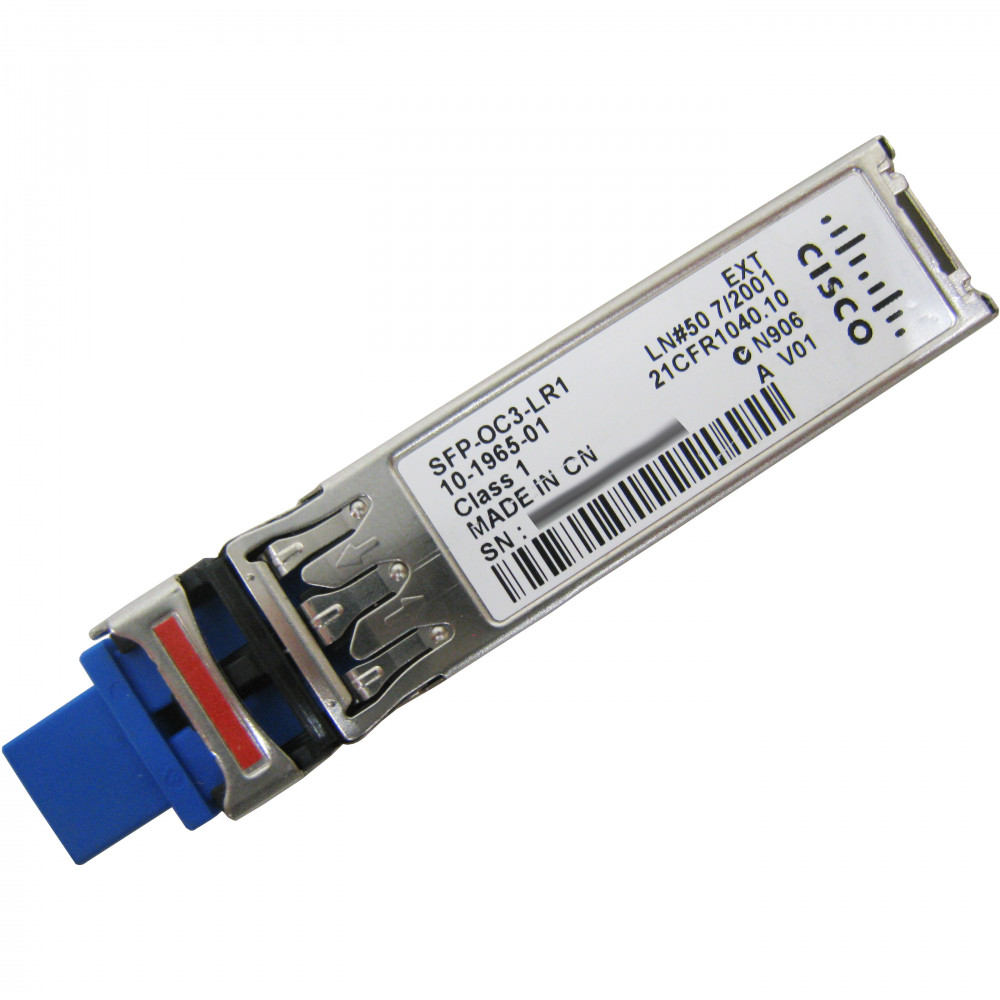

Cisco SFP-OC3-LR1

OC3/STM1 SFP, Single-mode fiber, Long Reach (40km), Original Cisco

In Stock
US $175.00
Add to cart Make offer
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The Cisco SFP-OC3-LR1 is a Small Form-Factor Pluggable (SFP) transceiver module manufactured by Cisco Systems. It is designed for use in optical networking applications and specifically supports OC-3/STM-1 (Optical Carrier level 3/Synchronous Transport Module level 1) data rates. The "LR1" in the product name stands for "Long Reach 1," indicating that it is capable of transmitting data over long distances. The module operates at a wavelength of 1310nm and can transmit data up to a distance of 10 kilometers (6.2 miles) over single-mode fiber optic cables. It supports both single-mode and multimode fiber types. The Cisco SFP-OC3-LR1 is commonly used in networking equipment such as routers and switches to provide high-speed connectivity over optical networks.

Specifications

Duplex
Full
Data Rate
155 Mbps
Fiber Type
Single-mode
Wavelength
1310 nm
Compatibility
Multi-Vendor
Hot Swappable
Yes
Connector Type
LC
Auto-Negotiation
No
Power Consumption
1.0W
Max Cable Distance
10 km
Operating Temperature Range
-5°C to 85°C
MTBF (Mean Time Between Failures)
1,000,000 hours
Digital Optical Monitoring (DOM) Support
Yes
