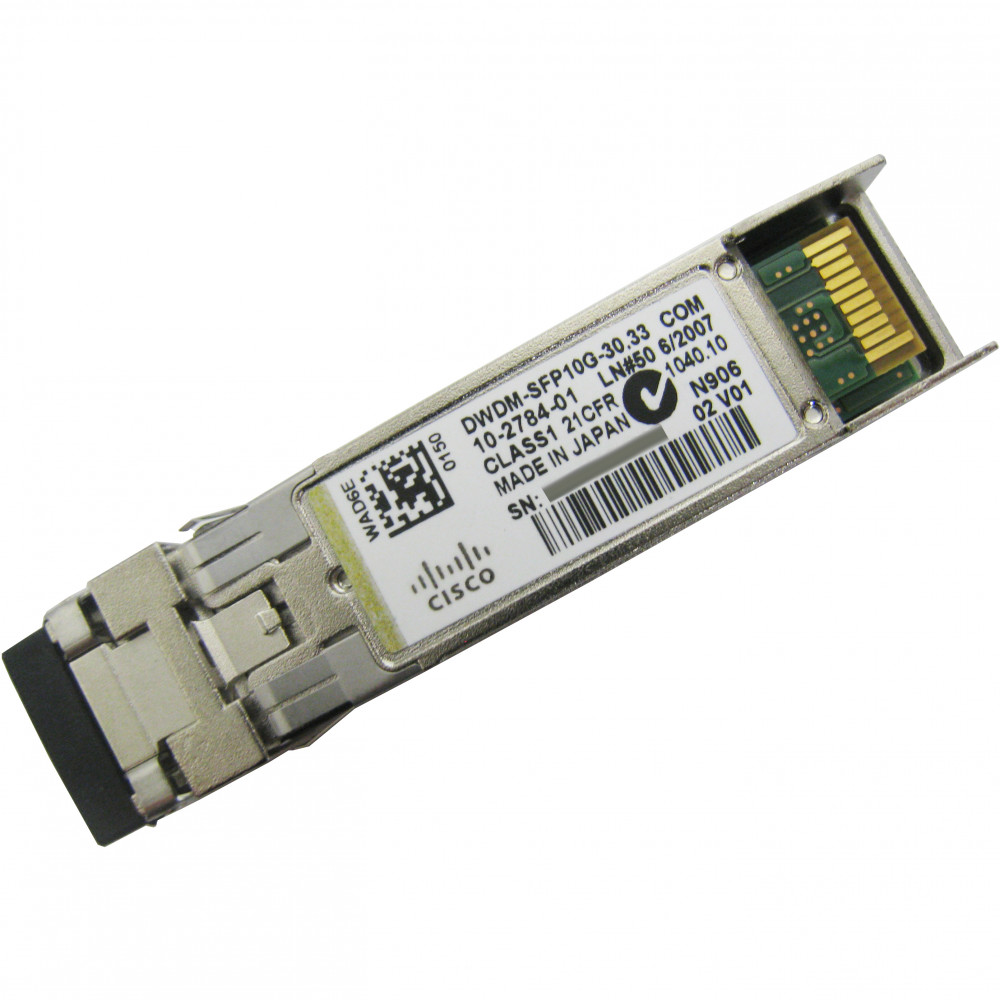

Cisco DWDM-SFP10G-30.33
10GBASE-DWDM 1530.33 nm SFP10G (100-GHz ITU grid), Original Cisco
In Stock

                US $1,000.00

              Product Highlights
Family
                  Transceivers
                Brand
                  Cisco
                Warranty
                  Lifetime (see details)
                Availability
                  Usually Ships Same Day if Ordered by 1PM PST

                  The Cisco DWDM-SFP10G-30.33 is a Cisco Dense Wavelength-Division Multiplexing (DWDM) Small Form-Factor Pluggable (SFP) transceiver module. It is designed to provide high-speed data connectivity over long distances in optical networks.
The "30.33" in the product name refers to the specific wavelength channel that this transceiver operates on. In DWDM systems, multiple wavelengths or channels are used to transmit data simultaneously over a single optical fiber. Each channel is assigned a specific wavelength, and the DWDM-SFP10G-30.33 operates on the 30.33 wavelength.
This transceiver supports data rates of up to 10 Gbps (Gigabits per second) and can transmit data over distances of up to 80 kilometers (49.7 miles) in DWDM networks. It uses a standard SFP form factor, making it compatible with a wide range of Cisco networking devices that support SFP transceivers.
Overall, the Cisco DWDM-SFP10G-30.33 is a specific model of SFP transceiver that enables high-speed, long-distance data transmission in DWDM optical networks.

              Duplex
                Full
              Data Rate
                10 Gbps
              Fiber Type
                Single-mode
              Wavelength
                1530.33 nm
              Hot Swappable
                Yes
              Connector Type
                LC duplex
              Interface Type
                SFP+
              Max Cable Distance
                80 km
              Operating Temperature Range
                -5°C to 70°C
              Optical Monitoring (Temperature)
                Yes
              Optical Monitoring (Optical Power)
                Yes
              Optical Monitoring (Receiver Power)
                Yes
              Optical Monitoring (Laser Bias Current)
                Yes
              Digital Optical Monitoring (DOM) Support
                Yes
              Optical Monitoring (Transmitter Voltage)
                Yes
