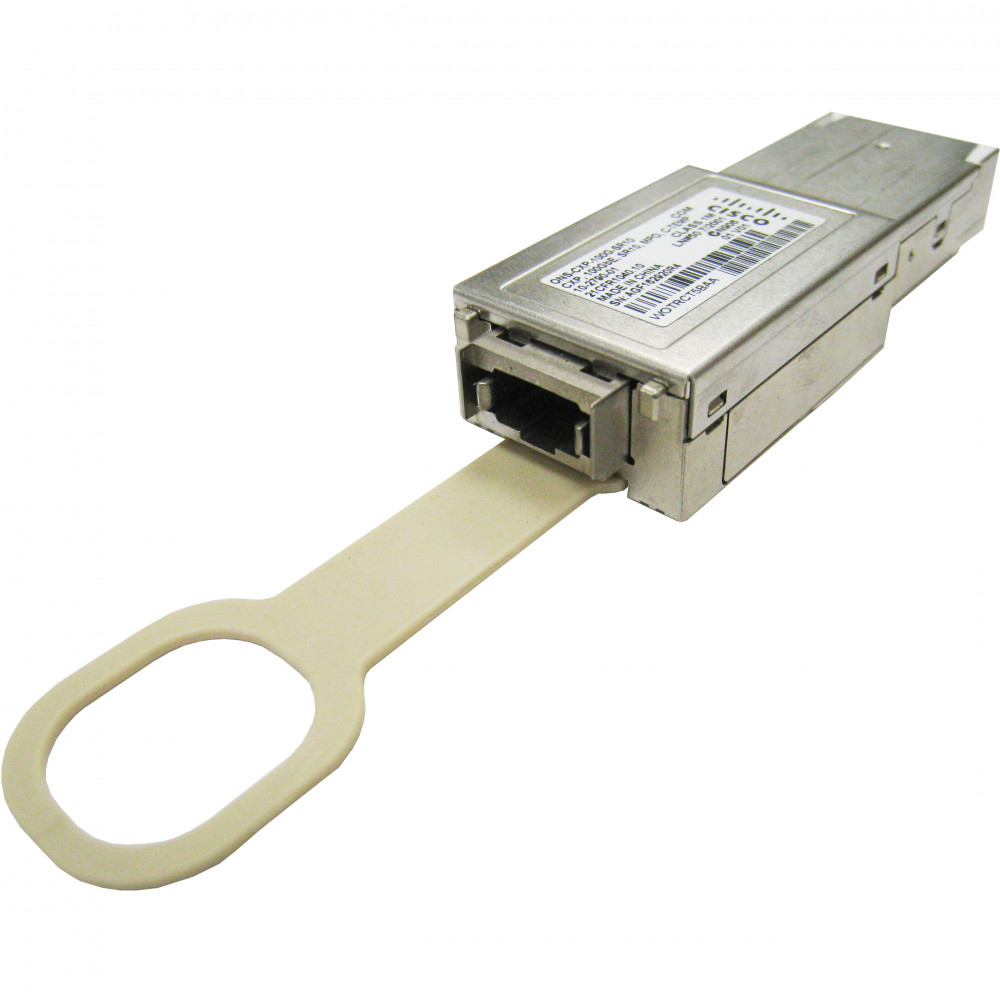

Cisco CXP-100G-SR12

CXP form factor, 100GBASE-SR10 compliant, no breakout, Original Cisco

In Stock
US $75.00
Add to cart Make offer
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The Cisco CXP-100G-SR12 is a high-speed pluggable transceiver module designed for use in data center and high-performance computing networks. It supports 100 Gigabit Ethernet connectivity and uses a 12-fiber MPO/MTP connector interface. The CXP-100G-SR12 transceiver operates over multi-mode fiber optic cables and has a maximum reach of up to 100 meters. It is commonly used in applications that require high-bandwidth and low-latency connections, such as data center interconnects, server clustering, and storage area networks.

Specifications

Data Rate
100 Gbps
Fiber Type
Multimode
DOM Support
Yes
Fiber Count
12
Form Factor
CXP
Hot Pluggable
Yes
Link Training
Yes
Connector Type
MPO/MTP
Optical Components
VCSEL
Supported Protocols
  • Ethernet
  • Fibre Channel
  • InfiniBand
Operating Temperature Range
0 to 70 degrees Celsius
Digital Optical Monitoring (DOM)
Yes
OTN/FEC (Forward Error Correction)
Yes
