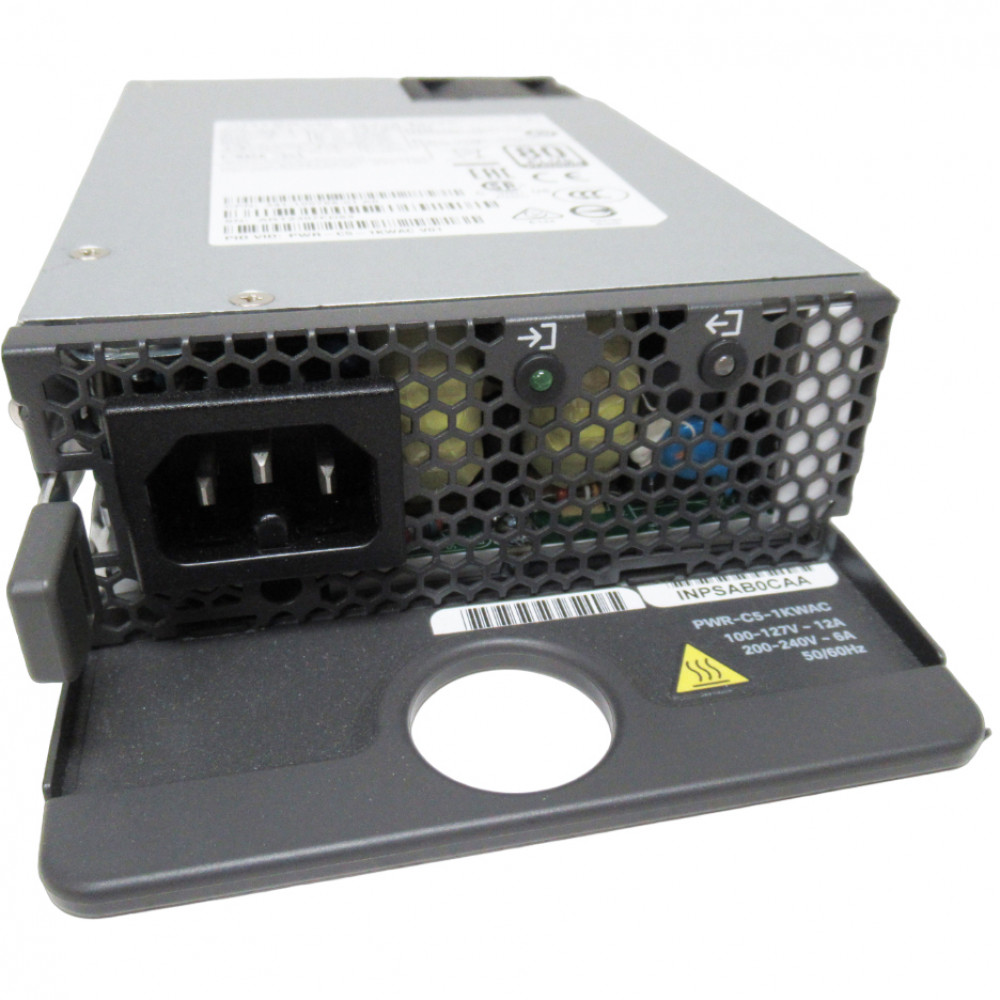

Cisco PWR-C5-1KWAC
1KW AC Config 5 Power Supply
Product Highlights
What's Included
When your Catalyst 9200 deployment demands reliable, high-wattage power for PoE+ endpoints — IP phones, access points, cameras — a mismatched or undersized power supply puts your entire access layer at risk. The Cisco PWR-C5-1KWAC eliminates that concern with a purpose-built 1000W AC Config 5 power supply module engineered for the Catalyst 9200 and 9200L switch platforms.
This hot-swappable, plug-in module accepts autoranging 100–240 VAC input and delivers a regulated 54V at 16.5A output, providing the full wattage needed by 48-port PoE+ switch models. Internal fans ensure consistent thermal management without requiring external cooling accessories. Whether installed as the primary power supply or added to the second slot for 1+1 redundancy, the PWR-C5-1KWAC integrates cleanly into the Catalyst 9200 chassis with tool-free insertion.
Ideal for enterprise campus access layers, branch offices, and education environments running high-density PoE, this power supply ships with an AC power cord and is ready to deploy out of the box. For organizations standardizing on the Catalyst 9200 platform, the PWR-C5-1KWAC is the Cisco-validated 1KW option for Config 5 power slots — ensuring compatibility, supportability, and long-term operational confidence.
Features & Benefits
1000W PoE-Ready Power Delivery
The PWR-C5-1KWAC delivers 1000 watts of AC power with a 54V @ 16.5A output rating, purpose-built for 48-port PoE+ Catalyst 9200 models. This ensures your switch can power a full complement of PoE endpoints — access points, IP phones, and surveillance cameras — without throttling the PoE budget.
Hot-Swappable Redundancy
When deployed as a redundant (secondary) power supply, the PWR-C5-1KWAC is fully hot-swappable, allowing insertion or removal without powering down the switch. When used as the primary PSU, it is field-replaceable. This flexibility minimizes downtime during maintenance windows and supports high-availability network designs.
Autoranging Global Input
With an autoranging input voltage of 100–240 VAC at 50–60 Hz, this power supply adapts automatically to local power grids worldwide. There is no manual voltage switch to set, reducing deployment errors and simplifying global procurement for multi-site organizations.
Integrated Thermal Management
Built-in internal fans provide active cooling for the power supply module, maintaining reliable operation across the supported environmental range. This eliminates the need for separate fan trays or external cooling accessories dedicated to the PSU.
Tool-Free Plug-In Installation
The compact plug-in module form factor slides directly into the Catalyst 9200 power supply bay. An extraction handle simplifies removal, making planned replacements and upgrades fast and straightforward — even in tight rack environments.
Deployment Scenarios
Enterprise Campus Access Layer
Deploy the PWR-C5-1KWAC in Catalyst 9200 or 9200L 48-port PoE+ switches serving dense office floors with IP phones, wireless access points, and security cameras. The 1000W capacity ensures the full PoE budget is available across all ports without power allocation compromises.
Branch Office with Power Redundancy
Add a second PWR-C5-1KWAC to the redundant power supply slot for 1+1 power protection in remote or branch locations where on-site IT support is limited. Hot-swap capability means a failed PSU can be replaced without a network outage.
Education and Healthcare Facilities
Schools, universities, and hospitals running high-density PoE for classroom APs, digital signage, and connected medical devices benefit from the reliable 1KW power delivery. The autoranging input simplifies deployment across buildings with varying electrical infrastructure.
Spare and Inventory Standardization
IT teams managing fleets of Catalyst 9200 and 9200L 48-port PoE switches can standardize on the PWR-C5-1KWAC as their 1KW Config 5 spare, reducing SKU complexity in the parts inventory and ensuring rapid replacement during failures.
General
Electrical
Physical
Environmental
Compatibility Notes
Compatible Cisco Catalyst Switch Models
The PWR-C5-1KWAC is a Config 5 power supply. It is compatible with the following Catalyst 9200 and 9200L switch models:
Catalyst 9200L (C5 only — C6 variant is NOT supported on C9200L):
- C9200L-48P-4G
- C9200L-48P-4X
- C9200L-48PXG-4X
- C9200L-48PXG-2Y
Catalyst 9200 (C5 and C6 variants can be mixed in slots A & B):
- C9200-48P
- C9200-48PB
- C9200-48PXG
Important Notes:
- The C6 variant (PWR-C6-1KWAC) is not supported on C9200L models. Use only PWR-C5-1KWAC for C9200L switches.
- On C9200 models, PWR-C5-1KWAC and PWR-C6-1KWAC have no functional difference and can be mixed in slots A and B.
- Each switch chassis has two internal power supply slots. The second slot ships with a blank cover (PWR-C5-BLANK) that must be replaced when adding a redundant PSU.
- The power supply uses an IEC 320-C16 input receptacle. Ensure the correct country-specific AC power cord (CAB-TA-xxx) is used.
- Do not substitute PWR-C5-125WAC or PWR-C5-600WAC for this unit — the 1KW supply is required for 48-port full PoE+ models.
Downloads & Resources
Frequently Asked Questions
| Part Number | Product | Key Difference |
|---|---|---|
| PWR-C6-1KWAC | Cisco 1KW AC Config 6 Power Supply | Same 1000W electrical specs; Config 6 variant supported on C9200 models but NOT on C9200L — choose C5 for C9200L deployments. |
| PWR-C5-600WAC | Cisco 600W AC Config 5 Power Supply | Lower 600W capacity for 24-port PoE+ models; not suitable for 48-port full PoE+ switches that require the 1KW supply. |
| PWR-C5-125WAC | Cisco 125W AC Config 5 Power Supply | 125W supply for data-only (non-PoE) C9200/C9200L models; 12V output vs. 54V — not interchangeable with the 1KW unit. |
| PWR-C5-1KWAC/2 | Cisco 1KW AC Config 5 Secondary Power Supply | Same hardware as PWR-C5-1KWAC but ordered specifically as the secondary/redundant PSU SKU for the second power slot. |
