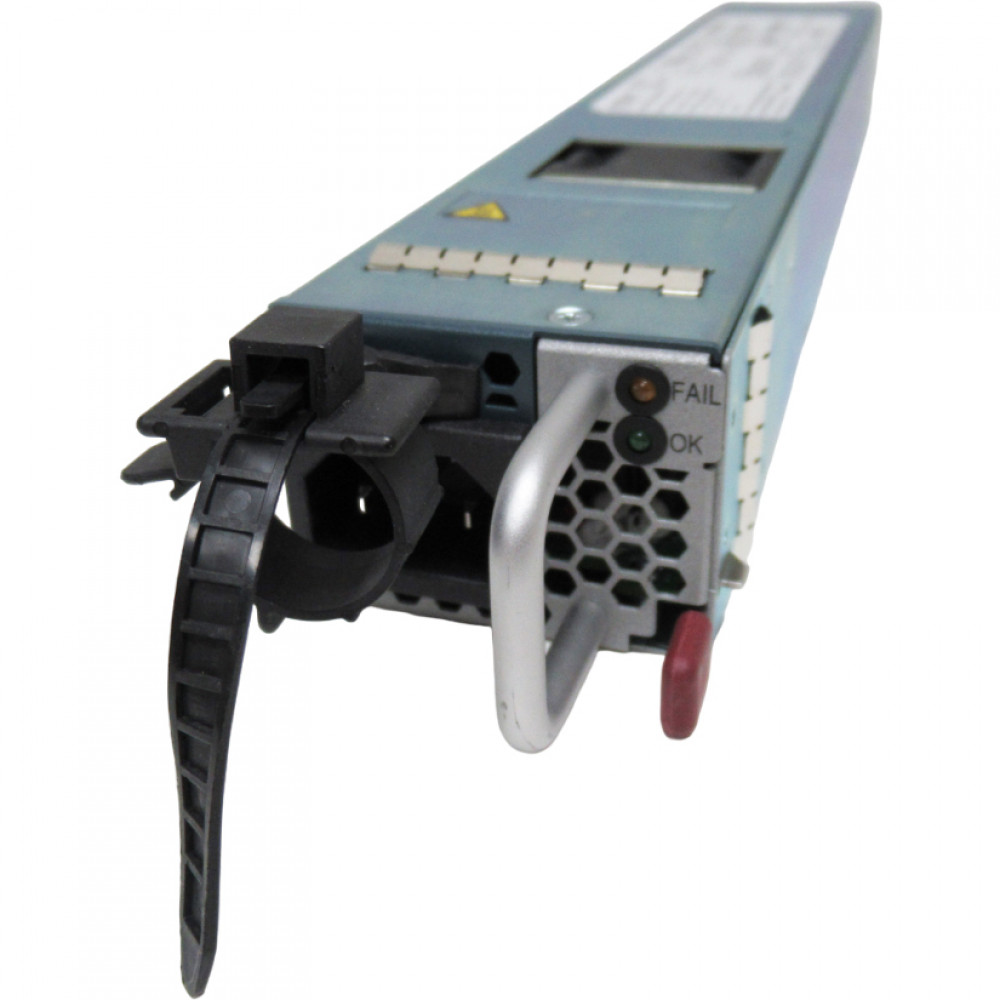

Cisco NXA-PAC-1100W-PI2

Nexus AC 1100W PSU - Port Side Intake

In Stock
US $295.00
Add to cart Make offer
Product Highlights
Family
Switches
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days
What's Included
(1) AC Power Cord

Unplanned downtime from a power supply failure can cascade across your data center fabric in seconds. The Cisco NXA-PAC-1100W-PI2 is a 1100-watt AC power supply module purpose-built for Cisco Nexus 9000 Series switches, delivering the reliable, high-efficiency power your critical infrastructure demands.

Designed with port-side intake (back-to-front) airflow, this PSU aligns with intake-cooled rack configurations to maintain proper hot-aisle/cold-aisle separation. Its hot-swappable, plug-in module form factor enables live replacement and supports 1+1 or N+1 redundancy when paired with a second unit — ensuring uninterrupted switch operation even during a PSU swap or failure.

The NXA-PAC-1100W-PI2 accepts a universal 100–240V AC input at 50/60 Hz and delivers a clean 12V DC output at up to 1100 watts. Certified to 80Plus Platinum efficiency, it minimizes energy waste and heat generation, reducing both electricity costs and cooling load. Whether you're building out a new Nexus 9300-series leaf-spine fabric or stocking spares for an existing deployment, this PSU provides the power density, airflow compatibility, and operational resilience that enterprise and data center environments require.

Features & Benefits
High-Efficiency Power Delivery

Certified to 80Plus Platinum efficiency standards, the NXA-PAC-1100W-PI2 converts AC input to 12V DC output with minimal energy loss. This translates directly to lower electricity bills and reduced thermal output, easing the burden on your facility's cooling infrastructure.

Port-Side Intake Airflow

The PI2 designation indicates port-side intake (back-to-front) airflow direction. This is critical for racks configured with cold air entering at the front (port side) and exhausting at the rear. Matching PSU airflow to your fan tray direction prevents recirculation and hot spots, protecting component longevity.

Hot-Swappable Redundancy

Install two PSUs in a supported Nexus switch to achieve 1+1 or N+1 redundancy. If one unit fails or needs replacement, the second continues powering the switch with zero interruption. The hot-swappable design means you can pull and replace a PSU live — no maintenance window required.

Universal AC Input

With a 100–240V AC input range at 50/60 Hz, this PSU operates on virtually any commercial power grid worldwide. This simplifies procurement and standardization for organizations with geographically distributed data centers or global supply chains.

Tool-Free Serviceability

The plug-in module form factor allows technicians to install or remove the PSU without tools. Integrated status LEDs provide immediate visual feedback on power and fault conditions, accelerating troubleshooting and reducing mean time to repair.

Deployment Scenarios
Data Center Leaf-Spine Fabric

Deploy in Nexus 9300-series leaf or spine switches powering a modern leaf-spine architecture. The 1100W capacity handles fully loaded switch configurations, while port-side intake airflow aligns with standard cold-aisle containment strategies.

Spare and Replacement Inventory

Stock as a pre-positioned spare for rapid field replacement across your Nexus 9000 fleet. The hot-swappable design means a technician can restore redundancy in minutes without scheduling downtime, keeping your SLAs intact.

Redundancy Upgrade for Existing Switches

Add a second NXA-PAC-1100W-PI2 to a Nexus switch currently running on a single PSU to achieve 1+1 power redundancy. This eliminates the power supply as a single point of failure in business-critical network paths.

1100W AC Output Power — Delivers ample, reliable power for high-density Nexus switch deployments
Port-Side Intake Airflow — Matches back-to-front cooling designs for proper data center hot/cold aisle alignment
Hot-Swappable Design — Replace or add PSUs without powering down the switch, minimizing maintenance windows
80Plus Platinum Efficiency — Reduces energy waste and lowers operating costs in power-conscious environments
1+1 / N+1 Redundancy Support — Pair with a second PSU for continuous operation during a power supply failure
Universal AC Input (100–240V) — Operates globally without voltage conversion, simplifying international deployments
Plug-In Module Form Factor — Tool-free installation and removal for fast, simple field serviceability
Includes AC Power Cord — Ships ready to connect with one included AC power cord
General
Manufacturer
Cisco
Part Number
NXA-PAC-1100W-PI2
Product Type
AC Power Supply Module
Form Factor
Plug-in Module (Hot-Swappable)
Designed For
Cisco Nexus 9000 Series Switches
Airflow Direction
Port-Side Intake (Back-to-Front)
Electrical — Input
Input Voltage
100–240V AC (Range: 90–132 VAC / 180–264 VAC)
Input Frequency
50/60 Hz
Maximum Input Current
13A at 100 VAC / 6A at 240 VAC
Maximum Input VA
1300 VA at 100 VAC
Maximum Inrush Current
33A
Electrical — Output
Maximum Output Power
1100W
Output Voltage
12V DC
Standby Voltage
12V DC
Hold-Up Time
12 ms at 1100W
Efficiency & Compliance
Efficiency Rating
80Plus Platinum (Climate Savers Platinum)
RoHS Compliance
RoHS-6
Physical
Weight
2.42 lb (1.1 kg)
Redundancy
Supports 1+1 / N+1 (platform dependent)
Environmental
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-40°F to 158°F (-40°C to 70°C)
Humidity
5% to 95% (non-condensing)
Operating Altitude
0 to 13,123 ft (0 to 4,000 m)
Compatibility Notes

Airflow Direction: The NXA-PAC-1100W-PI2 uses port-side intake (back-to-front) airflow. All PSUs and fan modules in a given switch chassis must share the same airflow direction. Do not mix PI (intake) and PE (exhaust) units in the same switch.

Compatible Platforms: Designed for select Cisco Nexus 9000 Series switches. Always verify PSU compatibility against the hardware installation guide for your specific Nexus switch model before ordering.

Counterpart: The port-side exhaust equivalent is the NXA-PAC-1100W-PE2 (front-to-back / blue latch).

Downloads & Resources
Frequently Asked Questions

PI2 denotes port-side intake (back-to-front) airflow, while PE2 denotes port-side exhaust (front-to-back) airflow. All PSUs and fan modules in a switch must use the same airflow direction. Choose based on your rack's hot-aisle/cold-aisle configuration.

No. Cisco requires all power supplies and fan trays in a single chassis to share the same airflow direction. Mixing intake and exhaust units causes airflow conflicts and can lead to overheating.

Yes. The PSU is a hot-swappable plug-in module. When a redundant PSU is installed, you can remove and replace this unit without powering down the switch.

The NXA-PAC-1100W-PI2 is designed for select Cisco Nexus 9000 Series switches. Always consult the hardware installation guide for your specific switch model to confirm PSU compatibility before ordering.

The NXA-PAC-1100W-PI2 ships with one (1) AC power cord as listed in the bill of materials.
Part Number Product Key Difference
NXA-PAC-1100W-PE2 Nexus 1100W AC PSU — Port-Side Exhaust Same 1100W capacity but with port-side exhaust (front-to-back) airflow — choose based on your rack cooling orientation.
NXA-PAC-750W-PI Nexus 750W AC PSU — Port-Side Intake Lower 750W capacity at a lower cost; suitable for switches with lighter power requirements and intake airflow.
NXA-PHV-1100W-PI Nexus 1100W HVAC/HVDC PSU — Port-Side Intake Supports high-voltage AC and DC input for facilities with -48V DC or 277V AC power distribution.
NXA-PAC-1200W-PI Nexus 1200W AC PSU — Port-Side Intake Higher 1200W capacity for switches with greater power demands; same intake airflow direction.
