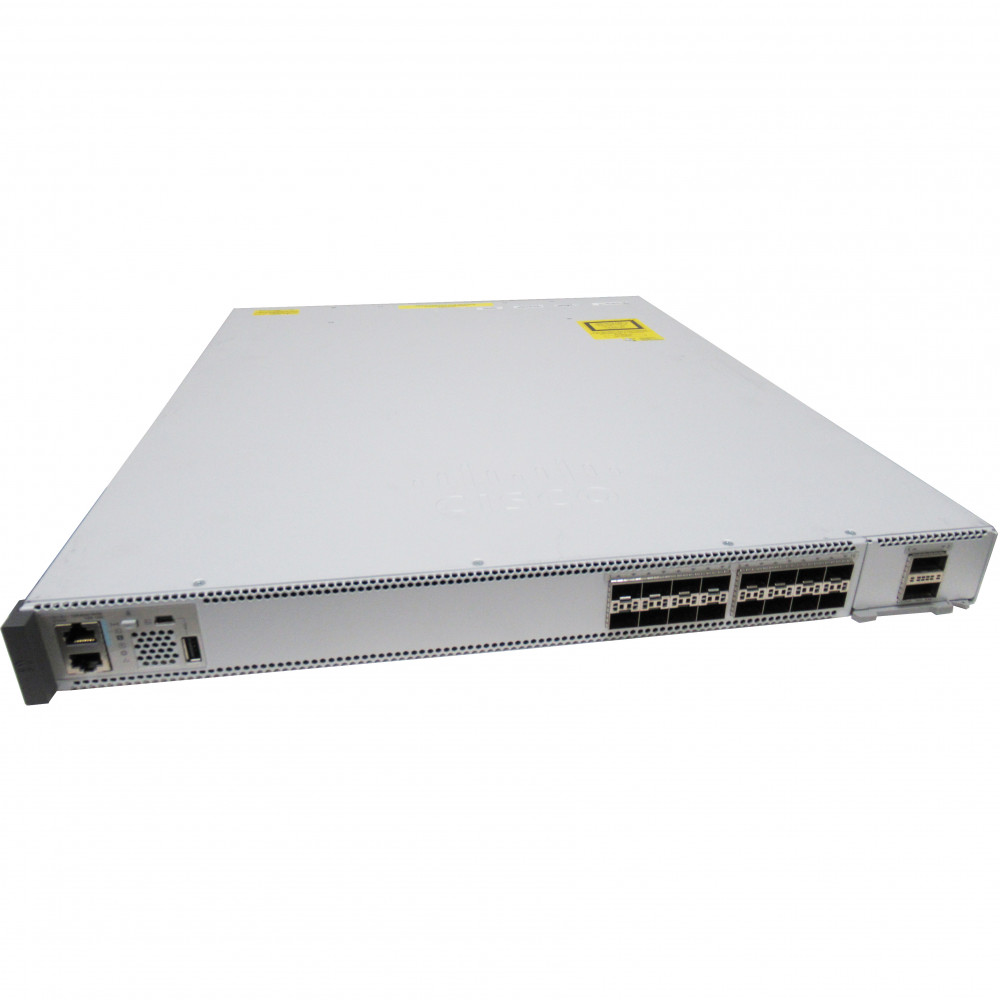

Cisco C9500-16X-2Q-A
Catalyst 9500 16-port 10G, 2-port 40G switch
Product Highlights
Family
Switches
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Contact Us for Availability
What's Included
16GB DRAM, 16GB Flash
(5) FAN-T4-R
(1) PWR-C4-950WAC-R
(1) Rackmount Kit (C9500-ACC-KIT-19I)
(1) AC Power Cord
(5) FAN-T4-R
(1) PWR-C4-950WAC-R
(1) Rackmount Kit (C9500-ACC-KIT-19I)
(1) AC Power Cord
Twitter Reddit Facebook
Information
The Cisco C9500-16X-2Q-A is a member of the Cisco Catalyst 9500 Series of switches. It is a high-performance, fixed-configuration switch designed for enterprise networks.
The "16X" in the model name refers to the 16 fixed 10 Gigabit Ethernet ports on the switch, which can support both copper and fiber connections. The "2Q" indicates that the switch has two 40 Gigabit Ethernet uplink ports for connecting to higher-level switches or network devices. The "A" signifies that it is an advanced version of the switch.
The Cisco C9500-16X-2Q-A switch offers advanced features such as high-density 10 Gigabit Ethernet connectivity, support for Cisco StackWise Virtual technology for virtualization and stacking, and advanced security features. It is designed to provide high performance, scalability, and flexibility for modern enterprise networks.
Specifications
RAM
16 GB
Ports
16
Weight
16.5 lbs
Modular
No
Stackable
Yes
Dimensions
- Depth
- 19.5 inches
- Width
- 17.5 inches
- Height
- 1.73 inches
Flash Memory
16 GB
Redundant Fans
Yes
Forwarding Rate
360 Mpps
VLANs Supported
4096
Hot-Swappable Fans
Yes
Switching Capacity
480 Gbps
IPv4 Routing Entries
128,000
IPv6 Routing Entries
64,000
MAC Address Table Size
64,000 entries
Redundant Power Supply
Yes
Power over Ethernet (PoE)
No
Hot-Swappable Power Supply
Yes
