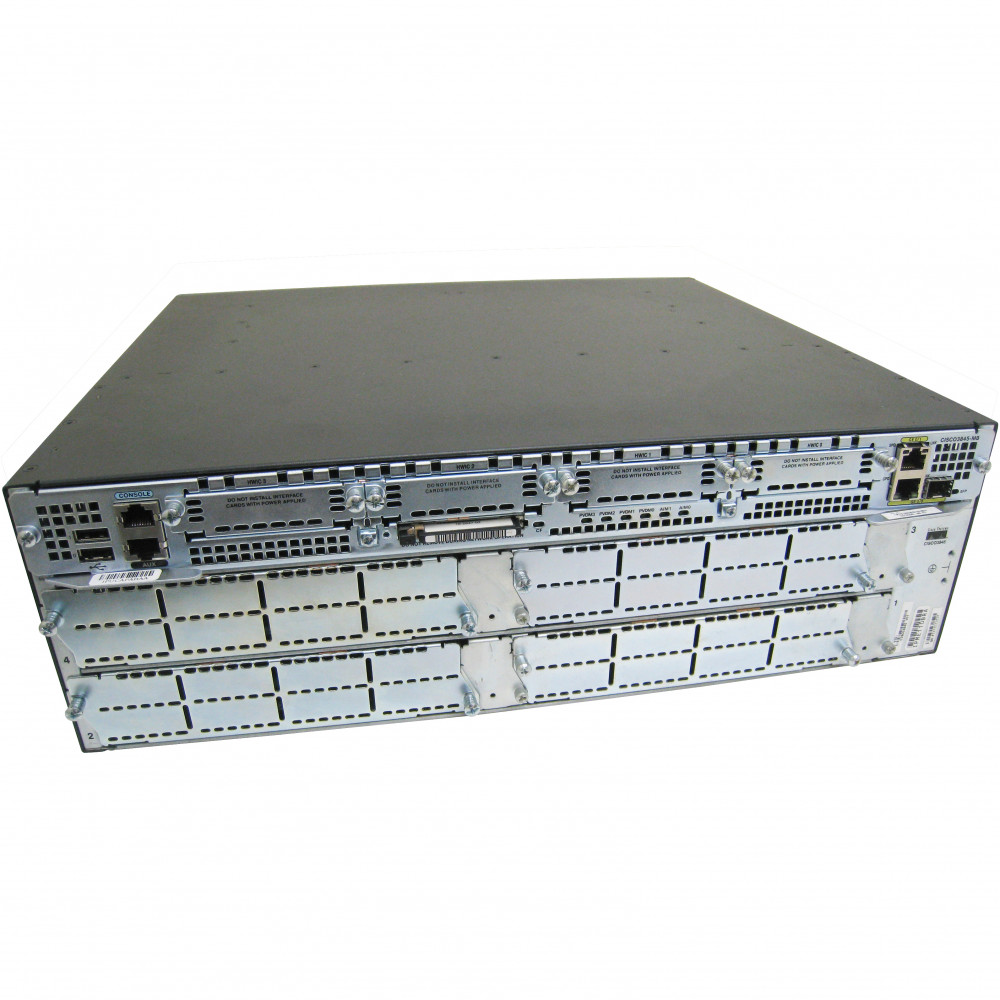

Cisco C3845-VSEC-SRST/K9

3845 VSEC Bundle w/PVDM2-64,Adv IPServ

In Stock
US $320.00
Add to cart Make offer
Product Highlights
Family
Routers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
What's Included
512MB DRAM (2x MEM3800-256D)
128MB Flash (1x MEM3800-128CF)
(1) PWR-3845-AC
(1) AC Power Cord
(1) Rackmount Kit (ACS-3845RM-19)

(1) PVDM2-64

Branch offices and remote sites that need to consolidate routing, voice, and security into a single platform face a common challenge: managing multiple appliances increases cost, complexity, and points of failure. The Cisco C3845-VSEC-SRST/K9 solves this by delivering an integrated services router purpose-built for converged voice and security deployments.

This bundle pairs the Cisco 3845 Integrated Services Router with a PVDM2-64 digital signal processing module, the FL-SRST-240 Survivable Remote Site Telephony license, and Cisco IOS Advanced IP Services — giving you enterprise-grade routing, hardware-accelerated VPN encryption, and voice gateway capabilities in a single 3RU chassis. With 512 MB DRAM and 128 MB Flash pre-installed, the router is ready for complex multi-service configurations right out of the box.

The Cisco 3845 offers exceptional modularity with four enhanced network module (NME) slots, four high-speed WAN interface card (HWIC) slots, four PVDM slots, and two AIM slots, allowing you to scale WAN connectivity, add EtherSwitch modules, or expand DSP capacity as your network grows. Two built-in 10/100/1000 Gigabit Ethernet ports and an SFP slot provide flexible LAN and WAN uplink options. The SRST license ensures that IP phones at the remote site maintain call-processing capability even if the WAN link to the central call manager goes down — a critical resilience feature for distributed enterprises.

Note: The Cisco 3845 platform has reached End-of-Life status. This product is available in refurbished condition and is ideal for spare inventory, lab environments, or extending existing deployments.

Features & Benefits
Converged Voice & Security Services

The VSEC (Voice Security) bundle integrates hardware-based VPN encryption, Cisco IOS Firewall, and voice gateway functionality into a single router. This eliminates the need for standalone security appliances and voice gateways at each branch, reducing equipment costs and simplifying management.

Survivable Remote Site Telephony (SRST)

The included FL-SRST-240 license enables the Cisco 3845 to act as a local call-processing fallback for up to 240 IP phones. When the WAN connection to a centralized Cisco Unified Communications Manager is lost, phones automatically register with the local SRST router, ensuring uninterrupted voice service at the remote site.

Advanced IP Services Routing

Cisco IOS Advanced IP Services provides the full enterprise routing feature set, including OSPF, EIGRP, BGP, IS-IS, MPLS, and IPv6 support. This makes the C3845-VSEC-SRST/K9 suitable for complex multi-protocol environments and MPLS L3VPN deployments at the network edge.

High Modularity & Expansion

With four NME slots, four HWIC slots, four PVDM slots, and two AIM slots, the Cisco 3845 supports over 90 interface modules. Add EtherSwitch modules for Layer 2 switching with PoE, T1/E1 voice cards, serial WAN interfaces, or additional DSP modules — scaling the platform as your branch requirements evolve.

Hardware-Accelerated VPN

Embedded on-board encryption acceleration supports DES, 3DES, and AES (128/192/256-bit) for IPsec VPN tunnels. This offloads cryptographic processing from the main CPU, maintaining routing performance while securing site-to-site and remote-access VPN connections.

Deployment Scenarios
Branch Office Voice & Data Convergence

Deploy the C3845-VSEC-SRST/K9 at medium-to-large branch offices to consolidate WAN routing, IP telephony, and site-to-site VPN into one device. The PVDM2-64 handles voice transcoding while SRST provides telephony survivability during WAN failures.

Secure Remote Site with MPLS/VPN

Use Advanced IP Services to terminate MPLS L3VPN connections at the branch edge while leveraging the embedded firewall and IPsec VPN for defense-in-depth. The modular design allows adding WAN interface cards as bandwidth requirements grow.

Lab & Test Environment

As an End-of-Life platform, the Cisco 3845 remains an excellent choice for CCIE lab preparation, proof-of-concept testing, and training environments where full IOS Advanced IP Services functionality is needed at a fraction of the cost of current-generation hardware.

Spare Inventory for Existing Deployments

Organizations still running Cisco 3800 Series routers in production can maintain business continuity by stocking pre-configured spare units. The C3845-VSEC-SRST/K9 ships with the same memory and DSP configuration as a typical production deployment.

Cisco 3845 ISR Platform — Converge routing, security, and voice services into a single chassis
PVDM2-64 DSP Module Included — Voice-ready out of the box with digital signal processing for media transcoding
FL-SRST-240 License — Survivable Remote Site Telephony keeps phones operational during WAN outages
Advanced IP Services IOS — Full enterprise routing with OSPF, EIGRP, BGP, and MPLS support
Embedded Hardware VPN Encryption — Secure site-to-site and remote-access VPN without add-on modules
4 NME + 4 HWIC Expansion Slots — Highly modular design supports WAN, switching, and voice modules
512 MB DRAM / 128 MB Flash — Pre-configured memory for demanding multi-service workloads
Redundant Power Supply Support — Protect uptime with optional dual AC or DC power supplies
General
Manufacturer
Cisco Systems
Part Number
C3845-VSEC-SRST/K9
Product Type
Integrated Services Router
Product Series
Cisco 3800 Series ISR
Bundle Type
Voice Security (VSEC) with SRST
IOS Feature Set
Advanced IP Services
SRST License
FL-SRST-240 (up to 240 IP phones)
EOL Status
End-of-Life (EOL: November 1, 2011)
Interfaces & Slots
Fixed LAN Ports
2 × 10/100/1000 Gigabit Ethernet (RJ-45)
SFP Slot
1 × SFP (Gigabit Ethernet)
Network Module Slots (NME)
4
HWIC Slots
4
PVDM Slots
4
AIM Slots
2
USB Ports
2
Console Port
1 × RJ-45 (up to 115.2 kbps)
Auxiliary Port
1 × RJ-45 (up to 115.2 kbps)
Memory
DRAM Installed
512 MB (2× MEM3800-256D)
Maximum DRAM
1 GB
Flash Installed
128 MB Compact Flash (1× MEM3800-128CF)
Flash Type
CompactFlash (CF) Card
Included DSP Module
DSP Module
PVDM2-64
Supported Voice Codecs
G.711, G.723.1, G.726, G.728, G.729, G.729a
Security
Embedded VPN Encryption
Yes (hardware-based)
Encryption Algorithms
DES, 3DES, AES-128, AES-192, AES-256
Firewall
Cisco IOS Firewall
Intrusion Prevention
Cisco IOS IPS
Power
Power Supply Included
1 × PWR-3845-AC (300W)
Input Voltage
100–240 VAC
Input Frequency
47–63 Hz
Typical Power Consumption
79W
Redundant Power Supply
Supported (second PSU optional)
Physical
Form Factor
Rack-mountable
Rack Units
3U
Dimensions (H × W × D)
5.25 × 17.25 × 16 in (133.3 × 438.1 × 406.4 mm)
Weight
20.4 kg (45 lbs)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Operating Humidity
5% to 95% (non-condensing)
Acoustic Noise (Typical)
56 dBA
Acoustic Noise (Maximum)
58 dBA
Compliance
Safety
UL 60950, IEC 60950-1, EN 60950-1, CAN/CSA C22.2 No. 60950, AS/NZS 60950
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Compatibility Notes

Platform: Cisco 3845 Integrated Services Router (ISR 3800 Series)

Included DSP Module: PVDM2-64 — compatible with Cisco 3800 PVDM slots. Supports voice codecs including G.711, G.723.1, G.726, G.728, G.729, and G.729a.

SRST License: FL-SRST-240 — supports fallback call processing for up to 240 Cisco IP phones. Requires Cisco Unified Communications Manager (CUCM) as the primary call-processing platform.

Memory Installed: 512 MB DRAM (2× MEM3800-256D), 128 MB Compact Flash (1× MEM3800-128CF). Maximum supported: 1 GB DRAM, 256 MB Flash.

Power Supply: PWR-3845-AC (300W). The Cisco 3845 chassis supports redundant power with a second optional power supply (AC, AC-IP, or DC).

Rack Mount: ACS-3845RM-19 kit included for standard 19-inch rack installation.

IOS Software: Ships with Cisco IOS Advanced IP Services feature set. Verify IOS version compatibility with your deployment requirements before installation.

Downloads & Resources
Cisco 3800 Series ISR Data Sheet (PDF) (cisco.com — search 'Cisco 3800 Series Integrated Services Routers Data Sheet')
Cisco 3800 Series Hardware Installation Guide (cisco.com — search 'Cisco 3845 Hardware Installation Guide')
SRST Configuration Guide (cisco.com — search 'Survivable Remote Site Telephony SRST Configuration Guide')
Frequently Asked Questions

The bundle includes a Cisco 3845 router chassis with 512 MB DRAM (2× MEM3800-256D), 128 MB Compact Flash (1× MEM3800-128CF), one PWR-3845-AC power supply, one AC power cord, one 19-inch rackmount kit (ACS-3845RM-19), and one PVDM2-64 DSP module. The FL-SRST-240 license and Advanced IP Services IOS are pre-loaded.

The Cisco 3845 hardware reached End-of-Life (EOL) on November 1, 2011, and End-of-Service-Life (EOSL) on November 1, 2016. Cisco no longer provides hardware support or software updates. Third-party maintenance providers can offer continued support for organizations still running this platform.

The FL-SRST-240 license included with this bundle supports fallback call processing for up to 240 Cisco IP phones. During a WAN outage, phones automatically re-register with the local SRST-enabled router to maintain voice service.

Yes. The Cisco 3845 chassis supports internal redundant power with any combination of the three supported power supply types: AC (PWR-3845-AC), AC with inline PoE (PWR-3845-AC-IP), and DC. A second power supply must be purchased separately.

The C3845-VSEC/K9 (VSEC) bundle includes the Cisco 3845 with PVDM2-64 and Advanced IP Services but does not include an SRST license. The C3845-VSEC-SRST/K9 adds the FL-SRST-240 license for survivable telephony at remote sites, making it the better choice for distributed voice deployments.
Part Number Product Key Difference
C3845-VSEC/K9 Cisco 3845 VSEC Bundle Same VSEC bundle without the FL-SRST license — choose this if SRST survivability is not required.
C3845-VSEC-CCME/K9 Cisco 3845 VSEC CCME Bundle Includes FL-CCME-240 (CallManager Express) instead of SRST — for standalone local call processing rather than WAN failover.
CISCO3845-V/K9 Cisco 3845 Voice Bundle Voice bundle with SP Services IOS instead of Advanced IP Services and no VSEC security features — lower cost for voice-only deployments.
C3845-H-VSEC/K9 Cisco 3845 High-Performance VSEC Bundle Includes AIM-VPN2/SSL-3 acceleration module, 512 MB Flash, and 1 GB DRAM — for higher VPN throughput and SSL VPN requirements.
