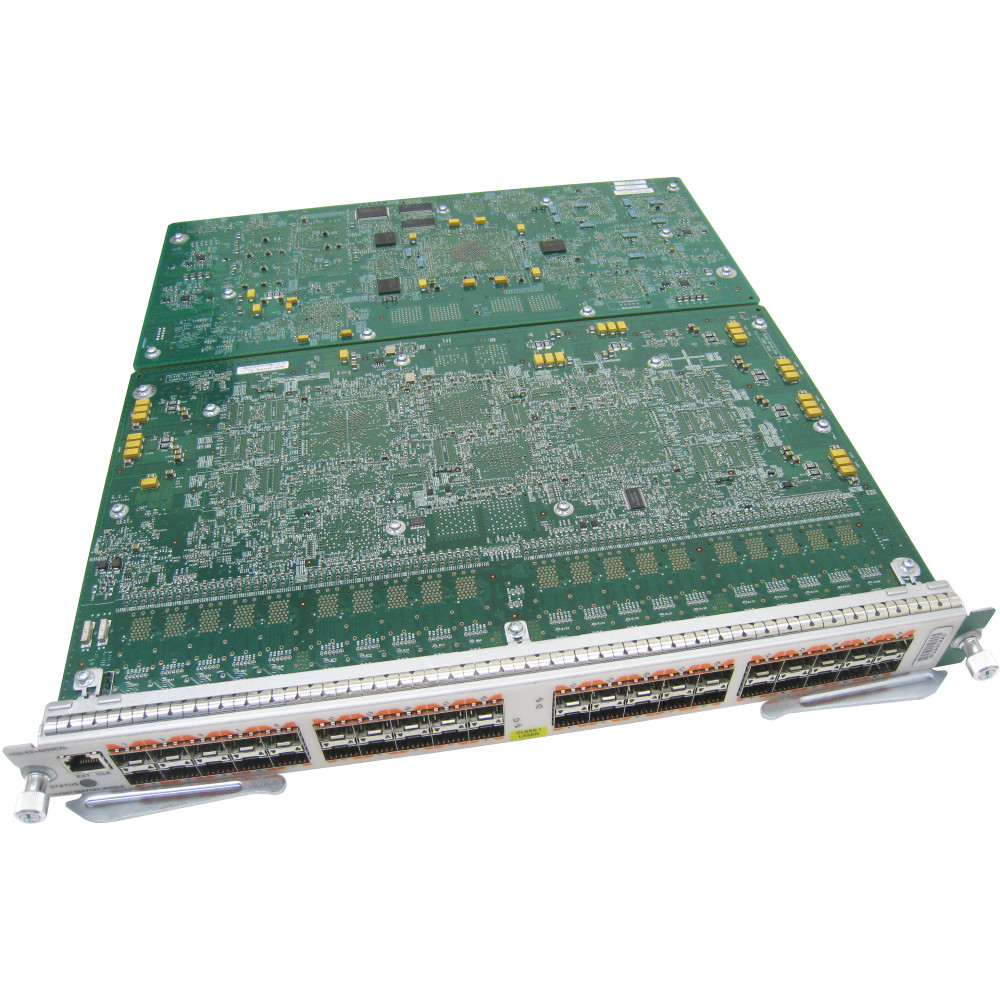

Cisco 7600-ES+40G3CXL

7600 ES+ Line Card, 40xGE SFP with DFC 3CXL

In Stock
US $12,500.00
Product Highlights
Family
Routers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days

When your Cisco 7600 Series router needs to deliver high-density Gigabit Ethernet services without compromising forwarding performance, the 7600-ES+40G3CXL is built for the job.

This Ethernet Services Plus (ES+) line card provides 40 ports of Gigabit Ethernet SFP connectivity and ships with an integrated DFC-3CXL (Distributed Forwarding Card 3CXL) that offloads packet forwarding from the supervisor engine, enabling line-rate performance across all ports. With 128,000 ingress and 128,000 egress hardware queues, 512 MB of packet buffer memory, and support for up to 96,000 MAC addresses, the card is purpose-built for demanding Carrier Ethernet, MPLS provider edge, mobile backhaul, and enterprise WAN/MAN environments.

The 7600-ES+40G3CXL uniquely combines Layer 2 switching and Layer 3 routing on a single line card, supporting up to 16,000 Ethernet service instances with hierarchical QoS, locally significant VLANs, and MPLS VPN. It occupies one slot in a Cisco 7600 chassis and supports up to eight ES+ cards per 7609/7609-S system. Note that the Cisco 7600 Series has reached End-of-Life status — customers planning new deployments are encouraged to evaluate the Cisco ASR 9000 Series as a migration path, while this card remains an excellent option for maintaining and expanding existing 7600 installations.

Features & Benefits
Distributed Forwarding with DFC-3CXL

The integrated DFC-3CXL offloads forwarding decisions from the Supervisor Engine 720, delivering line-rate performance directly on the line card. With 2 GB of memory on the DFC-3CXL, the card handles large routing and ACL tables locally, reducing supervisor CPU load and improving overall chassis scalability.

High-Density Gigabit Ethernet

Forty SFP ports in a single slot deliver maximum 1GE port density for aggregation and access-layer deployments. SFP flexibility lets you mix fiber types — including SX, LX/LH, ZX, and CWDM/DWDM optics — to match distance and media requirements across your network.

Advanced QoS & Traffic Management

With 128,000 ingress and 128,000 egress hardware queues, the ES+40 line card supports granular Class-Based Weighted Fair Queuing (CBWFQ), Low-Latency Queuing (LLQ), Weighted Random Early Detection (WRED), and DiffServ. These capabilities ensure predictable performance for voice, video, and mission-critical data traffic.

Carrier Ethernet Services at Scale

Support for up to 16,000 Ethernet service instances per line card, locally significant VLANs, IEEE 802.1ah (MAC-in-MAC), and MPLS VPN enables service providers to deliver differentiated Carrier Ethernet offerings. The card combines Layer 2 and Layer 3 services on a single module, simplifying architecture and reducing slot consumption.

Resilient & Serviceable Design

The 7600-ES+40G3CXL is hot-swappable, allowing field replacement without chassis downtime. Up to eight ES+ line cards can be installed in a Cisco 7609 or 7609-S chassis, providing scalable growth as network demands increase.

Deployment Scenarios
Carrier Ethernet Aggregation

Service providers can use the 40-port GE density and 16,000 Ethernet service instances to aggregate hundreds of customer-facing Ethernet circuits. MPLS VPN and hierarchical QoS enable differentiated service tiers on a single line card.

MPLS Provider Edge (PE)

Deployed as a PE-facing line card in an MPLS core, the 7600-ES+40G3CXL handles high-volume label switching with distributed forwarding via the DFC-3CXL. The large MAC address table and deep queuing buffers absorb traffic bursts at aggregation points.

Enterprise WAN/MAN Access Layer

Large enterprises with existing Cisco 7600 chassis can consolidate branch and campus WAN connections onto a single high-density line card. The combination of Layer 2 and Layer 3 services reduces the need for separate switching and routing modules.

Mobile Wireless Backhaul

The card's deep buffering (512 MB packet memory) and advanced QoS features make it well-suited for aggregating mobile backhaul traffic from cell sites, where bursty traffic patterns and strict latency requirements demand robust queue management.

40x 1GE SFP Ports — High-density Gigabit Ethernet connectivity in a single line card slot
Integrated DFC-3CXL — Offloads forwarding from the supervisor engine for line-rate distributed performance
128K Ingress & Egress Queues — Granular traffic management for complex QoS deployments
Up to 96,000 MAC Addresses — Scales to support large Layer 2 domains without table exhaustion
16,000 Ethernet Service Instances — Deliver rich Carrier Ethernet services at scale per line card
Layer 2 + Layer 3 on One Card — Combine switching and routing services without additional modules
MPLS VPN & Advanced QoS — Built-in support for LLQ, CBWFQ, WRED, and DiffServ
Hot-Swappable Design — Replace or upgrade line cards without powering down the chassis
General
Manufacturer
Cisco Systems
Part Number
7600-ES+40G3CXL
Product Family
Cisco 7600 Series Ethernet Services Plus (ES+)
Module Type
Ethernet Services Plus Line Card
Enclosure Type
Plug-in Module
Distributed Forwarding Card
DFC-3CXL (included)
Minimum Software
Cisco IOS Release 12.2(33)SRD
EOL Status
End-of-Life (Cisco 7600 Series)
Interfaces
Network Ports
40x Gigabit Ethernet SFP (mini-GBIC)
Port Speed
1 Gbps per port
SFP Types Supported
SX, LX/LH, ZX, CWDM, DWDM (various)
Performance
Aggregate Bandwidth
40 Gbps
Hardware Queues (Ingress)
128,000
Hardware Queues (Egress)
128,000
Packet Memory
512 MB
DFC-3CXL Memory
2 GB
MAC Address Table Size
Up to 96,000 entries
Ethernet Service Instances
Up to 16,000 per line card
Features
Layer 2 Switching
Yes
Layer 3 Routing
Yes
VLAN Support
Yes (locally significant VLANs)
QoS
LLQ, CBWFQ, WRED, DiffServ
MPLS VPN
Yes
MPLS Fast Reroute (FRR)
Yes
ACL Support
Yes
IEEE Standards
802.1s, 802.1ah
Management Protocols
SNMP, RMON, SMON
Hot-Swappable
Yes
Physical
Dimensions (H x W x D)
1.75 x 15.375 x 16 in. (4.45 x 39.05 x 40.64 cm)
Weight
12.9 lb (5.85 kg)
Slot Requirement
Occupies 1 slot in Cisco 7600 Series Router
Max Cards per Chassis
Up to 8 ES+ line cards in Cisco 7609 / 7609-S
Power
Maximum Power Consumption
419 W
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-40°C to 75°C (-40°F to 167°F)
Operating Humidity
10% to 90%, non-condensing
Operating Altitude
-60 to 2,000 m
Compatibility
Supported Platforms
Cisco 7604, 7606, 7609, 7609-S, 7613; Catalyst 6500 Series
Required Supervisor
Supervisor Engine 720-3B/3BXL or RSP 720 or later
Switch Fabric
Dual-channel switch fabric required
Compatibility Notes

Supported Platforms: Cisco 7600 Series Routers (7604, 7606, 7609, 7609-S, 7613); also supported on Cisco Catalyst 6500 Series switches.

Supervisor Requirement: Requires Supervisor Engine 720-3B, 720-3BXL, or Route Switch Processor 720 (RSP 720) or later. Not supported with Supervisor Engine 32.

Switch Fabric: Requires dual-channel switch fabric connectivity. Not supported in slots 1–8 of the Cisco 7613 chassis.

Minimum Software: Cisco IOS Release 12.2(33)SRD or later.

SFP Optics: SFP modules sold separately. Supports standard Cisco SFP modules including GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD, and CWDM/DWDM SFP variants.

EOL Notice: The Cisco 7600 Series has reached End-of-Life. Cisco recommends migration to the ASR 9000 Series for new deployments.

Downloads & Resources
ES+ 20G/40G Line Cards Datasheet (PDF) (andovercg.com/datasheets/cisco-7600-20gb-40gb-Line-Card.pdf or cisco.com ES+ line card datasheet)
Frequently Asked Questions

No. The line card ships with the DFC-3CXL daughter card installed, but SFP optic modules are sold separately. It supports standard Cisco SFP modules including GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD, and CWDM/DWDM variants.

Both cards have the same 40-port GE SFP layout. The difference is the distributed forwarding card: the 3CXL variant includes the DFC-3CXL with 2 GB of memory and larger TCAM capacity, while the 3C variant ships with the standard DFC-3C and 1 GB of memory.

The card requires Supervisor Engine 720-3B, 720-3BXL, or Route Switch Processor 720 (RSP 720) or later. It is not supported with Supervisor Engine 32.

The Cisco 7600 Series has reached End-of-Life. Most models reached final support milestones on July 31, 2021. Cisco recommends migration to the ASR 9000 Series for new deployments. Pre-owned and refurbished units remain widely available for maintaining existing installations.

Yes. The ES+40 line cards are supported on both Cisco 7600 Series routers and Cisco Catalyst 6500 Series switches, provided the chassis has a compatible supervisor engine and dual-channel switch fabric.
Part Number Product Key Difference
7600-ES+40G3C ES+ 40xGE SFP with DFC-3C Same 40-port GE SFP layout but with standard DFC-3C — smaller TCAM and 1 GB DFC memory vs. 2 GB on the 3CXL.
7600-ES+20G3CXL ES+ 20xGE SFP with DFC-3CXL 20-port GE SFP variant with DFC-3CXL — half the port density for smaller deployments at lower power consumption.
7600-ES+4TG3CXL ES+ 4x10GE XFP with DFC-3CXL 4-port 10GE XFP variant — same 40 Gbps aggregate bandwidth but via four 10GE interfaces instead of forty 1GE ports.
76-ES+XC-40G3CXL ES+ XC Combo 20x1GE/2x10GE with DFC-3CXL Extended Combination variant offering mixed 1GE SFP and 10GE XFP ports on a single card for flexible aggregation.
