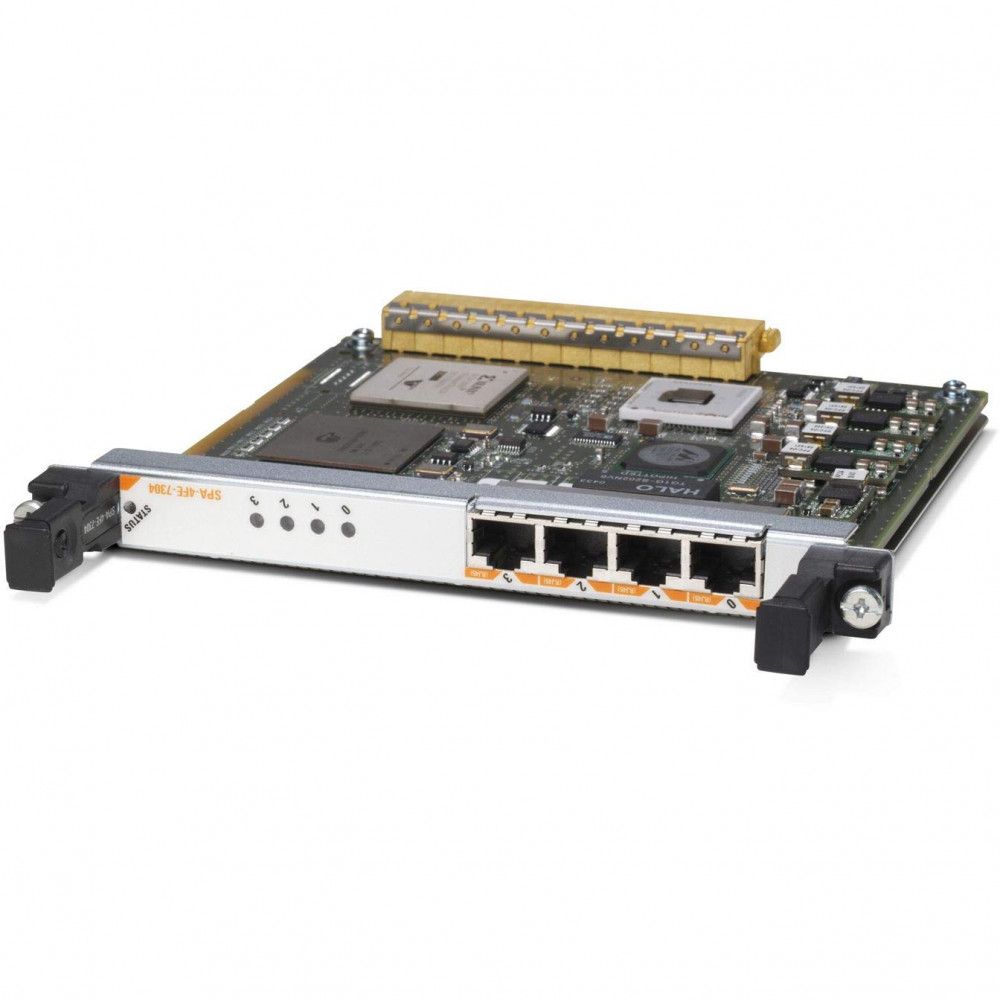

Cisco SPA-4FE-7304

4-port 10/100 Fast Ethernet Shared Port Adapter

In Stock
US $125.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The Cisco 7304 10/100 Fast Ethernet SPA is designed to meet the growing demand for customers who need cost-effective and simple connectivity for Internet gateway, peering, or Metro Ethernet access applications. This SPA is a single-width pluggable module capable of supporting four 10/100 Fast Ethernet copper (RJ-45) connections. Two SPAs fit into one carrier card in a single line-card slot of the Cisco 7304 Router, greatly extending port density and modularity.

Specifications

Dimensions
0.8" Height x 6.8" Width x 8.1" Depth
Management
  • Host system CLI
  • Simple Network Management Protocol (SNMP)
  • Remote Monitoring (RMON)
  • VLAN
Product Name
4-Port 10/100Base-TX Fast Ethernet Shared Port Adapter
Product Type
Shared Port Adapter
Shipping Weight
0.8 lb
Interfaces/Ports
4 x 10/100Base-TX LAN
Application/Usage
Data Networking
Connectivity Media
Twisted Pair
Data Transfer Rate
  • 10 Mbps Ethernet Half/Full-duplex
  • 100 Mbps Fast Ethernet Half/Full-duplex
Interfaces Details
4 x RJ-45 10/100Base-TX Auto-sensing/Auto-negotiating/Auto MDI/MDI-X LAN
Weight (Approximate)
12.80 oz
Additional Information
  • Jumbo frame support
  • Parity and cyclic-redundancy-check (CRC) detection for application-specific integrated circuit (ASIC) and discrete memory errors
  • 802.3x flow control
  • 4096 VLANs per SPA subject of IDB limits
  • Division of the 4096 VLAN ternary-content-addressable-memory (TCAM) filtering entries into 1024 entries per port
  • Division of the 2048 DA MAC address filtering entries into 512 entries per port
  • Per-port counters for policy drops, oversubscription drops, CRC error drops, packet sizes, unicast, multicast, and broadcast packets
  • Per-port byte counters for good bytes and dropped bytes
