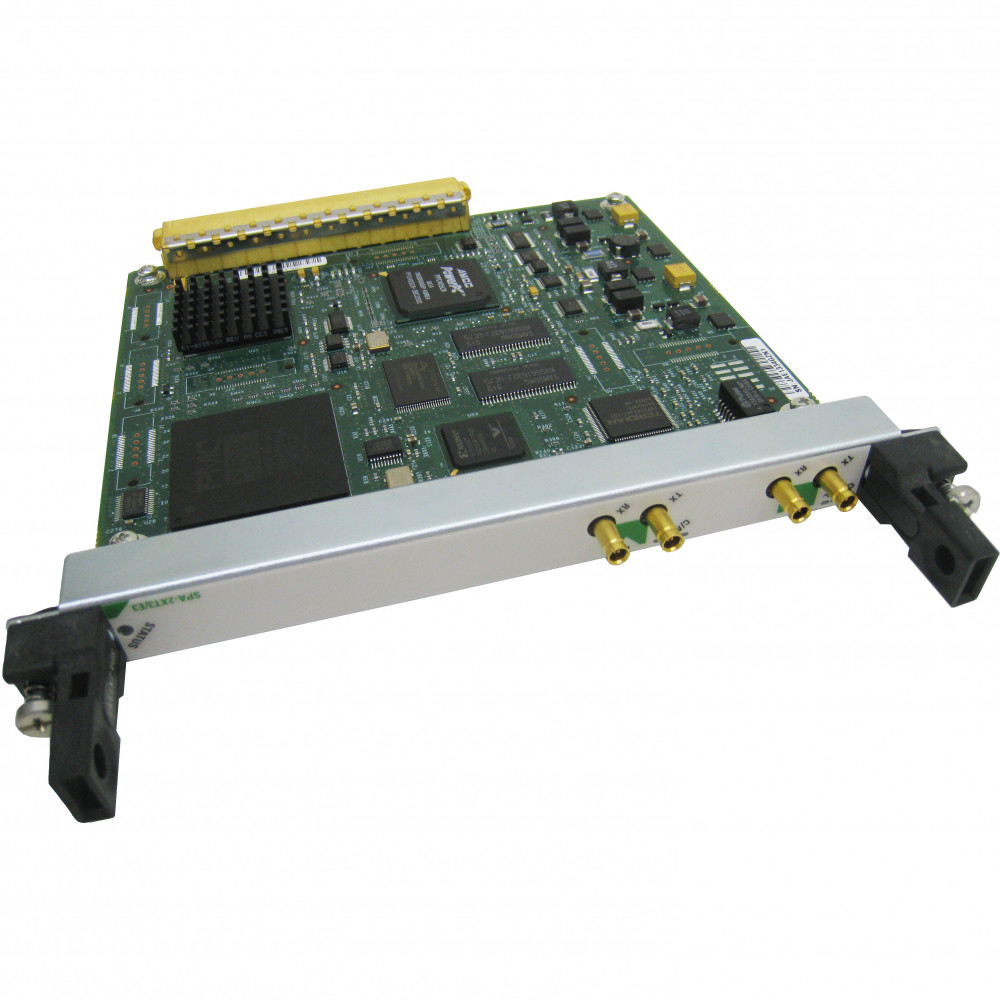

Cisco SPA-2XT3/E3-V2

2-port Clear Channel T3/E3 Shared Port Adapter, Version 2

In Stock
US $200.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The Cisco SPA-2XT3/E3-V2 is a network module designed for Cisco Integrated Services Routers (ISRs). It provides two ports for connecting T3 or E3 lines, which are high-speed digital transmission protocols used in telecommunications networks. The module allows for the integration of T3/E3 connectivity into the router, enabling high-speed data transfer and connectivity options for businesses and service providers.

Specifications

Line Rate
44.736 Mbps (T3), 34.368 Mbps (E3)
CRC-4 Support
No
Hot Swappable
Yes
Framing Format
Unchannelized (T3), G.751 (E3)
Interface Type
T3/E3
LED Indicators
Yes
Line Build-Out
0dB (T3), -7.5dB to +22.5dB programmable (E3)
Line Impedance
75 ohms (T3), 120 ohms (E3)
Maximum Data Rate
45 Mbps (T3), 34 Mbps (E3)
Line Coding Format
AMI, B8ZS (T3), HDB3 (E3)
Scrambling Support
Yes
Pluggable Interface
Yes
Supported Protocols
  • PPP
  • HDLC
  • Frame Relay
  • ATM
  • MPLS
Supported Network Equipment
  • Cisco ASR 900 Series
  • Cisco 7600 Series
  • Cisco 7200 Series
  • Cisco 3800 Series
  • Cisco 3700 Series
  • Cisco 2800 Series
  • Cisco 2600XM Series
  • Cisco 1800 Series
  • Cisco 1700 Series
