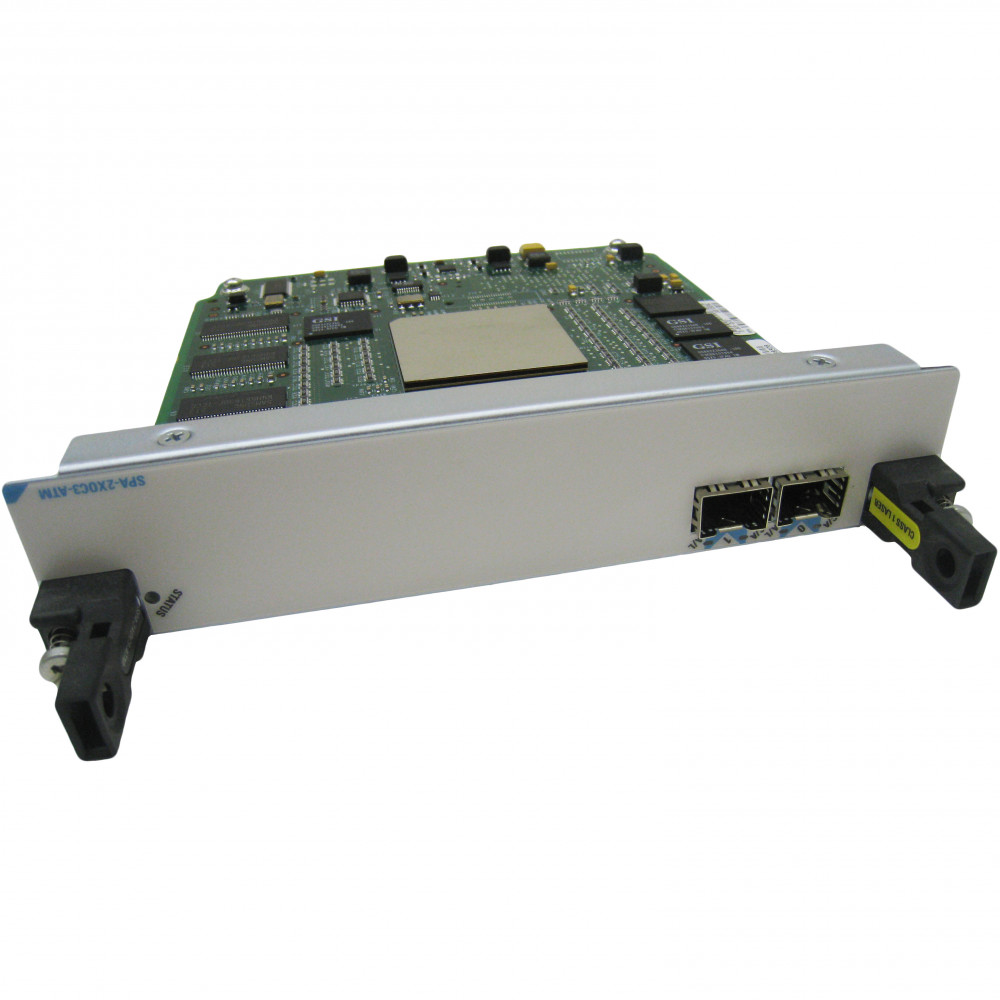

Cisco SPA-2XOC3-ATM

2-port OC-3c/STM-1 ATM Shared Port Adapter

In Stock
US $185.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

This ATM SPA provide cost-effective wide-area networking (WAN) connectivity for service providers across their existing ATM networks. Using a highly modular approach, the SPA and SIP form factors maximize the flexibility of an existing Cisco 7600 series router, allowing service providers to mix and match SPAs to more easily meet evolving port-density and networking media needs.

Specifications

Form Factor
Hot-swappable
Product Name
2-Port OC-3c/STM-1 ATM Shared Port Adapter
Product Type
Shared Port Adapter
Expansion Slots
2 x SFP Free
Shipping Weight
2.66 lb
Application/Usage
Data Networking
Connectivity Media
Fiber
Data Transfer Rate
155.52 Mbps OC-3c/STM-1
Shipping Dimensions
6.0" Height x 10.0" Width x 11.25" Depth
Additional Information
  • Supports both permanent virtual circuits (PVCs) and switched virtual circuits (SVCs)
  • Up to 4,096 simultaneous segmentations and reassemblies (SARs) per interface
  • Up to 1,000 maximum virtual templates per router
  • ATM adaptation layer 5 (AAL5) for data traffic
  • Hardware switching of multicast packets for point-to-point subinterfaces
  • ATM section, line, and path alarm indication signal (AIS) cells, including support for F4 and F5 flows, loopback, and remote defect indication (RDI)
  • Operation, Administration, and Maintenance (OAM) cells
