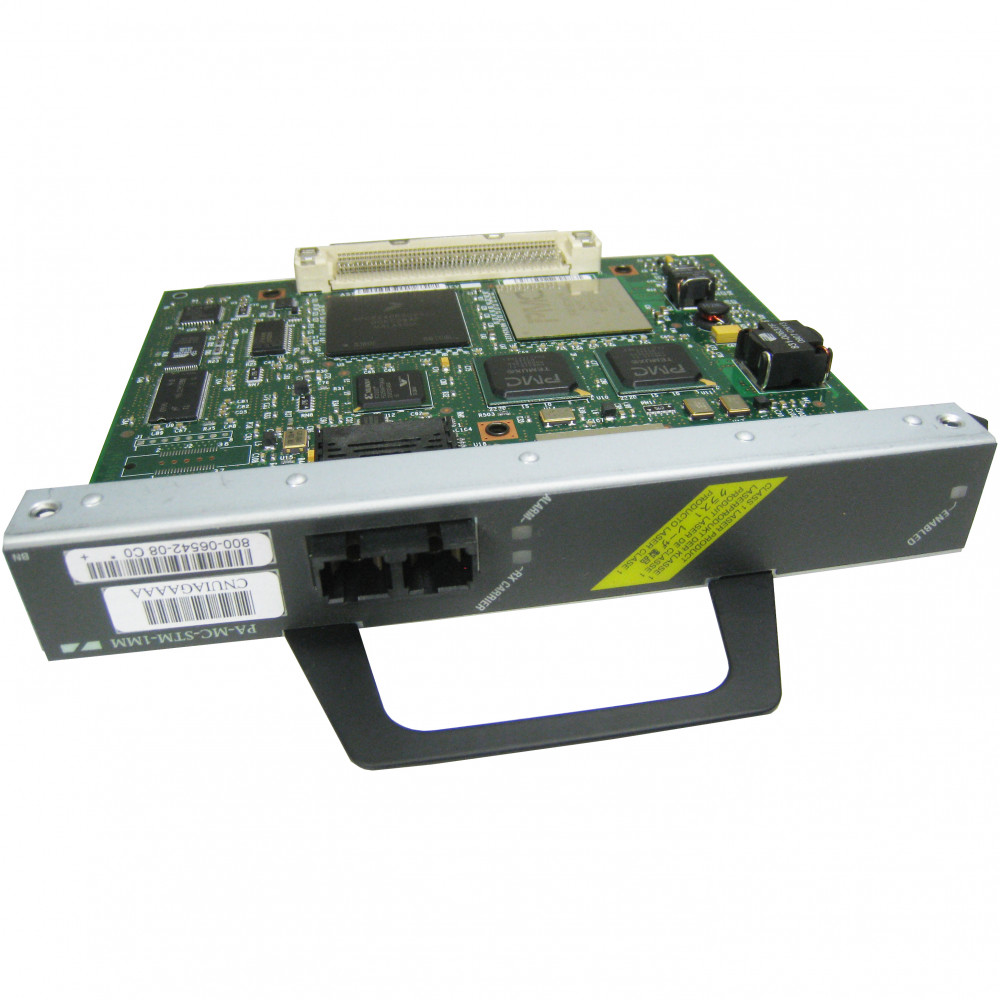

Cisco PA-MC-STM-1MM

1 port multichannel STM-1multimode port adapter

In Stock
US $1,850.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days


Twitter Reddit Facebook

Information

The Cisco PA-MC-STM-1MM is a network module designed for Cisco routers. It stands for Cisco Port Adapter Multichannel Synchronous Transport Module-1 Multimode. This module provides a single-port, multimode interface for connecting routers to Synchronous Optical Network (SONET) and Synchronous Digital Hierarchy (SDH) networks. It supports STM-1 (Synchronous Transport Module level 1) optical interfaces, which provide a data rate of 155.52 Mbps. The PA-MC-STM-1MM module allows routers to connect to high-speed WAN links using SONET/SDH technology, enabling reliable and scalable network connectivity. It is commonly used in telecommunications and service provider environments where high-speed data transmission is required.

Specifications

Weight
1 lb
Dimensions
1 Height x 6.5 Width x 6 Depth
Management
SNMP
Product Name
Multichannel STM-1 Port Adapter
Product Type
Port Adapter
Compatibility
  • Cisco 7600 Series Routers
  • Cisco Series Routers 7500
  • Cisco Series Routers 7200
  • FlexWAN modules
Interfaces/Ports
1 x STM-1
Connectivity Media
Multi-mode Fiber
Data Transfer Rate
155.52Mbps STM-1 Full-duplex
Interfaces Details
1 x STM-1
Additional Information
  • Wavelength: 1310 nanometers
  • Transmit output power: -18 to -14 dBm
  • Receiver sensitivity: -30 dBm
  • Channelized E1, fractional E1, and full-rate E1 supported
  • Up to 256 usable channels can be allocated among the 63 E1 ports
  • Internal or network clocking selectable on each E1
  • 64 kbps DS0 time slots
  • Line and payload loopback capabilities-local and network at the E1 and STM-1 level
  • Full bit error rate testing capabilities on any E1
  • Alarm detection Full SDH alarms and MIBs and E1 alarms and MIBs
  • Online insertion and removal (OIR) of the VIP
