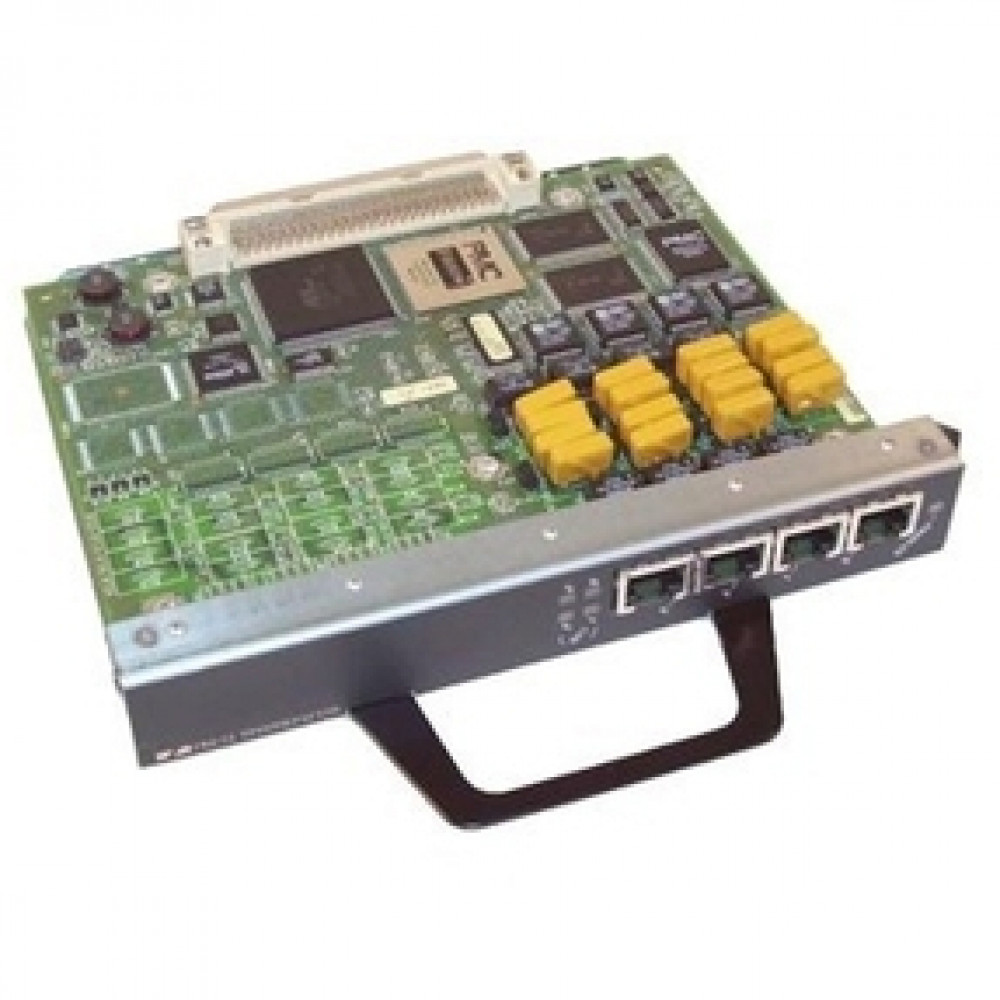

Cisco PA-MC-4T1
4 port multichannel T1 port adapter with integrated CSU/DSUs
In Stock
US $75.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
Cisco's Multichannel T1 Port Adapter eliminates the need for separate interface types for separate connection requirements. At a cost per T1 port less than that of a standard serial port with external CSU/DSU, this multichannel interface is cost effective for all WAN connectivity.
Specifications
Product Name
Multichannel T1 Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 Series Routers
- Cisco 7500 Series Routers
Interfaces/Ports
4 x T1
Application/Usage
Data Networking
Connectivity Media
100 ohm Twisted Pair
Data Transfer Rate
1.54 Mbps T1
Interfaces Details
4 x RJ-48C T1
Additional Information
- Supporting channel bandwidth from 64kbps, nx64 kbps, to full T1
- Channelized T1, fractional T1, and ISDN PRI supported
- Handling all major encapsulations, including ISDN and Frame Relay
- Eliminating the need for any external CSU/DSUs or multiplexers
- Providing up to 128 software configurable WAN connections per single wide port adapter
- Each T1 used as ISDN PRI consumes either 24 or 31 channels, respectively, one for each B channel and one for the D channel
