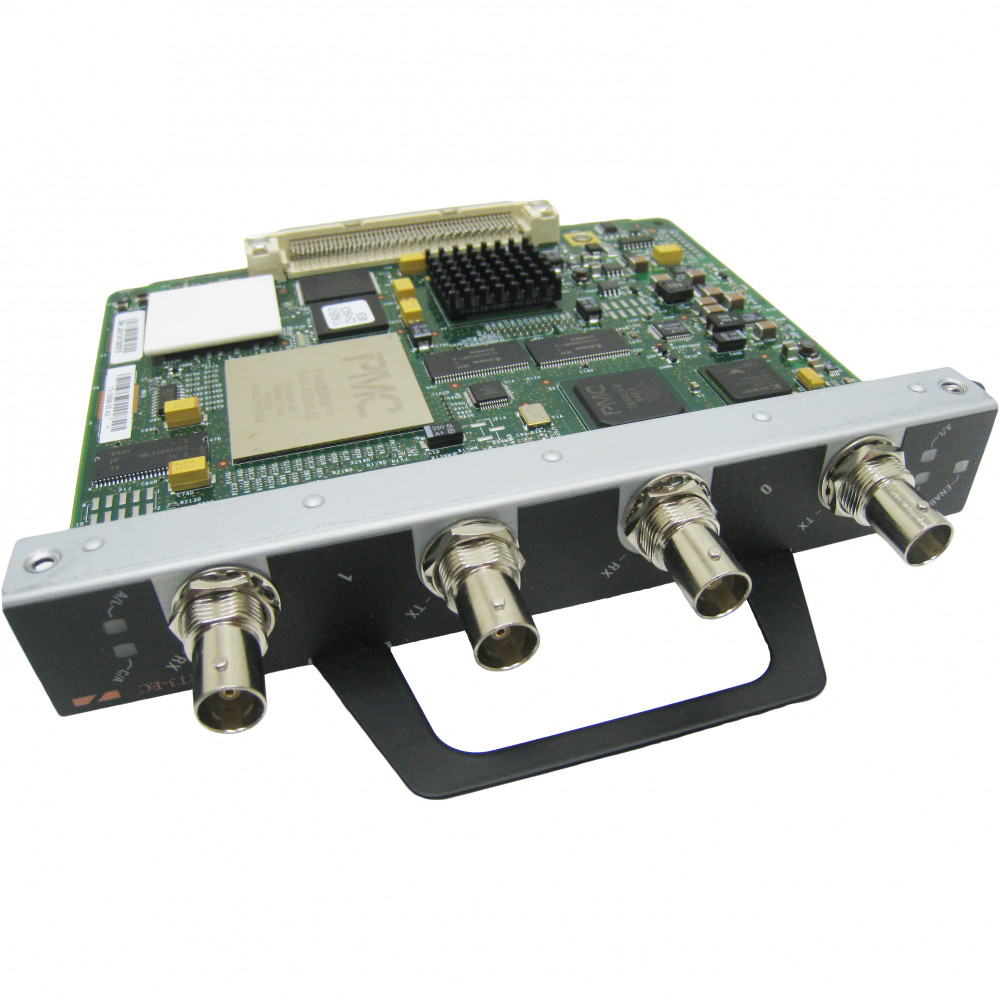

Cisco PA-MC-2T3-EC

2 Port Multichannel T3 Enhanced Capability

In Stock
US $400.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The 2-port multichannel T3 port adapter for the Cisco 7200 Series Routers and Cisco 7301 Router are enhanced versions of the previous multichannel T3 port adapters. The new port adapter address specific scalability challenges by increasing performance and lowering CPU usage. They offload advanced capabilities and features from the CPU, delivering them directly to meet enterprise and service provider WAN link-aggregation service requirements. Each port adapter T3 interface can be independently configured for either multichannel T3 or clear-channel packet-over-T3 operation. With T3 port configurations, connections to DS-3 and subrate DS-3 services can be provisioned. With multichannel T3 port configurations, up to 28 T1 links per T3 interface can be brought in on a single wide port adapter. Each T1 can be further channelized to DS-0, making the port adapter highly flexible interfaces for WAN provisioning.

Specifications

Dimensions
1.0" Height x 6.6" Width x 7.0" Depth
Product Name
Multichannel Enhanced Capability Port Adapter
Product Type
Port Adapter
Compatibility
  • Cisco 7200 Series Routers
  • Cisco 7301 Router
Shipping Weight
2.5 lb
Interfaces/Ports
2 x T3
Application/Usage
Data Networking
Connectivity Media
T3
Data Transfer Rate
44.74 Mbps T3
Interfaces Details
2 x T3 WAN
Weight (Approximate)
2.50 lb
