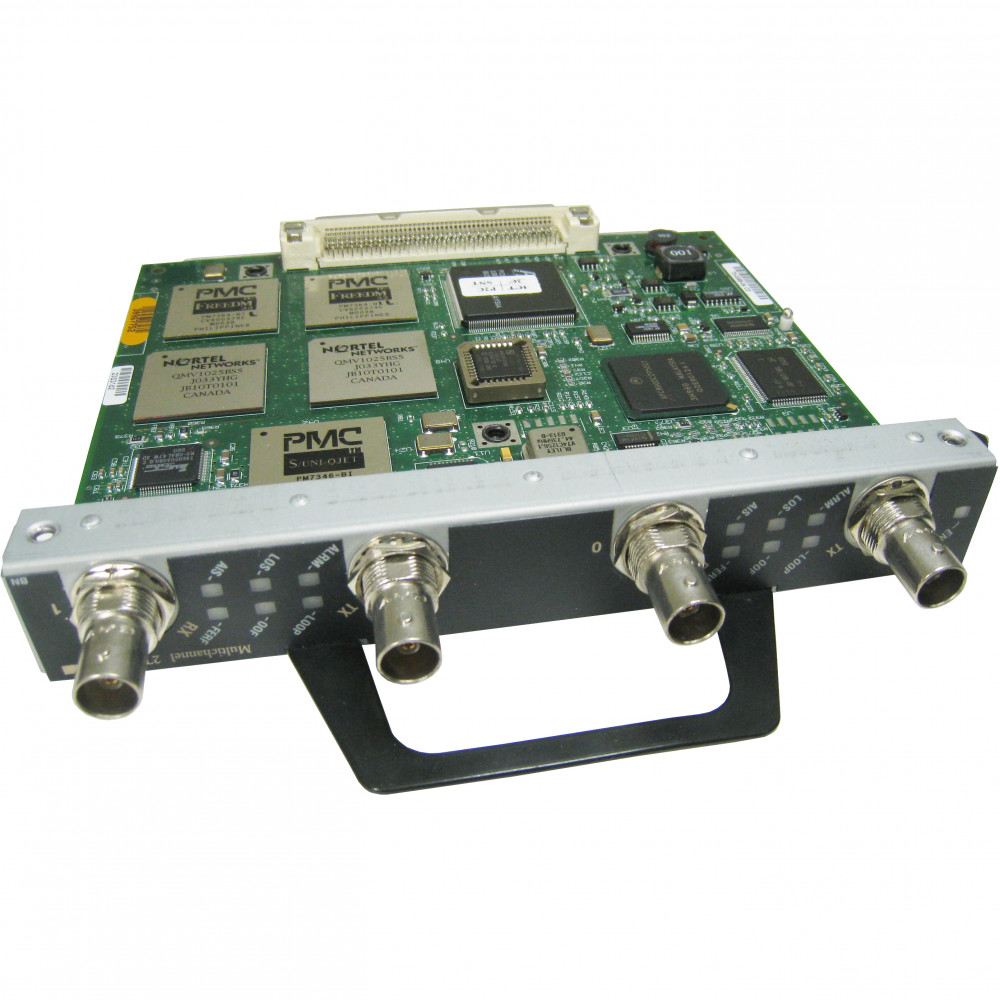

Cisco PA-MC-2T3+
2 port multichannel T3 port adapter
Product Highlights
The two-port enhanced multichannel T3 port adapter for the Cisco 7500 and 7200 series platforms is the next step in port density and flexibility for enterprise and Internet service provider WAN link aggregation. Each adapter has two T3 ports that can be independently configured for either multichannel T3 or packet-over-T3 operation. When configured as T3 ports, connections to DS3 and subrate DS3 services can be provisioned. When configured as multichannel T3 ports, up to 56 T1 links can be brought in on this single-wide port adapter. Each T1 can be further channelized to DS0 making the two-port enhanced multichannel T3 port adapter the most flexible interface for WAN provisioning.
Protocols
- Frame Relay
- PPP
- HDLC
- IP
- IPX
Product Name
Multichannel T3 Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 series
- Cisco 7500 series
Interfaces/Ports
2 x T3 WAN
Application/Usage
Data Networking
Status Indicators
- ENABLED
- ALARM
- LOOP
- LOS
- OOF
- AIS
- FERF
Connectivity Media
75-ohm Coaxial
Data Transfer Rate
44.74 Mbps T3 Full-duplex @ 450 ft
Distance Supported
450 ft 734A Coaxial Full-duplex
Interfaces Details
2 x BNC Female Connector T3 Full-duplex WAN
Additional Information
- Key Features:
- Two DS3 ports each with integrated CSU/DSUs
- 28 T1 ports multiplexed onto a single T3 connection
- Channelized T1, fractional T1, and full-rate T1 supported
- Up to 128 usable NxDS0 channels (where N is 1 to 24) that can be allocated among the 28 T1 ports on each DS3
- Internal or network clocking selectable on each T1 or T3
- Local, remote, line, and payload loopback at the T1 level
- Full bit-error-rate testing capabilities on any T1
- 32-bit error count and bit-count registers
- Detect test patterns with bit-error rates up to 10-2
- Alarm detection-AIS, Remote Alarm, FEBE, out of frame (OOF)
- On-board processor for real-time FDL messaging, in-band-code detection and insertion, alarm integration, and performance monitoring
- 16-bit or 32-bit CRC supported T1 Specific Features:
- Superframe (SF) and Extended Superframe (ESF) support
- Full FDL support and FDL performance monitoring
- Alarm detection-CRC errors, out of Frame, errored seconds, failed seconds, severely errored seconds, error events, failed signal rate, bursty seconds, AIS
- Alarm reporting- hour history maintained, 15 minute intervals on all errors
- ESF and SF framing modes
- Internal and loop (recovered from network) clocking
- T1 MIB (RFC-1406) T3 Specific Features:
- DSX-3 level interface with dual female 75 Ohm BNC coaxial connectors per port (separate RX and TX)
- Full duplex and connectivity at DS3 rate (44.736 Mbps)
- Scrambling and subrate can be independently or simultaneously enabled in each DSU mode
- Line build-out-Programmable for up to 450 feet of 734A or equivalent coaxial cable
- C-Bit, or M13 framing (software selectable)
- B3ZS line coding
- DS3 FEAC channel support
- 24-hour history maintained for error statistics and failure counts, 15 minute intervals
- DS3 alarm/event detection (once-per-second polling) - AIS: alarm indication signal - OOF: out of frame - LCV: line code violation - EXZ: excessive zeros - FERF: far-end receive failure
- T3 line and local loopback paths
- T3 MIB (RFC-1407)
Certifications & Standards
- ANSI T1.107
- ANSI T1.102
- ANSI T1.404
- AT&T 62411
- AT&T 54016
- AT&T 54014
- ANSI T1.403
- FCC Part 68
- AT&T TR-NWT-00499
- UL1950 3rd Edition/CSA C22.2, No.950 (U.S. and Canada)
- FCC Part 15, class A
