Information

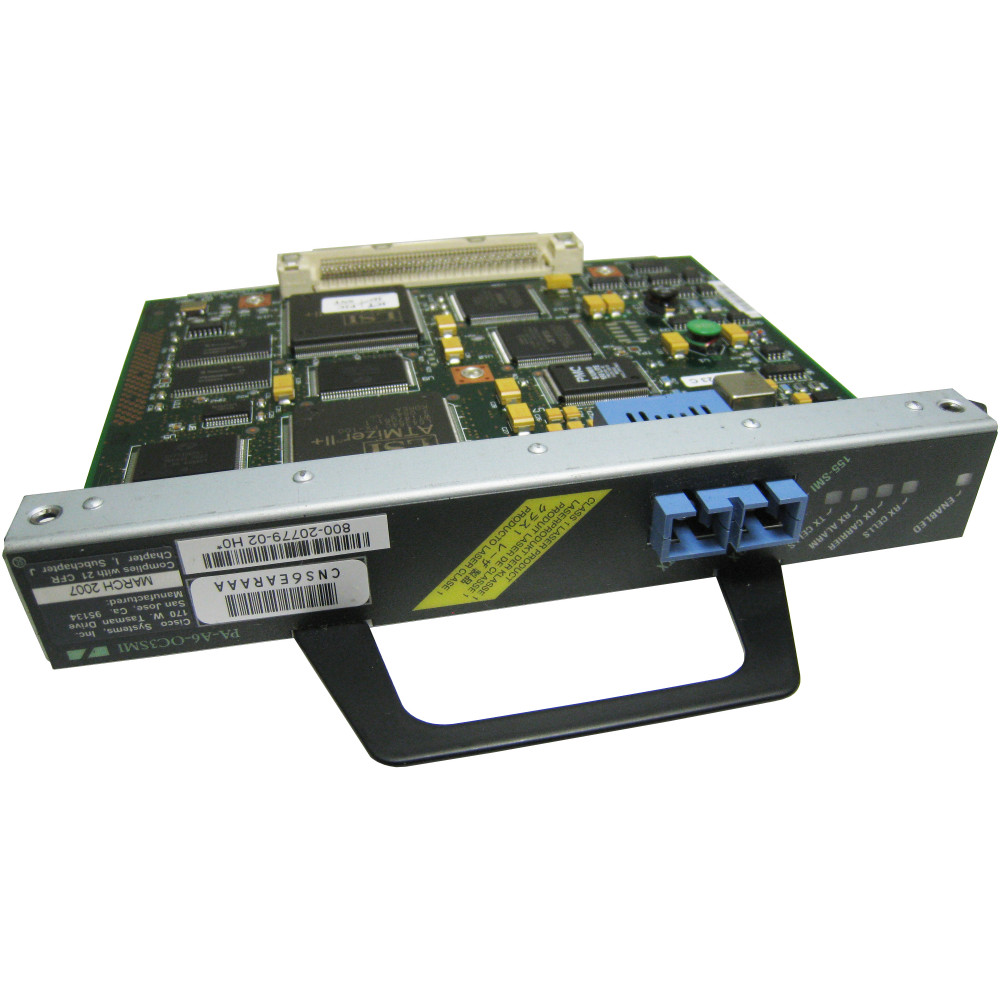

The PA-A6-OC3SML is a single-width, single-port, ATM port adapter for the Cisco 7200 series router, Cisco 7200VXR series router, Cisco 7301 router, Cisco 7401ASR routers, Cisco 7500 series routers, and Cisco 7600 series routers with FlexWAN. With advanced ATM features, the PA-A6-OC3SML supports broadband aggregation, WAN aggregation, and campus/MAN aggregation.
Specifications
Humidity
0% to 90% Non-condensing
Management
- MIB II
- Synchronous Optical Network (SONET) MIB
- AToM MIB
- ATM ILMI MIB
- LANE MIB
- DS3/E3 MIB
Product Name
One-port ATM OC-3c/STM-1 Single-mode (LR) Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 series router
- Cisco 7200VXR series router
- Cisco 7301 router
- Cisco 7401ASR routers
- Cisco 7500 series routers using VIP4-50 and VIP4-80
- Cisco 7600 series routers using FlexWAN modules
Distance Support
40 km Single-mode Fiber
Interfaces/Ports
1 x OC-3c/STM-1
Status Indicators
- ENABLED
- RX CELLS
- RX CARRIER
- RX ALARM
- TX CELLS
Connectivity Media
9 micron Single-mode Fiber
Data Transfer Rate
155.52Mbps OC-3c/STM-1
Interfaces Details
1 x SC Duplex Connector OC-3c/STM-1
Additional Information
- Wavelength: 1310 nm
- Up to 8191 simultaneously available virtual circuits (VCs)
- Up to 2000 simultaneous segmentations and reassemblies (SARs)
- ATM adaptation layer 5 (AAL5) for data traffic
- Full available bit rate (ABR) support (Traffic Management 4.0), all modes
- Traffic shaping per VC rates from 2.3 kbps to 155 Mbps, in 2.3-kbps increments
Temperature (Operating)
10 degrees C (50.0 degrees F) to 40 degrees C (104.0 degrees F)
