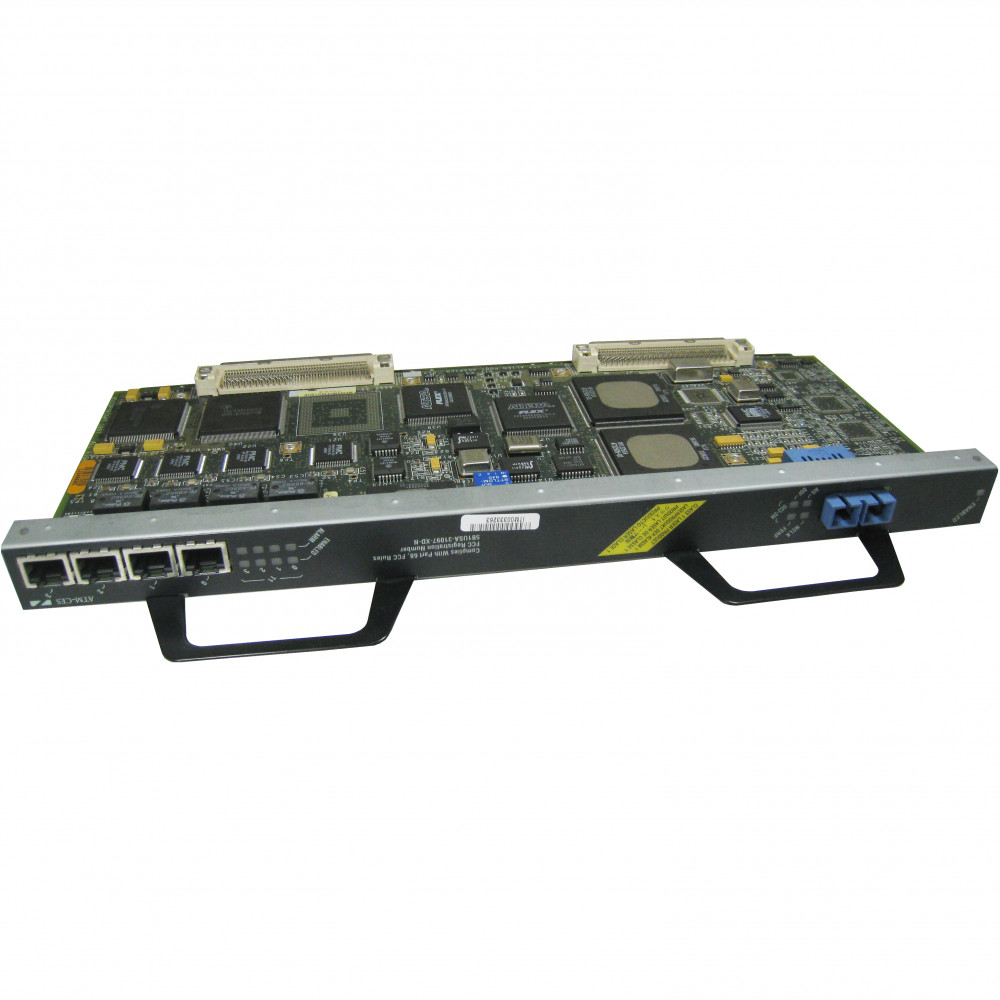

Cisco PA-A2-4T1C-OC3SM
ATM CES Port Adapter, 4T1 CES Ports and 1 OC3 ATM SM Port
Product Highlights
The 4T1 and 1OC-3 ATM CES Port Adapter is a dual wide module. The target application of this adapter is access to a broadband public or private ATM network where multiservice consolidation of voice, video, and data traffic over a single ATM link is a requirement.
Management
- SNMP
- ATM MIB
Product Name
4T1 and 1OC-3 ATM CES Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 Series Router
- Cisco uBR7200 series
Interfaces/Ports
- 4 x T1
- 1 x OC-3
Application/Usage
Data Networking
Connectivity Media
- 120-ohm UTP
- Single-mode Fiber
Data Transfer Rate
- 1.54 Mbps T1
- 155.52 Mbps OC-3
Interfaces Details
- 4 x RJ-48C T1
- 1 x SC Duplex OC-3
Additional Information
- Cross connect Circuit Emulation Services (CES), structured and unstructured
- On/off hook Channel Associated Signaling (CAS)
- Up to 2046 virtual circuits (VCs) and 124 CBR VCs
- ATM adaptation layer (AAL) 5
- Single mode intermediate reach ATM uplink
- Traffic shaping (per VP and VC)
- ABR, CBR, VBR, and UBR Quality of Service (QoS)
