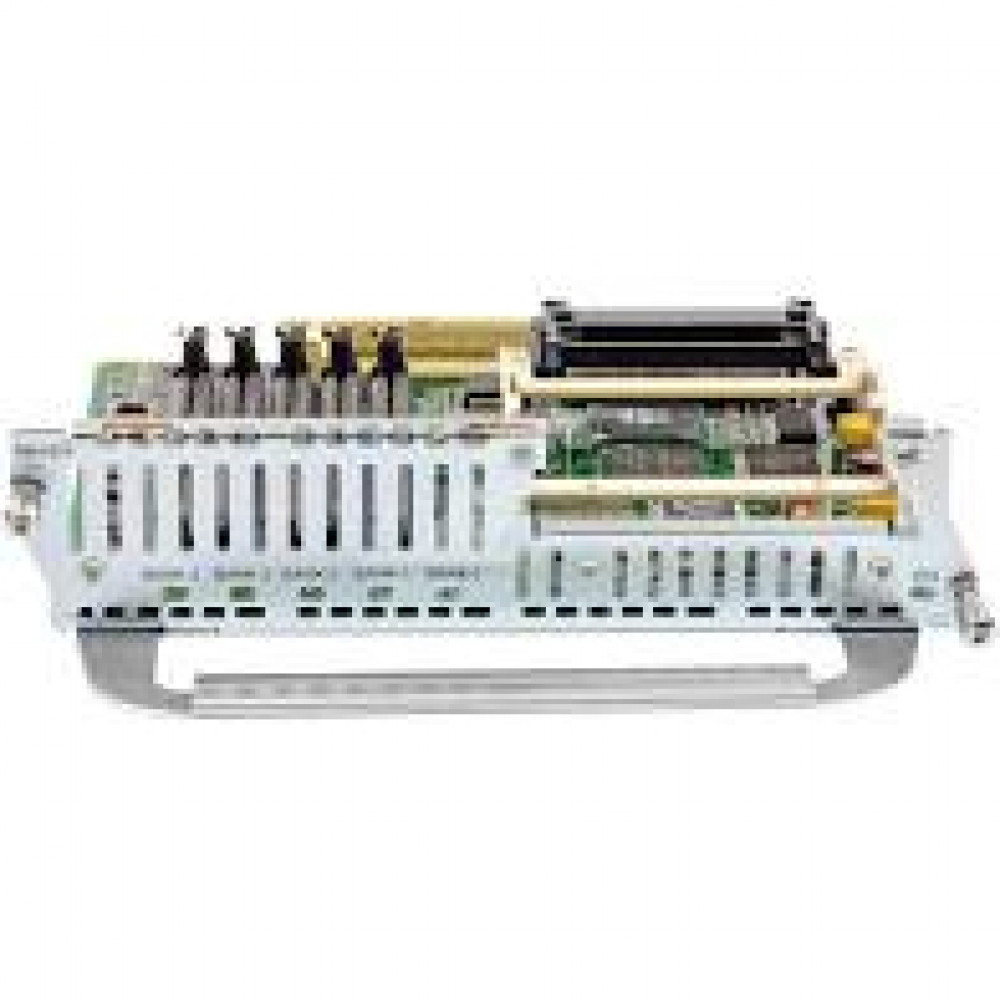

Cisco NM-HDV

High Density Voice/Fax Network Module

In Stock
US $85.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

This network module is the carrier card for the PVDM-12 and VWIC cards (it is the basis for all six NM-HDV voice bundles) to build custom configurations. Up to 30 unique combinations of network module, DSP modules, and VWICs exist, allowing users to increase voice channel support from as little as 6 voice/fax channels up to 60 voice/fax channels.

Specifications

Management
  • SNMP protocol compliant
  • Manageable via a MIB browser
  • CiscoView interface for configuration
  • ConfigMaker
  • Cisco Voice Manager (CVM) supported, version 2.0
  • NetSys supported
Product Name
Voice/Fax Network Module
Product Type
Network Module
Compatibility
  • 3660 series - 12.0(5)XK
  • 3640 - 12.0(5)XK
  • 3620 - 12.0(5)XK
  • 2691 - 12.2(8)T1
  • 2650 - 12.1(3)T
  • 2600XM Series - 12.1(14) or 12.2(8)T1
  • 2600 series - 12.0(5)XK
Expansion Slots
  • 1 x VIC/VWIC
  • 5 x PVDM-12
Application/Usage
Data Networking
Certifications & Standards
  • H.323 version 1 and 2 feature support
  • H.323 CODEC-negotiation
  • H.323 gateway RAS support (version 1 / version 2)
  • Supports ITU Standard Compression Algorithms (G.729, G.723.1, G.729a/b, G.711, G.728, G.726) Safety Standards:
  • UL 1950 3rd. edition
  • CSA 950, 1995 version
  • IEC 950
  • EN 60950
  • AS/NZS: 3260 with amendment 134
