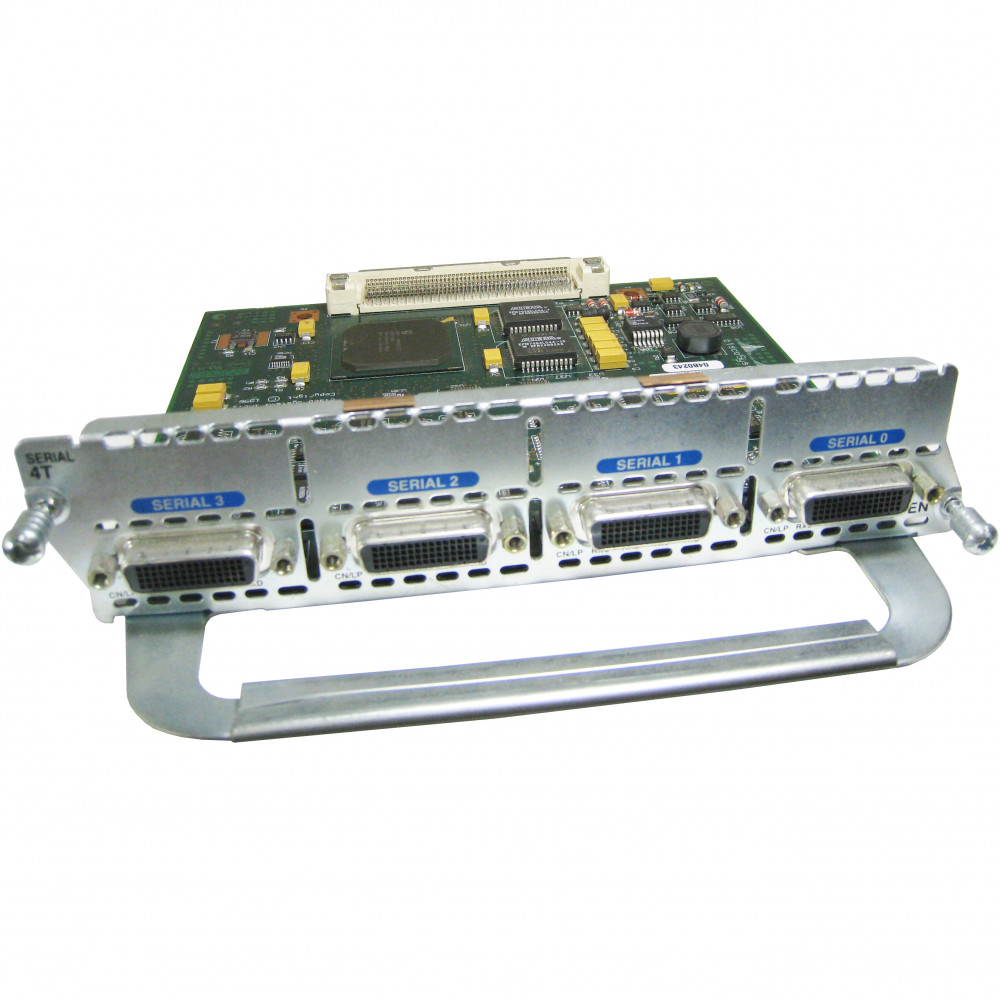

Cisco NM-4T

4-Port Serial Network Module

In Stock
US $65.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

This network module has four synchronous serial interfaces, and supports a total full-duplex throughput of 8 megabits per second (Mbps), which can be realized over one port (at 8Mb/s) or across all four ports (at 2Mb/s on each port). Each port supports full-duplex and half-duplex operation at T1 and E1 speeds. All ports use identical DB-60 connectors that support five interface types (RS-232, RS-449, RS-530, V.35, X.21) in either DTE or DCE mode.

Specifications

Humidity
5% to 95% Relative Humidity
Dimensions
1.6" Height x 7.1" Width x 7.2" Depth
Temperature
  • 32°F (0°C) to 104°F (40°C) Operating
  • -13°F (-25°C) to 158°F (70°C) Non-operating
Product Name
Network Module
Product Type
Network Module
Case Pack Qty
10
Compatibility
  • 3745 - 12.2(11)YT or 12.2(13)T
  • 3725 - 12.2(11)YT or 12.2(13)T
  • 3660 series - 12.0(5)T
  • 3640 - 11.2(4)XA
  • 3620 - 11.2(4)XA
  • 2691 - 12.2(13)T
  • 2650 - Not Available
  • 2600XM Series - Not Available
  • 2600 series - Not Available
  • 1720 - Not Available
  • 1600 series - Not Available
Shipping Weight
1.95 lb
Interfaces/Ports
4 x WAN
Application/Usage
Data Networking
Status Indicators
  • Network module status indicator, five Status LEDs for each serial port, including data send/receive indication
Connectivity Media
Serial Cable
Data Transfer Rate
2 Mbps Synchronous Serial Half/Full-duplex
Interfaces Details
4 x DB-60 Synchronous Serial WAN
Shipping Dimensions
3.25" Height x 10.38" Width x 16.0" Depth
System Requirements
  • Cisco IOS Release 11.2.(5)P or later
Weight (Approximate)
2.00 lb Maximum
Additional Information
  • LAN-to-LAN Routing
  • Serial & Legacy Concentration
  • VPN & Firewall Solutions Physical Limitation of Serial Modules per Chassis:
  • Cisco 3640: 3
  • Cisco 3620: 1 Protocols Supported:
  • Full Cisco IOS support by release 11.2 and 11.3 Supported Features of Serial Network Modules:
  • Synchronous
  • Full Duplex Comments:
  • No reliance on other network modules, WAN interface cards, voice interface cards, or advanced integration modules
