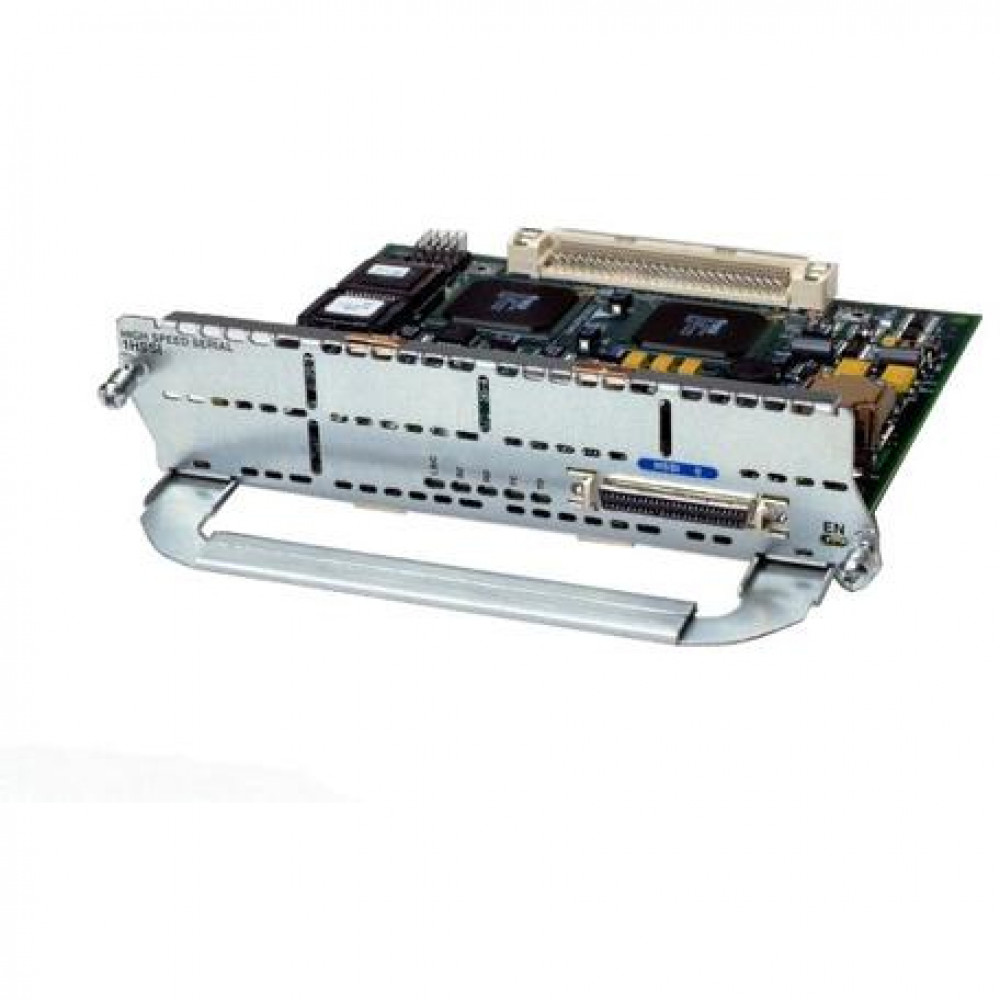

Cisco NM-1HSSI

Single port HSSI network module

In Stock
US $60.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The 1-port high-speed serial interface (HSSI) network supports serial speeds up to 52Mbps via a 50-pin SCSI Type II connector. This network module requires an external T3/E3 DSU/CSU.

Specifications

Product Name
Single Port HSSI Network Module
Product Type
Network Module
Compatibility
  • 3845
  • 3825
  • 3745
  • 3725
  • 3660 series
  • 3640
  • 3620
  • 2691
Interfaces/Ports
1 x HSSI
Application/Usage
Data Networking
Status Indicators
  • LB/C (Loopback/Connect)
  • RC (Receive Clock)
  • RD (Receive Data)
  • TC (Transmit Clock)
  • TD (Transmit Data)
Connectivity Media
Serial Cable HSSI
Data Transfer Rate
  • 52 Mbps Maximum HSSI
  • 44.74 Mbps T3
  • 34.37 Mbps E3
Interfaces Details
1 x 50-pin SCSI-2 Connector Serial
System Requirements
  • One Expansion slot
  • 3845 - 12.3(11)T
  • 3825 - 12.3(11)T
  • 3745 - 12.2(8)T
  • 3725 - 12.2(8)T
  • 3660 series - 12.0(5)T
  • 3640 - 11.3(3)T
  • 3620 - 11.3(3)T
  • 2691 - 12.2(8)T1
Additional Information
  • 16 and 32 bit CRC
  • Package Type: Retail
  • Maximum 1 supported per 3620
  • Maximum 3 supported per 3640
  • Maximum 6 supported per 3660
  • Currently not supported in the Cisco 2600 series
  • LAN-to-LAN Routing
  • Serial & Legacy Concentration
  • VPN & Firewall Solutions
