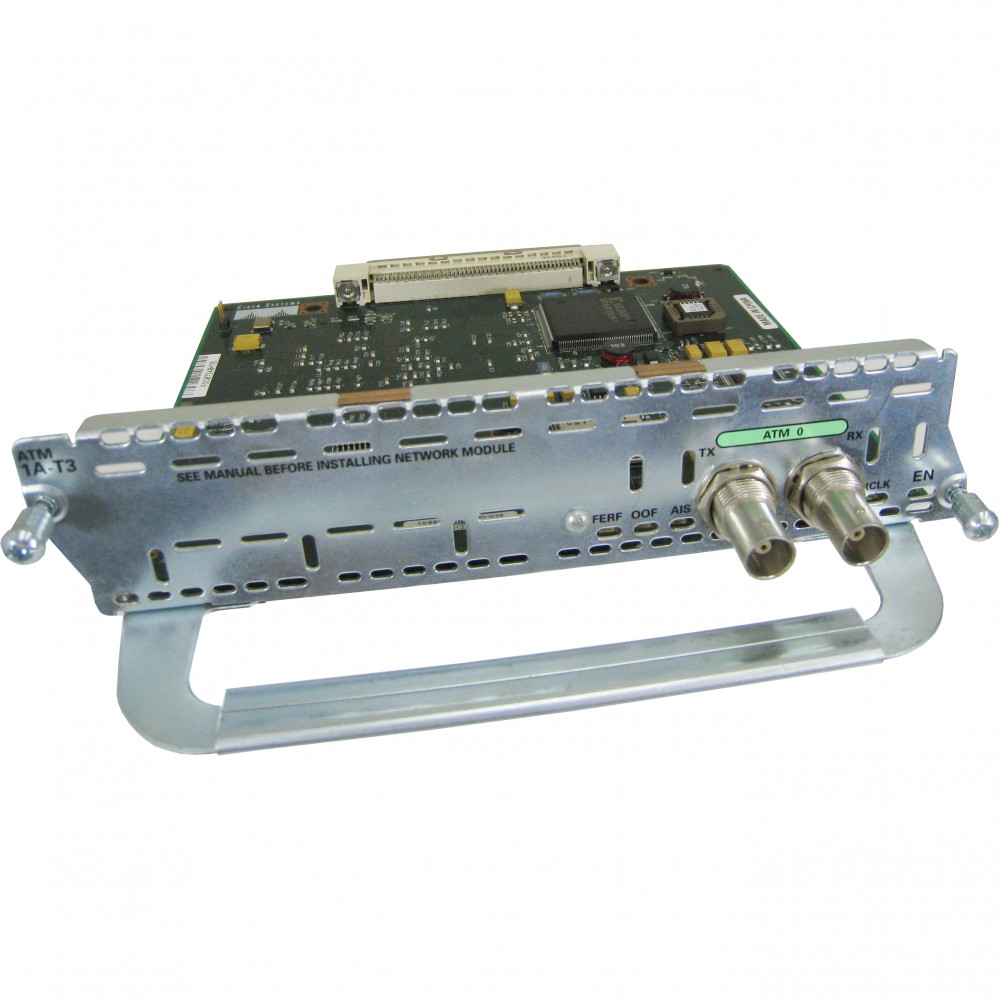

Cisco NM-1A-T3

1-Port DS3 ATM Network Module

In Stock
US $95.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The Cisco DS3 ATM Network Module available for the Cisco 2600, 2800, 3600, 3700, and 3800 Series Routers provide ATM WAN connectivity for the branch office. Provide a single ATM connection of 44 Mbps for DS3 using 75-ohm BNC connectors. DS3 ATM network module support ATM Forum compliant framing standard AAL5. ATM Traffic Management support includes UBR, UBR+, VBR-rt, VBR-nrt, CBR, and ABR classes of traffic.

Specifications

Dimensions
1.6" Height x 7.1" Width x 7.2" Depth
Management
  • Synchronous Optical Network (SONET) MIB
  • MIB II
  • AToM MIB (FRC 1695)
  • ILMI MIB
  • CISCO-BUS MIB
  • CISCO-LECS-MIB
  • CISCO-LES-MIB
  • LAN Emulation (LANE) MIB
  • Cisco-AAL5-MIB
  • DS3/E3 CISCO-ATM-IF-PHYS-MIB
Product Name
DS3 ATM Network Module
Product Type
Network Module
Compatibility
  • Cisco 2600 Series
  • Cisco 2600XM Series
  • Cisco 2800 Series
  • Cisco 2691
  • Cisco 3620
  • Cisco 3640
  • Cisco 3660
  • Cisco 3725
  • Cisco 3745
  • Cisco 3825
  • Cisco 3845
Shipping Weight
2.0 lb
Interfaces/Ports
1 x DS-3
Application/Usage
Data Networking
Connectivity Media
75-ohm Coaxial
Data Transfer Rate
44.74 Mbps DS-3
Interfaces Details
1 x BNC Duplex DS-3
Weight (Approximate)
2.00 lb Maximum
Additional Information
  • Refurbished
  • No Returns
  • 1024 maximum simultaneous Virtual Connections (VCs)
  • 8 bits of VPI (VPI range 0-256), 10 bits of VCI (VCI range 0-1024)
  • Permanent Virtual Circuits (PVCs) and Switched Virtual Circuits (SVCs)
  • PLCP and HEC cell delineation support
  • Operations and Management (F5 OAM) cell support
  • LANE 2.0 support
  • ILMI 1.0 support
  • IETF PPP over ATM support
  • IP-to-ATM Class-of-Service (CoS) Mapping Feature
  • Multiprotocol Label Swapping (MPLS) VPN support
  • MPOA Client and Server
  • Next Hop Routing Protocol (NHRP)
  • On-line Insertion and Removal (OIR) on 3660
  • Permanent Virtual Path (PVPs) support
  • FRF.5/8 Interworking
