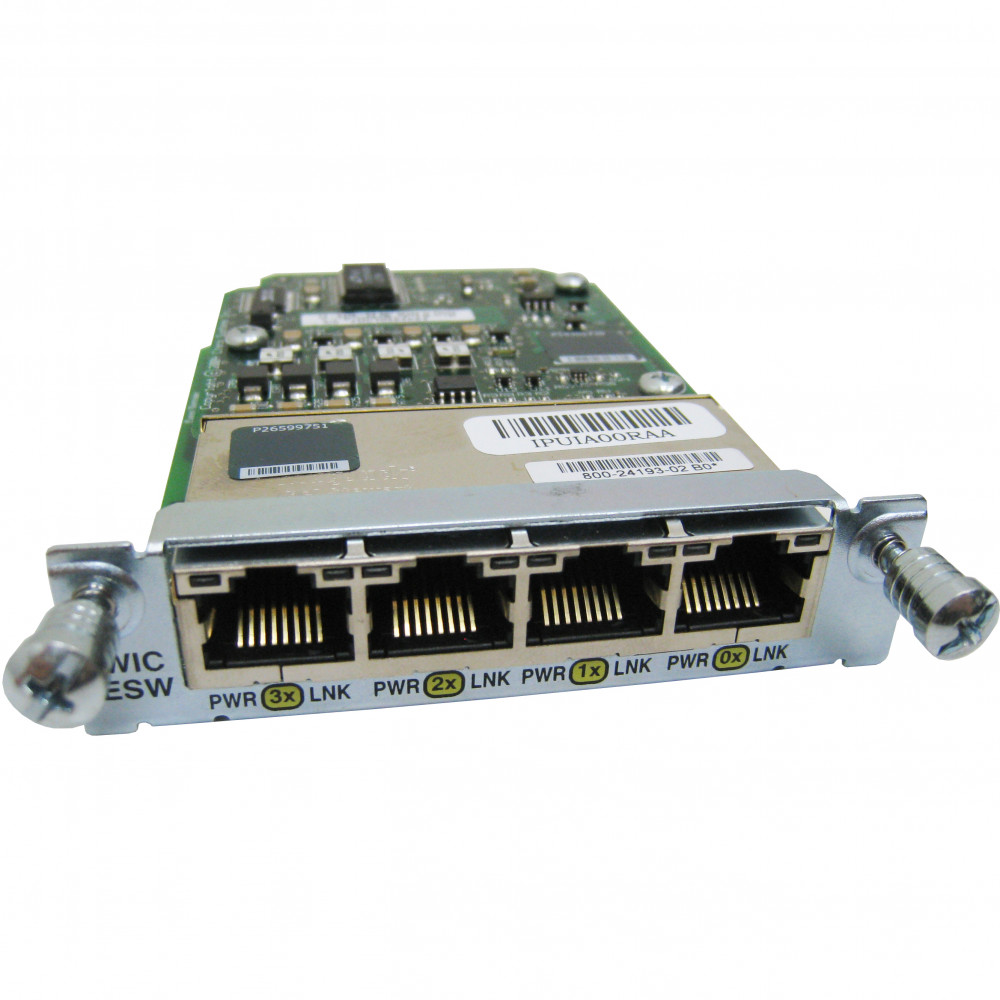

Cisco HWIC-4ESW-POE

4-Port Ethernet Switch HWIC with Power Over Ethernet

In Stock
US $75.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The 4-port Cisco EtherSwitch 10/100 high-speed WAN interface card (HWIC) supported on the Cisco 2800 and Cisco 3800 series integrated services routers offer small-to-large-size businesses and enterprise branch office customers the option to integrate switching and routing in one device. This combination offers ease of configuration, deployment, and management while using the powerful characteristics of Cisco routing and Cisco Catalyst switching features. The Cisco EtherSwitch HWIC with the optional internal chassis provides IP phone power and phone discovery for IP phones. In addition, the Cisco EtherSwitch HWIC supports separate VLAN configuration for IP phones. The auxiliary VLAN feature allows network administrators to segment phones into separate logical networks, even though the data and voice infrastructures are physically the same. The phone discovery feature allows the Cisco 4-port EtherSwitch HWIC to automatically detect the presence of an IP phone and supply inline power.

Specifications

Humidity
  • 10% to 85% Non-condensing Operating
  • 5% to 95% Non-condensing Non-operating
Protocols
  • TCP/IP
  • SNMP v1
  • SNMPv2
  • SNMPv3
  • Telnet
  • RMON
  • TFTP
  • IGMP
  • NTP
  • STP
  • VTP
  • CDPv1
  • CDPv2
  • PPP
  • EAP
  • OSPF
  • HSRP
Management
  • CiscoWorks network management software
  • SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management
  • Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
  • Switched Port Analyzer (SPAN) port can mirror traffic from one or many ports to another port for monitoring all nine RMON groups with an RMON probe or network analyzer
  • Response Time Monitoring (RTTMON) MIB allows users to monitor network performance between the HWIC switch and a remote device
  • Virtual LAN
Temperature
  • 32°F (0°C) to 104°F (40°C) Operating
  • -4°F (-20°C) to 149°F (65°C) Non-operating
Product Name
4-Port Ethernet Switch HWIC with Power Over Ethernet
Product Type
HWIC
Daughter Cards
4-port inline power module (ILPM-4=)
Shipping Weight
1.5 lb
Interfaces/Ports
4 x 10/100Base-TX
Application/Usage
Wide Area Network
Security Features
802.1X Port-based Network Access Control
Status Indicators
  • Link status
  • Inline power
Connectivity Media
  • Category 3 UTP 10Base-T
  • Category 4 UTP 10Base-T
  • Category 5 UTP 10/100Base-TX
Data Transfer Rate
  • 10 Mbps Ethernet Half/Full-duplex
  • 100 Mbps Fast Ethernet Half/Full-duplex
Interfaces Details
4 x RJ-45 10/100Base-TX Auto-sensing/Auto-negotiating/Auto MDI/MDI-X
Weight (Approximate)
3.81 oz
Additional Information
  • Operating Altitude: derate 1.5°C per 1000 feet
