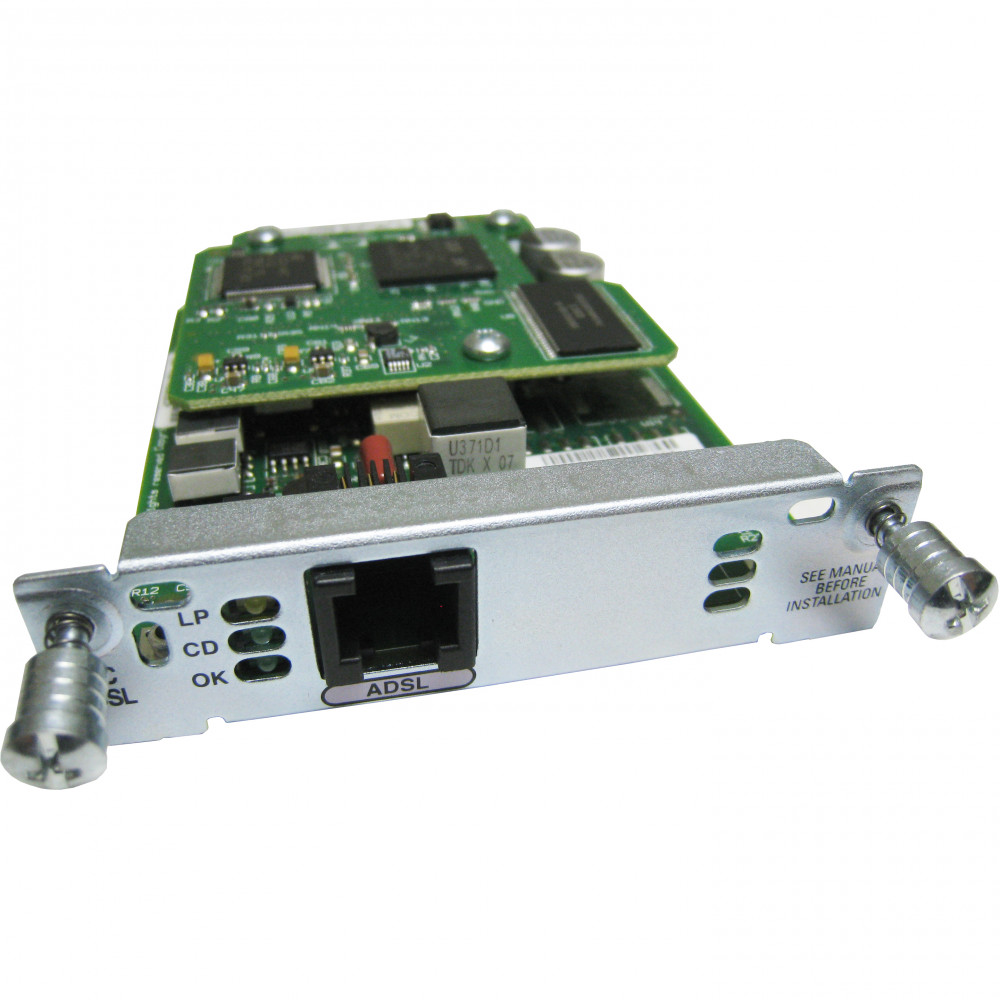

Cisco HWIC-1ADSL

1-port ADSLoPOTS HWIC

In Stock
US $50.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days


Twitter Reddit Facebook

Information

The new ADSL HWIC provide 1-port ADSL connectivity to a WAN. This HWIC, combined with the Cisco 1841 integrated services router (ISR) and the Cisco 2800 and 3800 series integrated services routers (ISRs), provide high-speed digital data transmission between customer premises equipment (CPE) and a central office. This enables service providers and resellers to offer additional services by supporting features for business-class security, voice integration, differentiated classes of service (CoS), and managed network access with Cisco IOS Software.

Specifications

Dimensions
0.8" Height x 3.1" Width x 4.7" Depth
Management
Supports IP quality of service (QoS)
Product Name
1-port ADSL High-Speed WAN Interface Card
Product Type
HWIC
Shipping Weight
1.5 lb
Interfaces/Ports
1 x ADSL WAN
Application/Usage
Wide Area Network
Connectivity Media
Twisted Pair
Data Transfer Rate
  • 8 Mbps ADSL Downstream
  • 819.20 Kbps ADSL Upstream
  • 12 Mbps ADSL2 Downstream
  • 1 Mbps ADSL2 Upstream
  • 24 Mbps ADSL2+ Downstream
  • 1.50 Mbps ADSL2+ Upstream
Interfaces Details
1 x RJ-11 ADSL WAN
Weight (Approximate)
3.04 oz
Additional Information
  • Supports ADSL over basic telephone service with Annex A ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+)
  • Supports reach-extended ADSL2 standard (G.992.3) Annex L
  • Complies with ANSI T1.413 issue 2
  • Supports ATM Adaptation Layer 5 (AAL5) services
  • Supports ATM CoS features constant bit rate (CBR), non-real-time variable bit rate (VBR-nrt), real-time variable bit rate (VBR-rt), and unspecified bit rate (UBR)
  • Supports up to 23 virtual circuits per HWIC
  • Supports Dying Gasp function
  • Interoperates with third-party DSLAMs
