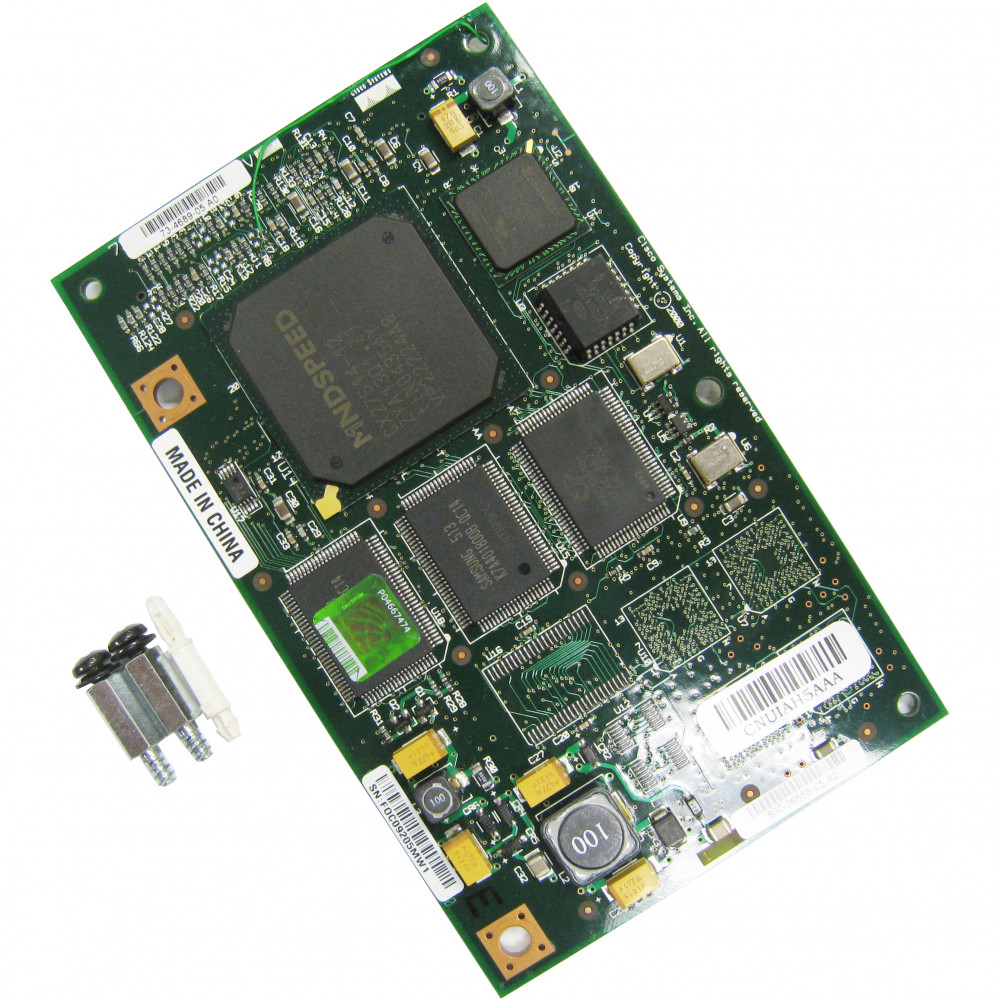

Cisco AIM-VOICE-30

30 Channel Voice/Fax AIM

In Stock
US $85.00
Add to cart Make offer
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 1-2 Days
What's Included
(1) Mounting Kit


Twitter Reddit Facebook

Information

The AIM-VOICE-30 AIM supporting Voice/Fax DSP Module contains DSPs that can support up to 30 medium-complexity or 16 high-complexity voice channels when used with the Voice/WAN (VWIC-MFT) interface card. All DSP voice features such as voice activity detection, echo cancellation, and a full suite of PBX/PSTN signaling protocols are supported. When the AIM-VOICE-30 is used in a Cisco 2600, 2600XM, 2691, 3660, or Cisco 3700 Series Router, users can use voice over IP (VoIP) or voice over Frame Relay (VoFR) while freeing up the network module slot for other applications. When used with one of the various ATM network modules, voice over ATM (VoATM) and VoIP over ATM are supported.

Specifications

Dimensions
0.3" Height x 3.3" Width x 5.3" Depth
Management
Quality Of Service (QoS)
Product Name
AIM-VOICE-30 AIM supporting Voice/Fax DSP Module
Product Type
Advanced Integration Module
Application/Usage
Voice
Additional Information
  • T1 channel associated signaling (CAS)
  • E1 channel associated signaling (CAS)
  • T1 Primary Rate Interface signaling (network side and user side)
  • E1 Primary Rate Interface signaling (network side and user side)
  • T1 QSIG signaling
  • E1 QSIG signaling
  • Channelized T1/E1 interfaces to PBX/PSTN (via VWIC-MFT)
  • Provides simultaneous support for multiple voice channels and ATM IMA trunks
  • Medium complexity Codec types of G.711 a-law, G.711 u-law, G.726-32K, G.726-24K, G.726-16K, G.729A, and G.729AB
  • High complexity Codec types of G.723.1 (all variations) G.728, G.729, G.729B and GSM-FR
  • Support for up to 1024 AAL5 VCs for data/voice features
  • Support for up to1024 AAL2 VCs with up to 255 sub-channels each for voice per AIM
