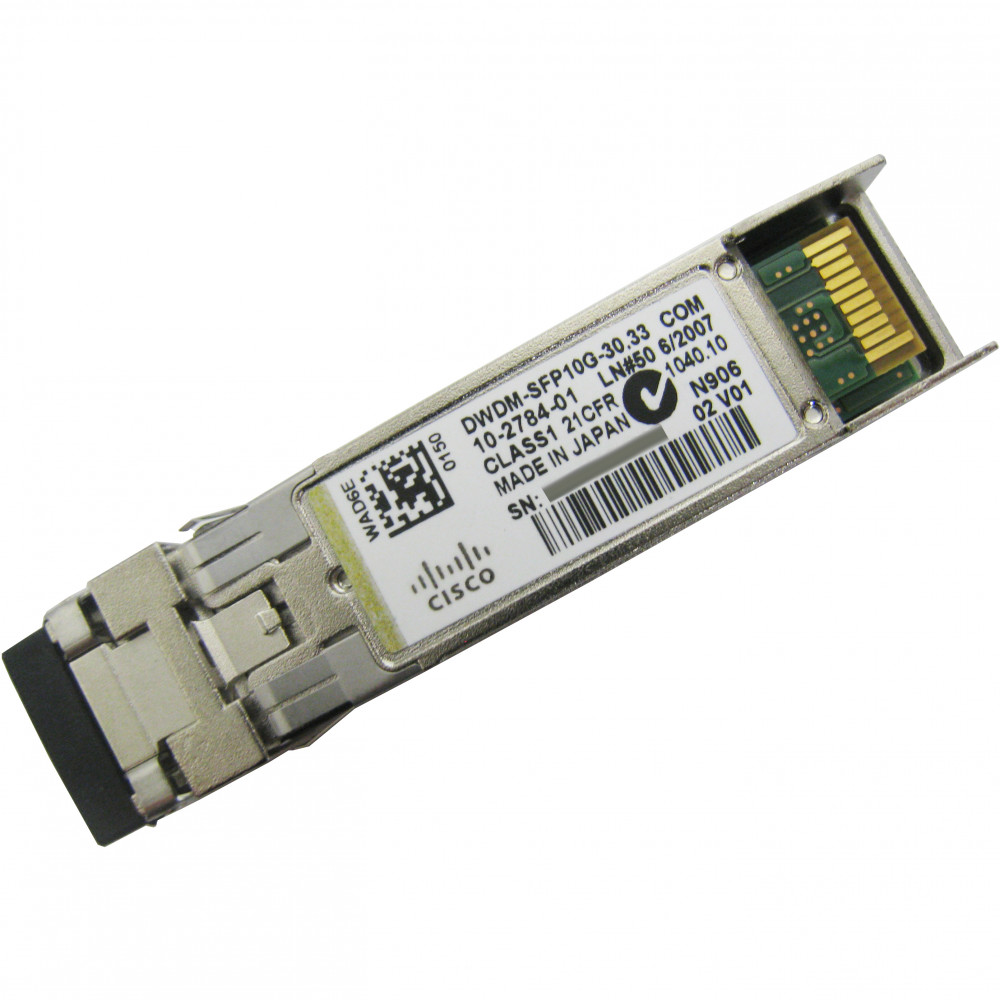

Cisco DWDM-SFP10G-30.33

10GBASE-DWDM 1530.33 nm SFP10G (100-GHz ITU grid), Original Cisco

In Stock
US $1,000.00
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

The Cisco DWDM-SFP10G-30.33 is a Cisco Dense Wavelength-Division Multiplexing (DWDM) Small Form-Factor Pluggable (SFP) transceiver module. It is designed to provide high-speed data connectivity over long distances in optical networks. The "30.33" in the product name refers to the specific wavelength channel that this transceiver operates on. In DWDM systems, multiple wavelengths or channels are used to transmit data simultaneously over a single optical fiber. Each channel is assigned a specific wavelength, and the DWDM-SFP10G-30.33 operates on the 30.33 wavelength. This transceiver supports data rates of up to 10 Gbps (Gigabits per second) and can transmit data over distances of up to 80 kilometers (49.7 miles) in DWDM networks. It uses a standard SFP form factor, making it compatible with a wide range of Cisco networking devices that support SFP transceivers. Overall, the Cisco DWDM-SFP10G-30.33 is a specific model of SFP transceiver that enables high-speed, long-distance data transmission in DWDM optical networks.

Specifications

Duplex
Full
Data Rate
10 Gbps
Fiber Type
Single-mode
Wavelength
1530.33 nm
Hot Swappable
Yes
Connector Type
LC duplex
Interface Type
SFP+
Max Cable Distance
80 km
Operating Temperature Range
-5°C to 70°C
Optical Monitoring (Temperature)
Yes
Optical Monitoring (Optical Power)
Yes
Optical Monitoring (Receiver Power)
Yes
Optical Monitoring (Laser Bias Current)
Yes
Digital Optical Monitoring (DOM) Support
Yes
Optical Monitoring (Transmitter Voltage)
Yes
