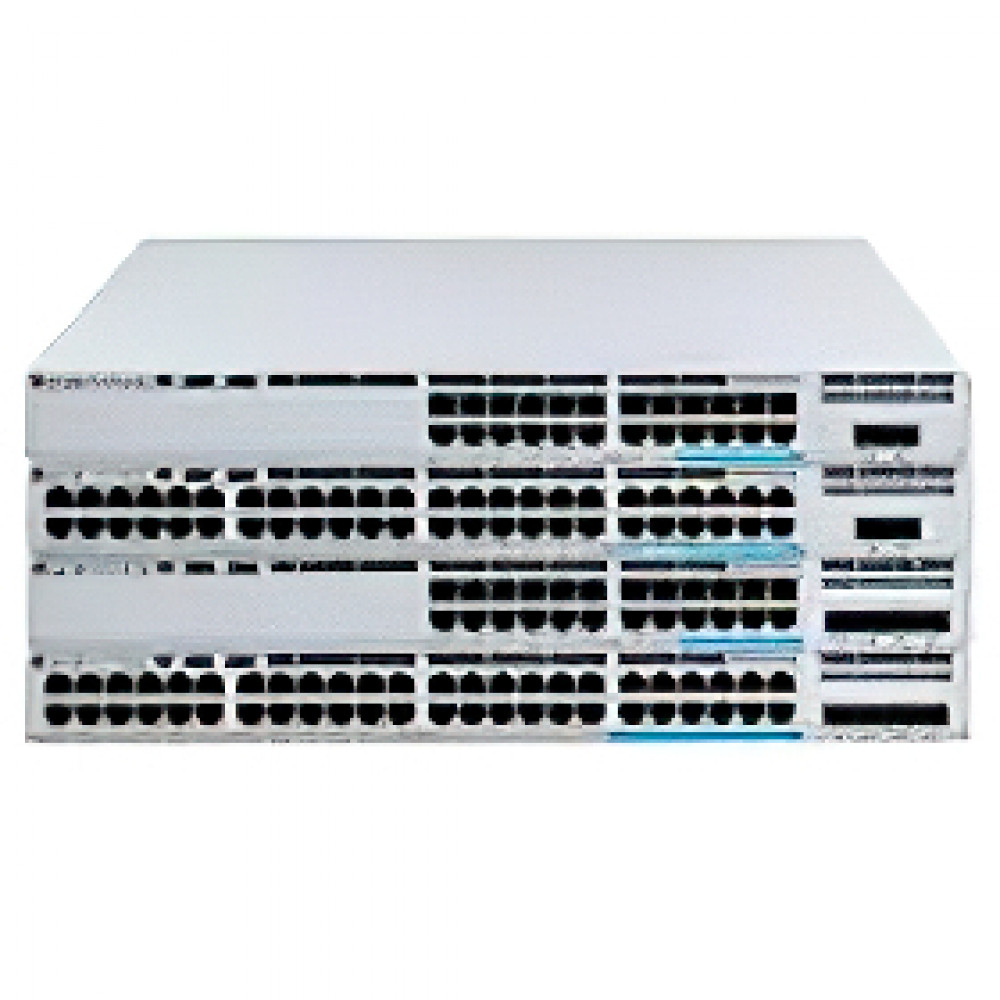

Cisco C9200-48P-CX-A

Catalyst 9200 48-port PoE+, CX, Advantage

Product Highlights
Family
Switches
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days


Twitter Reddit Facebook

Information

The Cisco C9200-48P-CX-A is a model of the Cisco Catalyst 9200 Series of switches. It is a fixed-configuration, stackable switch designed for enterprise networks. The "48P" in the model name indicates that it has 48 Ethernet ports, and the "CX" signifies that it is part of the Catalyst 9200 Series. The "A" at the end denotes that it is an advanced version of the switch. The Cisco C9200-48P-CX-A switch offers Power over Ethernet (PoE) capabilities, meaning it can provide power to connected devices such as IP phones, wireless access points, and surveillance cameras through the Ethernet cables. It supports various network protocols and features advanced security, quality of service (QoS), and management capabilities. Overall, the Cisco C9200-48P-CX-A is a high-performance switch suitable for medium to large-sized organizations that require reliable and scalable network connectivity.

Specifications

Ports
48
Weight
13.23 lbs
Stackable
Yes
Dimensions
  • Depth
    • 17.5 inches
  • Width
    • 17.5 inches
  • Height
    • 1.73 inches
Forwarding rate
261.9 Mpps
Stack bandwidth
160 Gbps
VLANs supported
4096
Maximum PoE power
740W
Switching capacity
176 Gbps
MAC address table size
32,000 entries
Redundant power supply
Yes
Power over Ethernet (PoE)
Yes
Hot-swappable power supply
Yes
