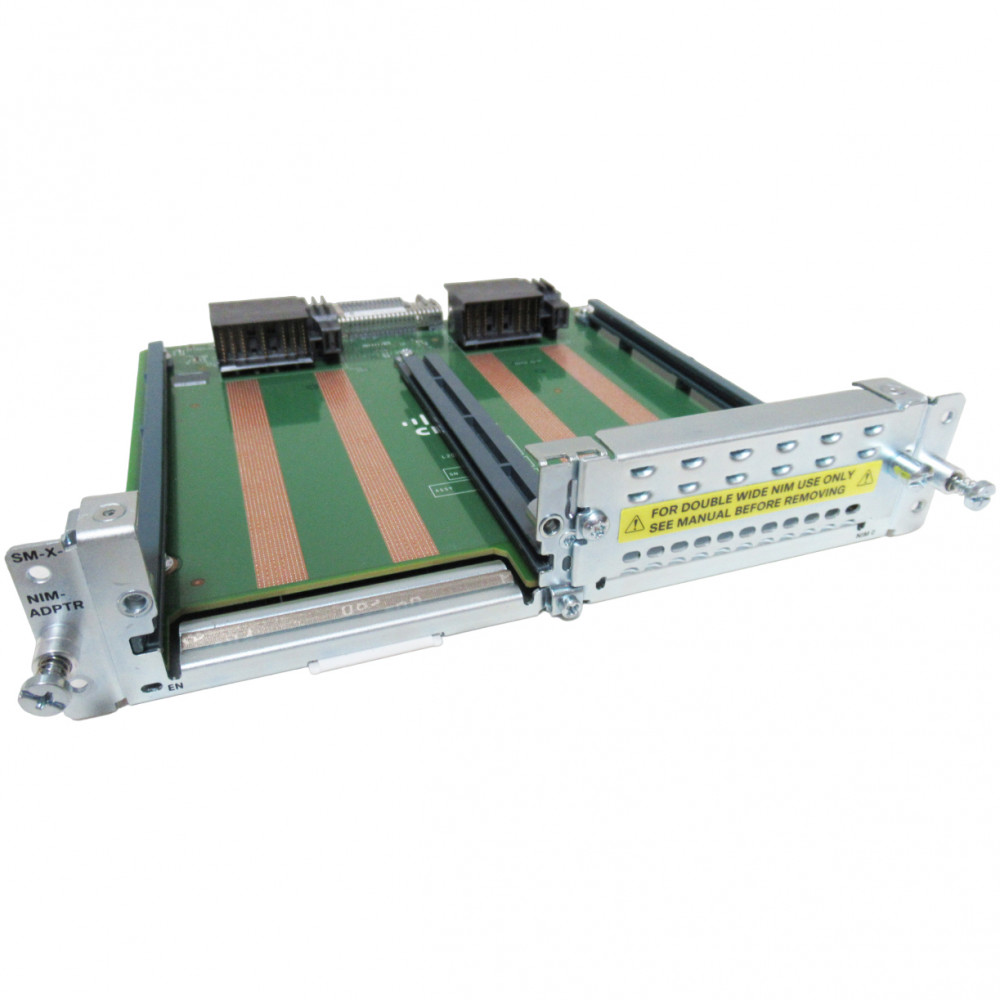

Cisco SM-X-NIM-ADPTR
SM-X Adapter for one NIM module for Cisco 4000 Series ISR
In Stock
US $100.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 1-2 Days
Twitter Reddit Facebook
Information
The Cisco SM-X-NIM-ADPTR is an adapter module designed for use with Cisco 4000 Series Integrated Services Routers (ISRs). It is used to convert the Service Module (SM) slot on the router into a Network Interface Module (NIM) slot.
The adapter allows users to install NIMs in the SM slot, thereby expanding the router's capabilities. NIMs are modular components that provide various networking functions such as Ethernet connectivity, WAN connectivity, voice services, and more. By using the SM-X-NIM-ADPTR, users can take advantage of the wide range of NIM options available for the Cisco 4000 Series ISRs.
Specifications
Weight
0.33 lb (0.15 kg)
Dimensions
3.08 x 7.09 x 0.82 in. (7.82 x 18.01 x 2.08 cm)
Redundancy
No
Hot-Swappable
Yes
Power Consumption
4W
Relative Humidity
5 to 85% non-condensing
Storage Temperature
-40 to 158°F (-40 to 70°C)
Operating Temperature
32 to 104°F (0 to 40°C)
MTBF (Mean Time Between Failures)
Not specified
Supported Enhanced Service Modules (SM-Xs)
Yes
Supported Network Interface Modules (NIMs)
Yes
Supported Enhanced Service Module (SM-X) Slots
1
Supported Network Interface Module (NIM) Slots
1
