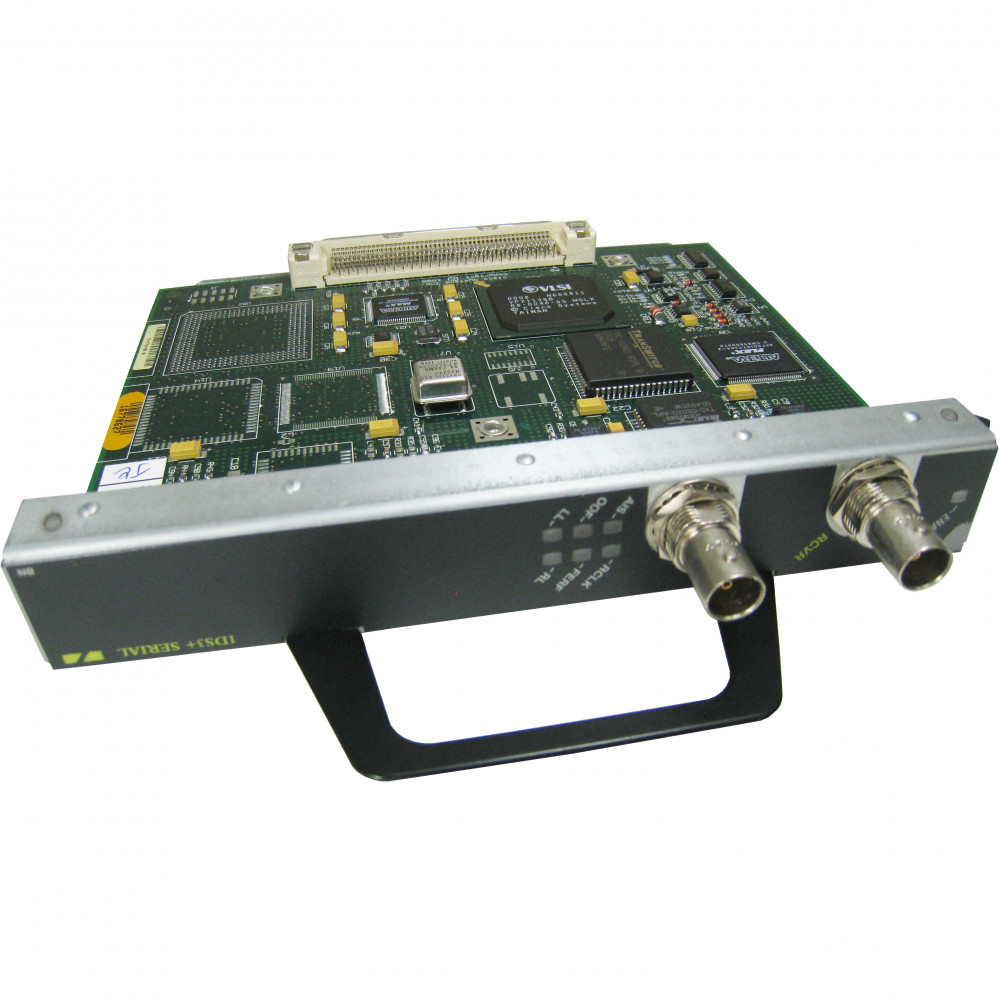

Cisco PA-T3+
1 Port T3 Serial Port Adapter Enhanced
In Stock
US $55.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
Cisco's PA-T3+ Packet-over-DS3 port adapter for the Cisco 7200, Cisco 7500, and Cisco 7400 Series routers offer high-density, highly manageable DS3 line termination. Demand for high- capacity corporate backbones, high- speed access to the global Internet, and trunking connections for service provider internetworking has led to growth in clear-channel DS3 con- nections that has outpaced all other types and speeds of leased lines. This growth has placed tremendous strains on the abilities of service providers and network managers to provision and manage new DS3 connections.
Specifications
Humidity
10% to 90% Non-condensing Relative Humidity
Protocols
- Frame Relay
- HDLC
- PPP
Management
- Management Information Base (MIB) attributes are readable and writable across ILMI through use of the SNMP
- The one-port PA-T3+ supports all MIB-II (RFC 1213) and the DS3 interface MIB (RFC 1407)
Temperature
- 32°F (0°C) to 104°F (40°C) Operating
- -4°F (-20°C) to 149°F (65°C) Storage
Product Name
Serial Port Adapter
Product Type
Port Adapter
Compatibility
- Catalyst 6000 family FlexWAN module
- VIP in all Cisco 7000 series and Cisco 7500 series routers
- Cisco 7200 series routers
- Cisco 7401ASR router
Interfaces/Ports
2 x T3 WAN
Application/Usage
Data Networking
Status Indicators
- RCLK
- FERF
- OOF
- AIS
- Remote Loop
- Local Loop
- One enabled LED
Connectivity Media
75-ohm Coaxial
Data Transfer Rate
44.74 Mbps T3 Half/Full-duplex
Distance Supported
- 225 ft 728A or Equivalent Coaxial Full-duplex
- 450 ft 734A or Equivalent Coaxial Full-duplex
Interfaces Details
1 x BNC Female T3 Full-duplex WAN
Additional Information
- Integrated data service unit (DSU) functionality
- Support for 16- and 32-bit cyclic redundancy checks (CRCs)
- Support for C-bit, M13, and bypass framing
- Support for DS3 MIB (RFC 1407)
- Support for remote and local loopbacks
- B3ZS line coding
- Scrambling and bandwidth reduction The PA-T3+ supports several types of integrated data service units (DSUs):
- DL3100
- Kentrox
- Larscom
Certifications & Standards
DS3 physical layer:
- ANSI T1.107
- AT&T TR-NWT-00499
Safety:
- UL1950 3rd Edition/CSA C22.2, No.950 (U.S. and Canada)
- AS/NZS 3260 (Australia/New Zealand)
- EN60950/EN41003 (Europe)
- IEC 950 (national deviations)
Emissions:
- FCC Part 15, Class A
- AS/NZS 3548 (Australia/New Zealand)
- EN55022 (CISPR 22) Class B (Europe)
Immunity:
- IEC 1000-4-2 (ESD)
- IEC 1000-4-3 (Radiated)
- IEC 1000-4-4 (Fast Transients)
- IEC 1000-4-5 (Power Line Surge)
- IEC 1000-4-6 (Injected RF)
- IEC 1000-3-2 (Harmonic Distortions)
- ANSI T1.107
- AT&T TR-NWT-00499
Safety:
- UL1950 3rd Edition/CSA C22.2, No.950 (U.S. and Canada)
- AS/NZS 3260 (Australia/New Zealand)
- EN60950/EN41003 (Europe)
- IEC 950 (national deviations)
Emissions:
- FCC Part 15, Class A
- AS/NZS 3548 (Australia/New Zealand)
- EN55022 (CISPR 22) Class B (Europe)
Immunity:
- IEC 1000-4-2 (ESD)
- IEC 1000-4-3 (Radiated)
- IEC 1000-4-4 (Fast Transients)
- IEC 1000-4-5 (Power Line Surge)
- IEC 1000-4-6 (Injected RF)
- IEC 1000-3-2 (Harmonic Distortions)
